astreea IGLOO L PLUS - Page 29

Allen key no.4
M6x10 screws
M6x8 screws
M6x8
screws
M6x8
screws
2 x M6x10
screw
6 x M6x8
screw
1 x left lower panel

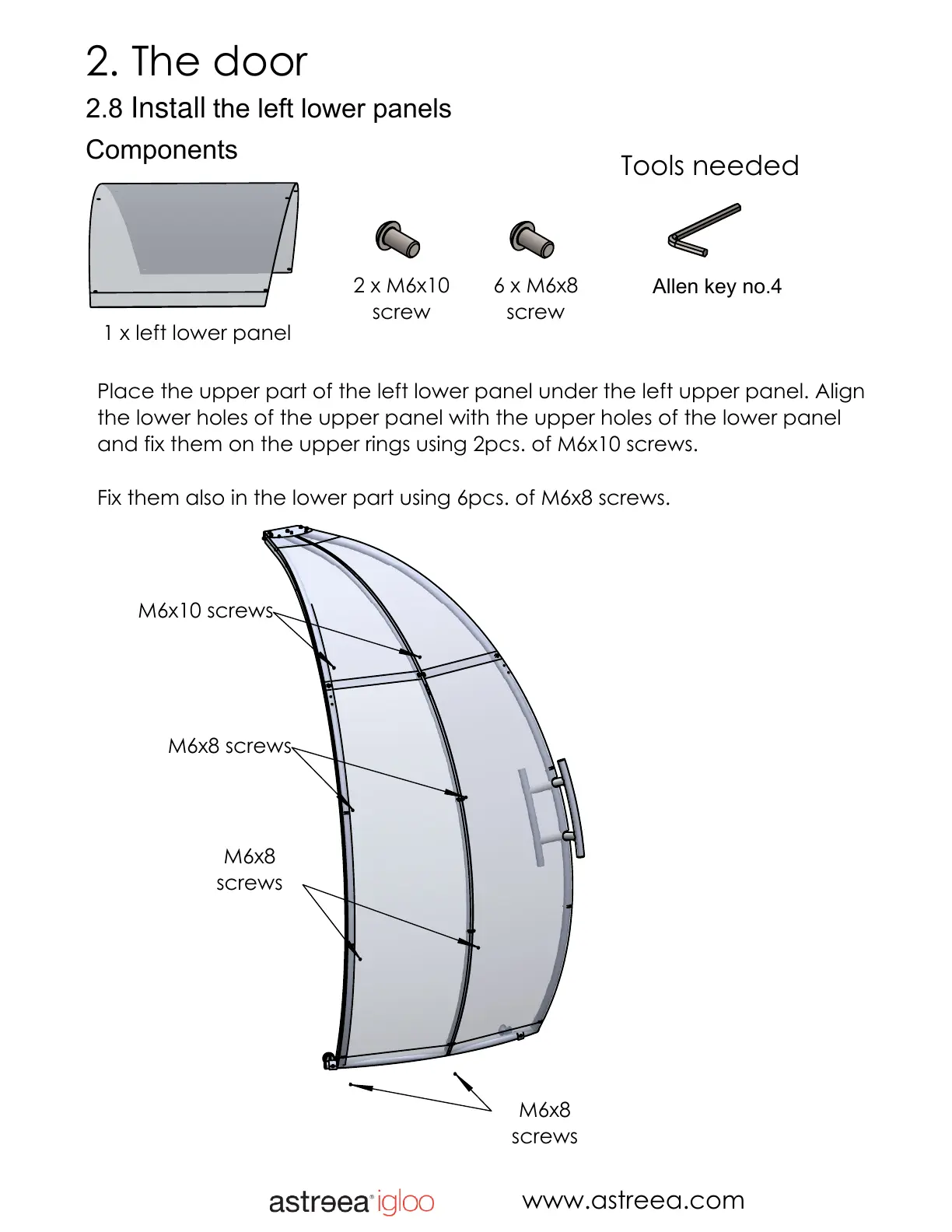

Place the upper part of the left lower panel under the left upper panel. Align
the lower holes of the upper panel with the upper holes of the lower panel
and fix them on the upper rings using 2pcs. of M6x10 screws.
Fix them also in the lower part using 6pcs. of M6x8 screws.
2. The door
2.8 Mount the left lower panels
Components
Tools needed
www.astreea.com
Install
