Allen key no.5
1 x door upper strip
1 x M8 washer
1 x M8 nut

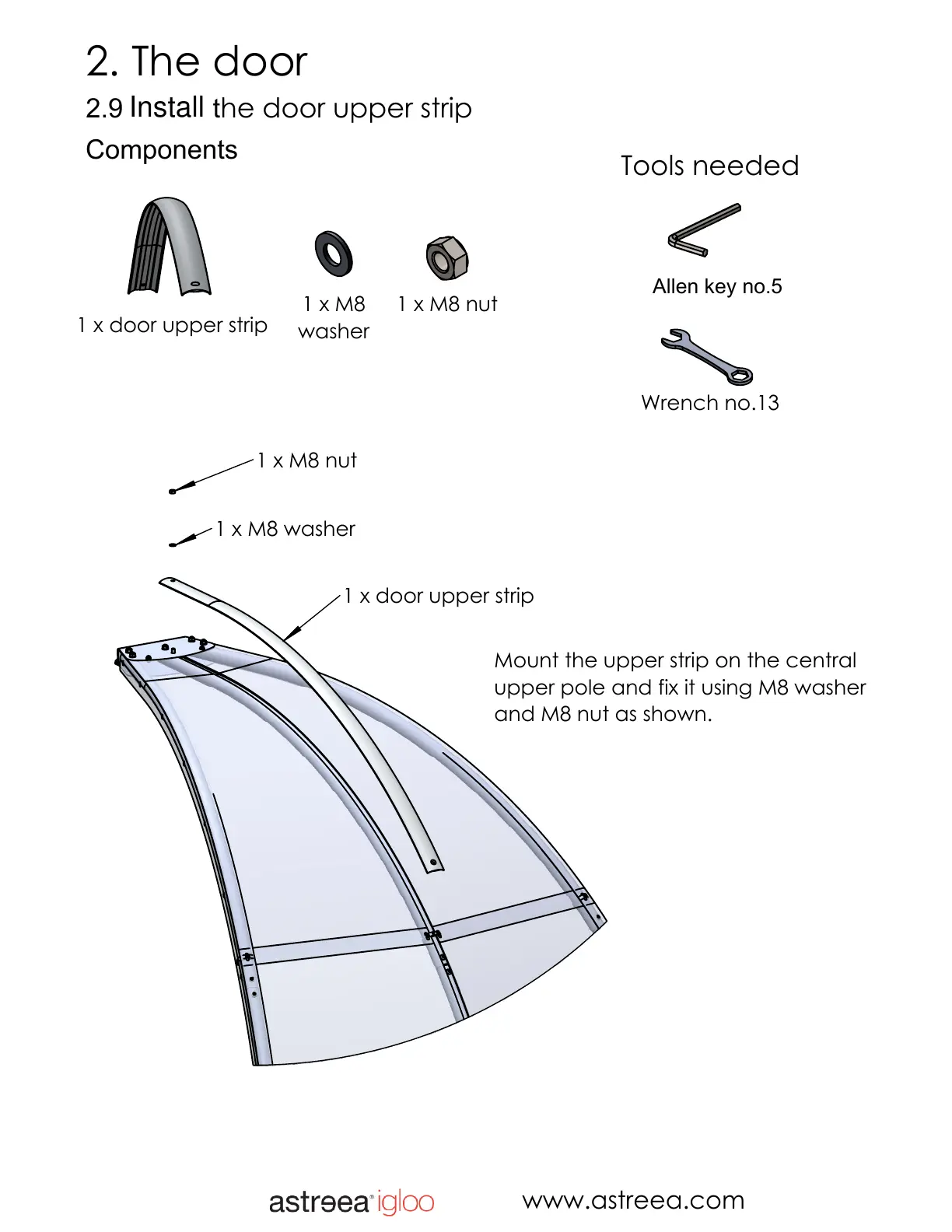

Mount the upper strip on the central
upper pole and fix it using M8 washer
and M8 nut as shown.
Wrench no.13
1 x door upper strip
1 x M8
washer
1 x M8 nut
2. The door
2.9 Mount t
he door upper strip
Components
Tools needed
www.astreea.com
Install
