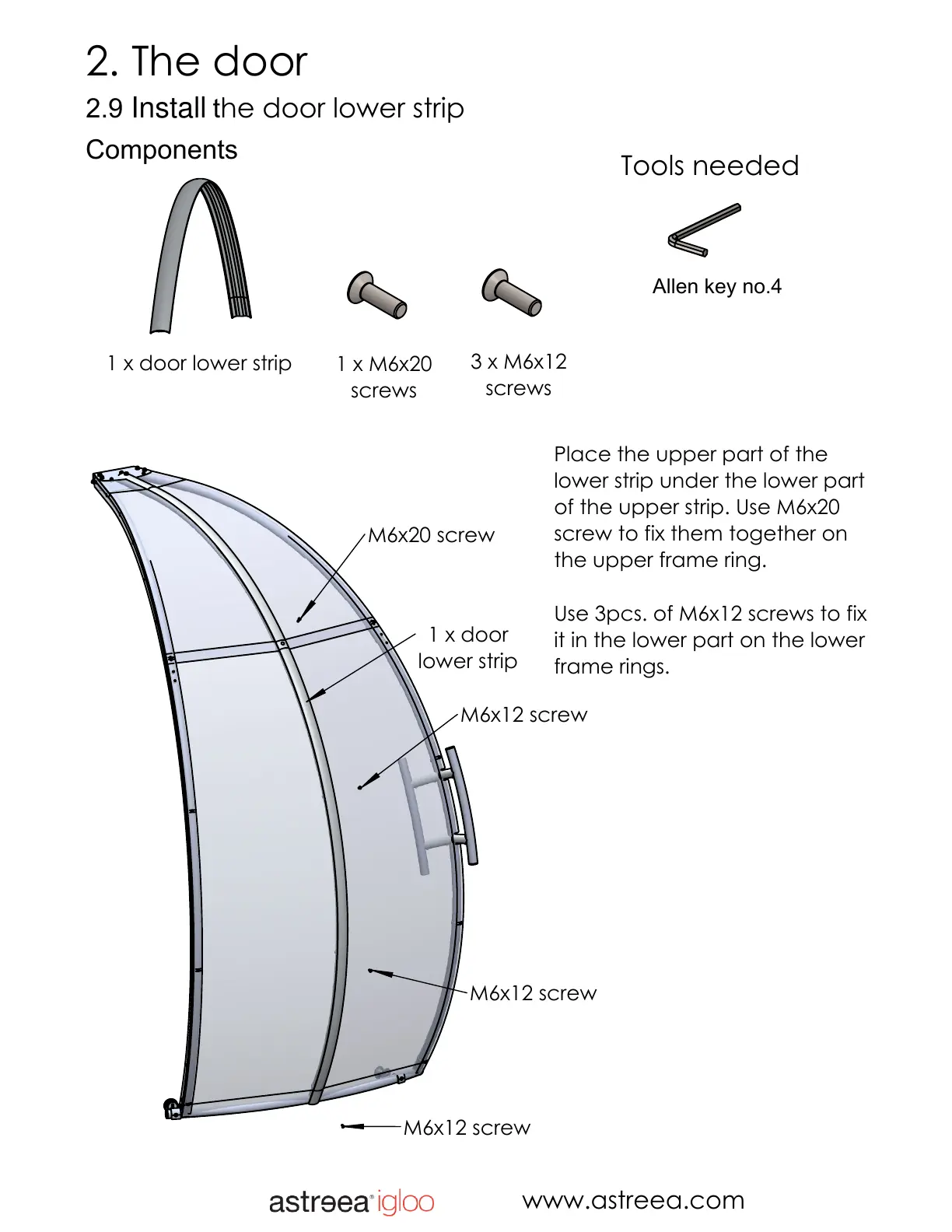

astreea IGLOO L PLUS - Page 31

Allen key no.4
1 x door
lower strip
M6x20 screw
M6x12 screw
M6x12 screw
M6x12 screw
Place the upper part of the
lower strip under the lower part
of the upper strip. Use M6x20
screw to fix them together on
the upper frame ring.
Use 3pcs. of M6x12 screws to fix
it in the lower part on the lower
frame rings.
1 x door lower strip
1 x M6x20
screws
3 x M6x12
screws
2. The door
2.9 Mount t
he door lower strip
Components
Tools needed
www.astreea.com
Install
