A
B
C
door rail
DETAIL A
M8x55
screw
M8 nut
stop plate
DETAIL B
M8x50
screw
locking plate
M8 nut
DETAIL C
M8x55
screw
M8 nut

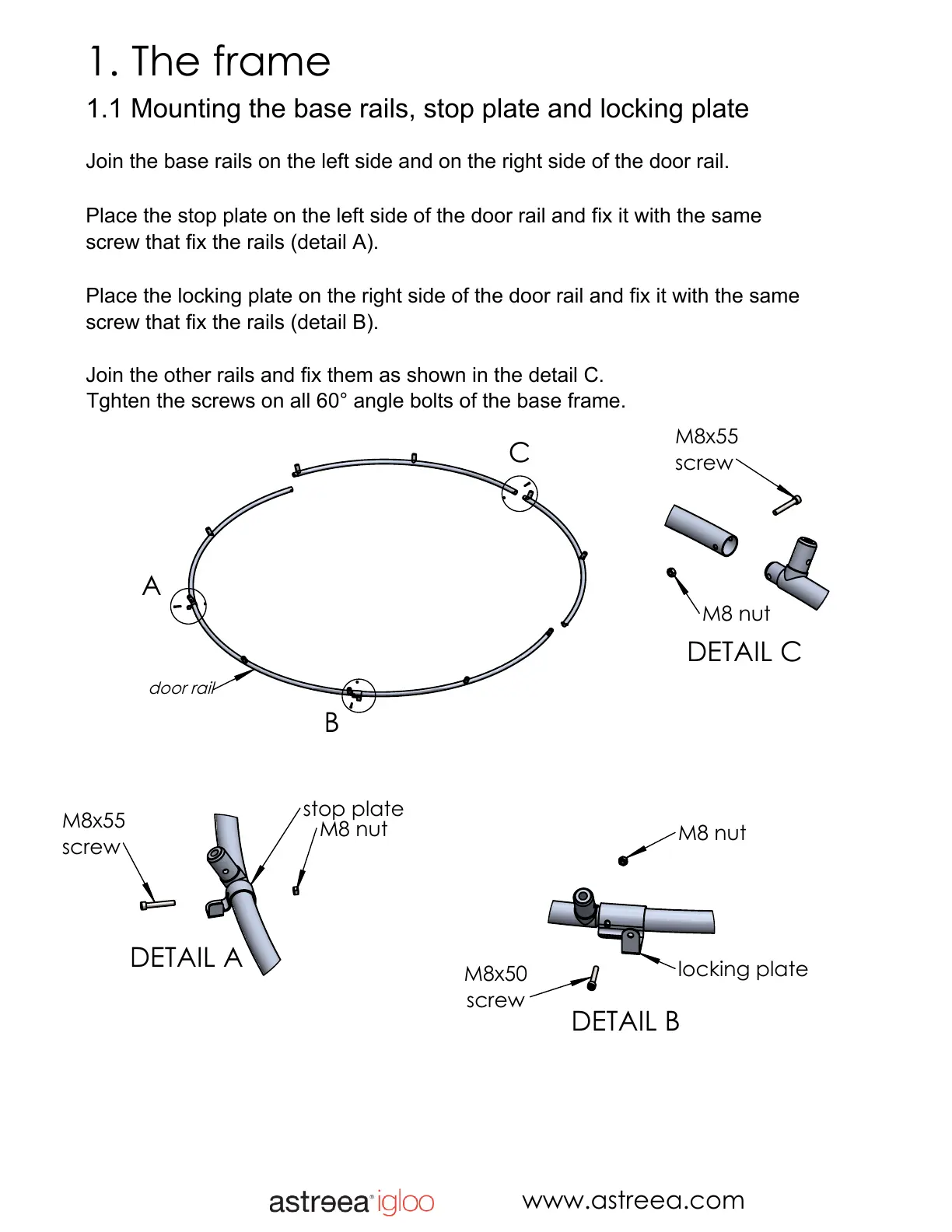

1. The frame
1.1 Mounting the base rails, stop plate and locking plate
Join the base rails on the left side and on the right side of the door rail.
Place the stop plate on the left side of the door rail and fix it with the same
screw that fix the rails (detail A).
Place the locking plate on the right side of the door rail and fix it with the same
screw that fix the rails (detail B).
Join the other rails and fix them as shown in the detail C.
www.astreea.com
Tghten the screws on all 60° angle bolts of the base frame.
