Allen key no.5
Insert 1pcs. of frame ring on the upper pole and 3pcs. on the lower pole.
Join the upper pole with the lower pole and fix it using the M8x25 screw.
Proceed in the same way for all 10 poles.
D
frame
aluminium rings
10 x lower poles 10 x upper poles
40 x frame rings
DETAIL D
M8 x 25 screw
lower pole
upper pole
frame ring

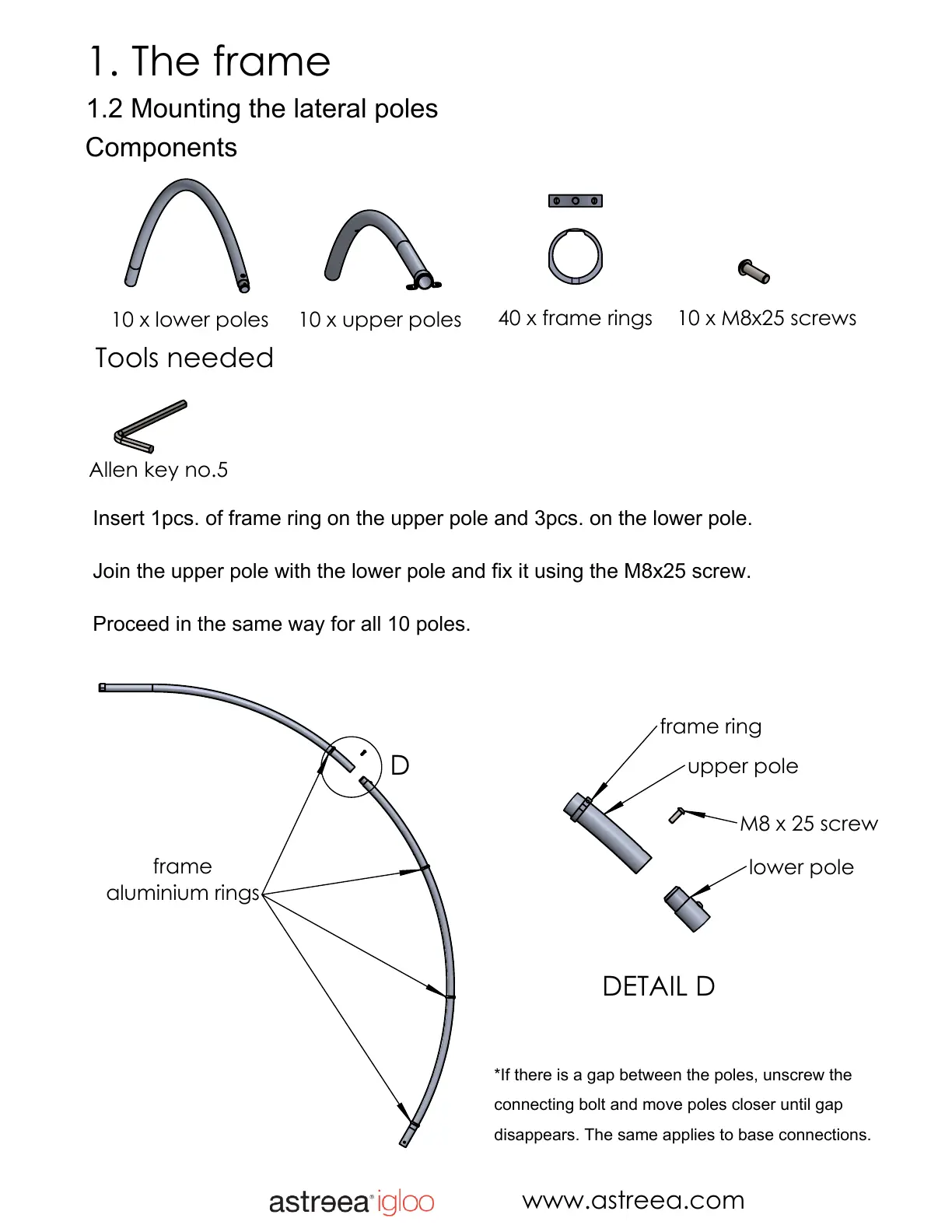

1. The frame
1.2 Mounting the lateral poles
Tools needed
Components
10 x M8x25 screws
www.astreea.com
*If there is a gap between the poles, unscrew the
connecting bolt and move poles closer until gap
disappears. The same applies to base connections.
