2 x M8 nuts
Wrench no.13
Allen key no.5

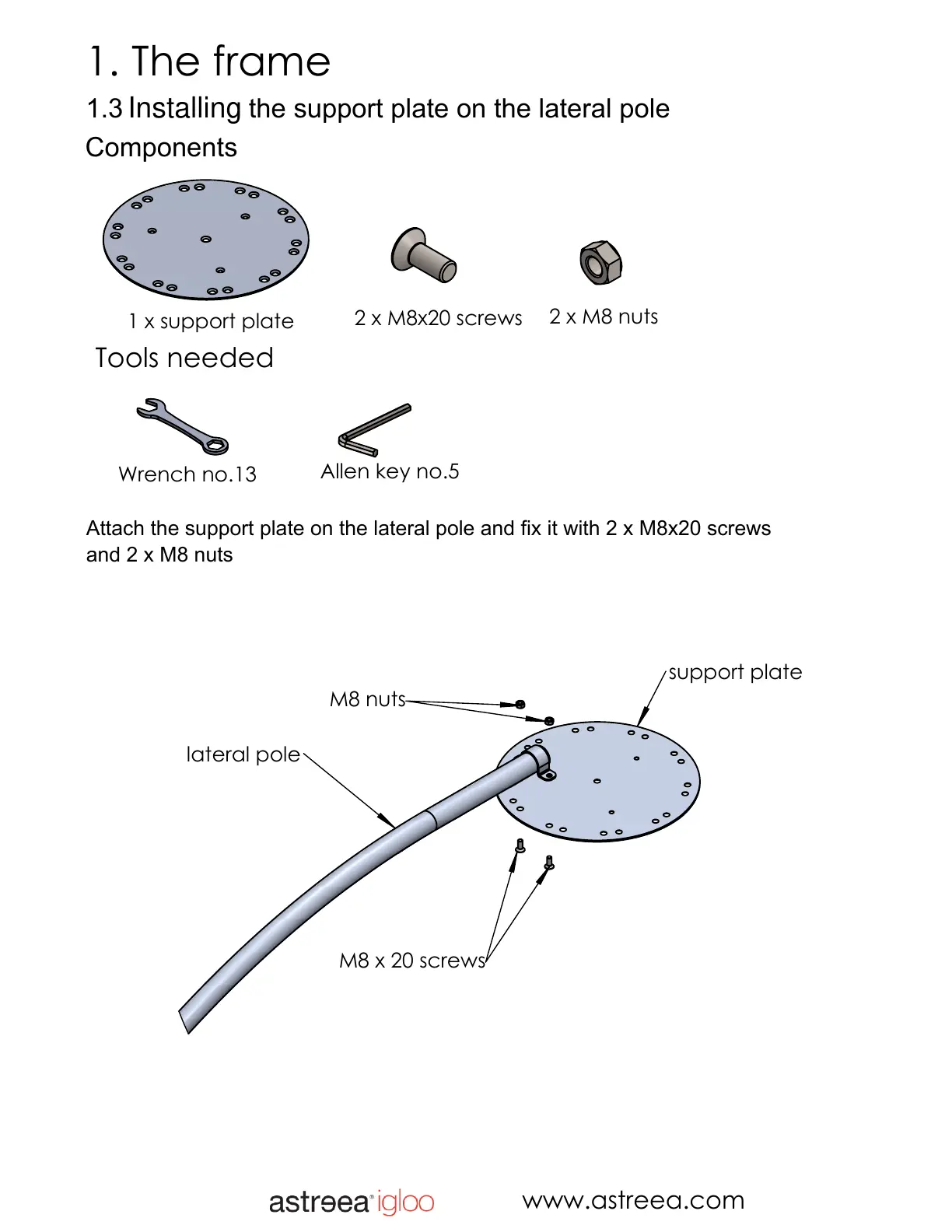

Attach the support plate on the lateral pole and fix it with 2 x M8x20 screws
and 2 x M8 nuts
lateral pole
support plate
M8 x 20 screws
M8 nuts
2 x M8x20 screws
1 x support plate
1. The frame
1.3 Mounting the support plate on the lateral pole
Tools needed
Components
