Astro Pneumatic Tool 78830 - Operation for Hub Removal; Brace Bar Installation; Front Hub Removal View; Caliper Bridge Brace Bar Use

Product Type:Model:
78830
HEAVY DUTY HUB DRUM AND
ROTOR PULLER KIT
Page 2

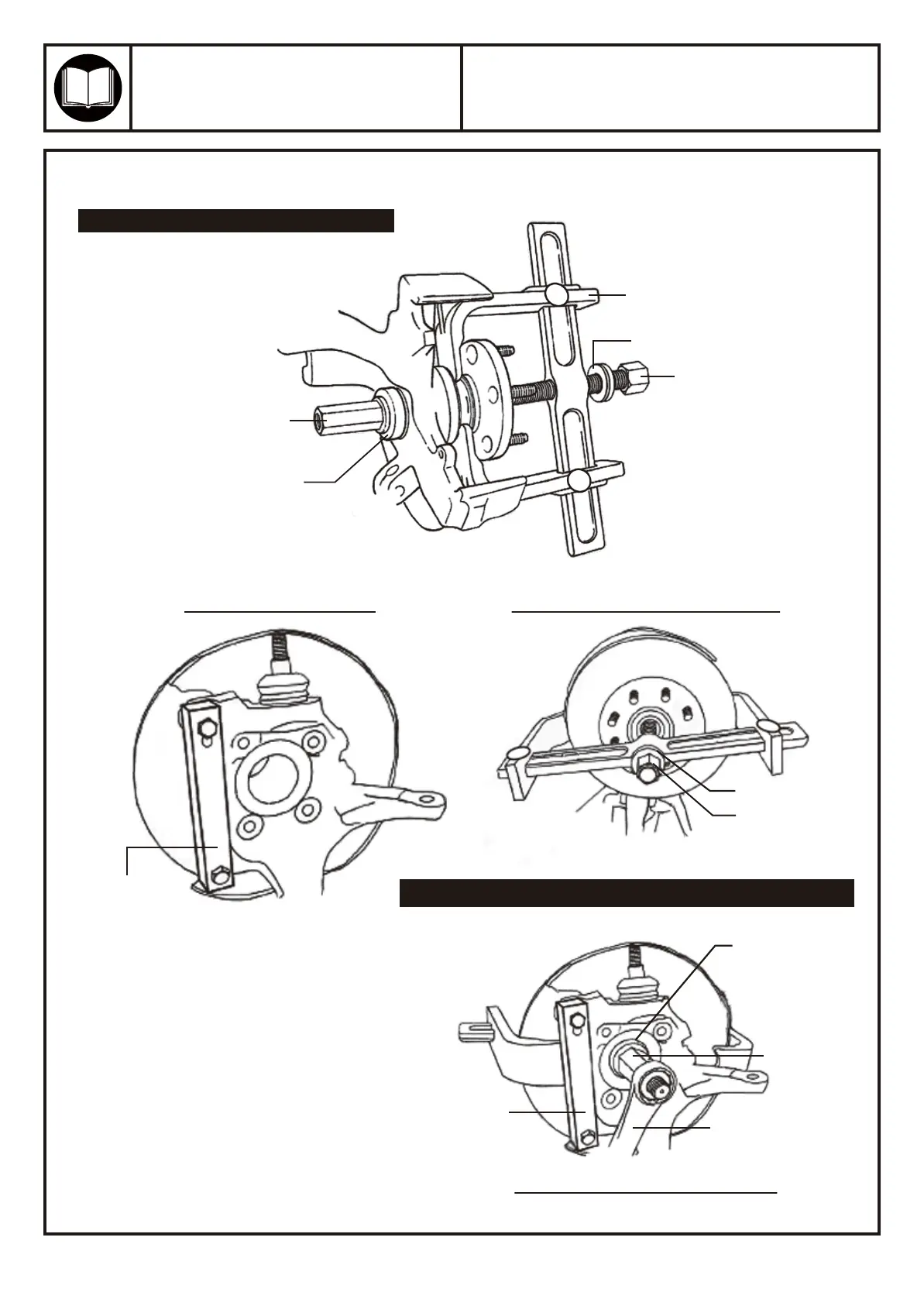

OPERATION FOR HUB REMOVAL
TOOL SET-UP FOR HUB PULLING
When A Caliper Bridge Brace Bar (Avail. Sep.) Is Necessary
Appropriate
Hub Puller Adapter
78830-04
78830-03
78830-11
78830-11
78830-04
Appropriate
Adapter
Brace Bar Installation
Front Hub Removal Rear View
Front Hub Removal Front View
78830-01
78830-01
Notes: In rare cases (e.g. some Honda)
where there is not adequate solid and
flat area surrounding the hub to brace
the hub puller arms against,
the 78830CBA Caliper Bridge Brace
Bar Assembly (available separately)
is an option on these applications.
Use the 78830CB to span the caliper
brackets (5.0" and 5.5" hole distance)
creating a flat surface to brace against
when pulling the hub.
Caliper Bridge
Brace Bar
Caliper Bridge
Brace Bar
1.25" wrench
