ASTRO A50 - Home Theater Connectivity; Optical Pass-Through Feature; AV Receiver Connection; Television Optical Connection

ASTRO GAMING
CONFIDENTIAL 2013
EYES ONLY
010185
ASTRO AUDIO
SUPERIOR
TOURNAMENT
COMPETITIVE
System Configuration // HOME
Optical pass-through gives you the ability to output the same optical signal your MixAmp™
Transmitter is receiving, allowing you to add an additional peripheral device without having to
adjust any cables.
To Connect:

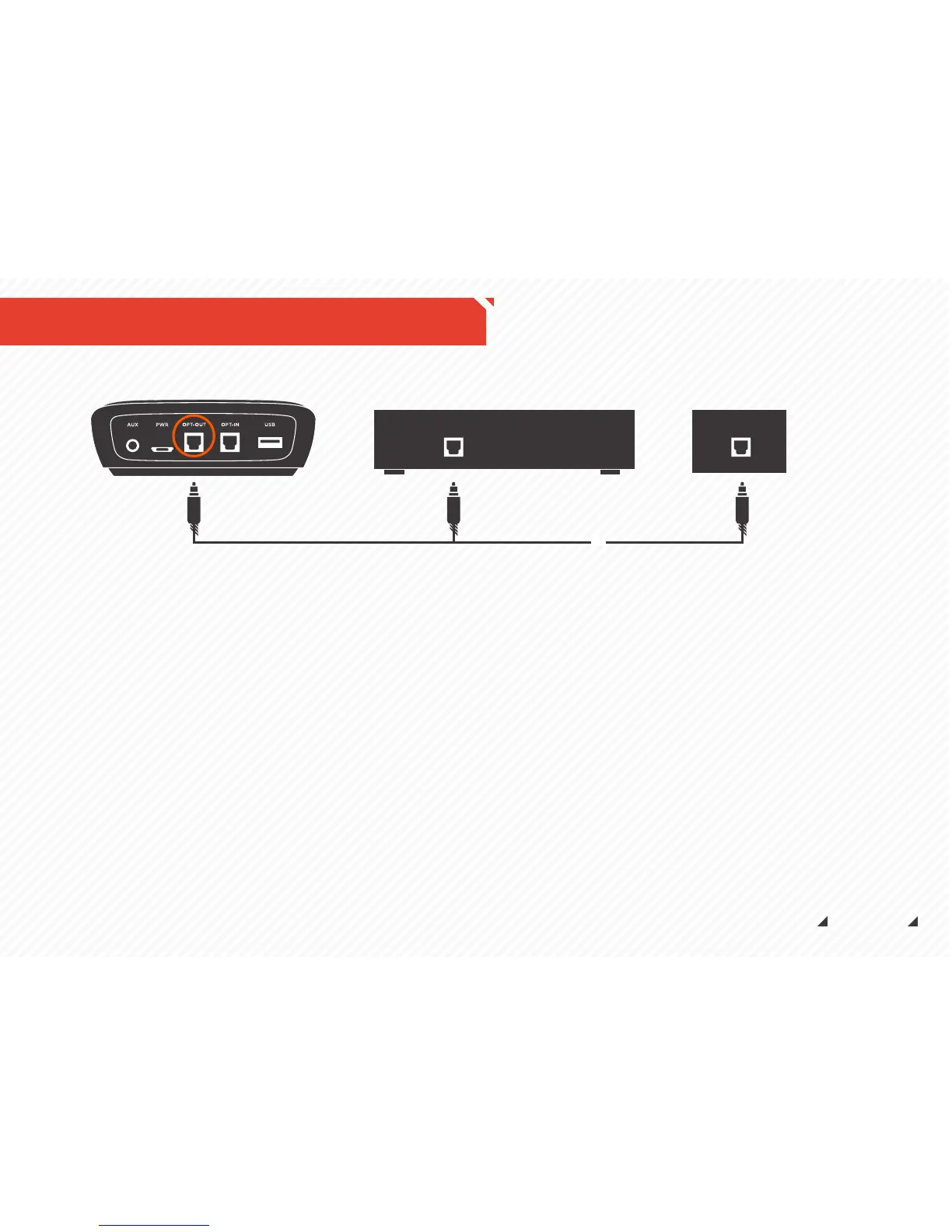

OPT-OUT to AV Receiver: Connect optical cable from the OPT-OUT port on the MixAmp™ Transmit-
ter to the input on your AV Receiver.
Television Setup:
If your television comes equipped with optical pass-through functionality, simply connect the
optical output on your television to the OPT-IN port on your MixAmp™ Transmitter, bypassing the
optical port on your Xbox 360.
OPT-INOPT-IN
AV Receiver TV
OR
