1.9 Connectors

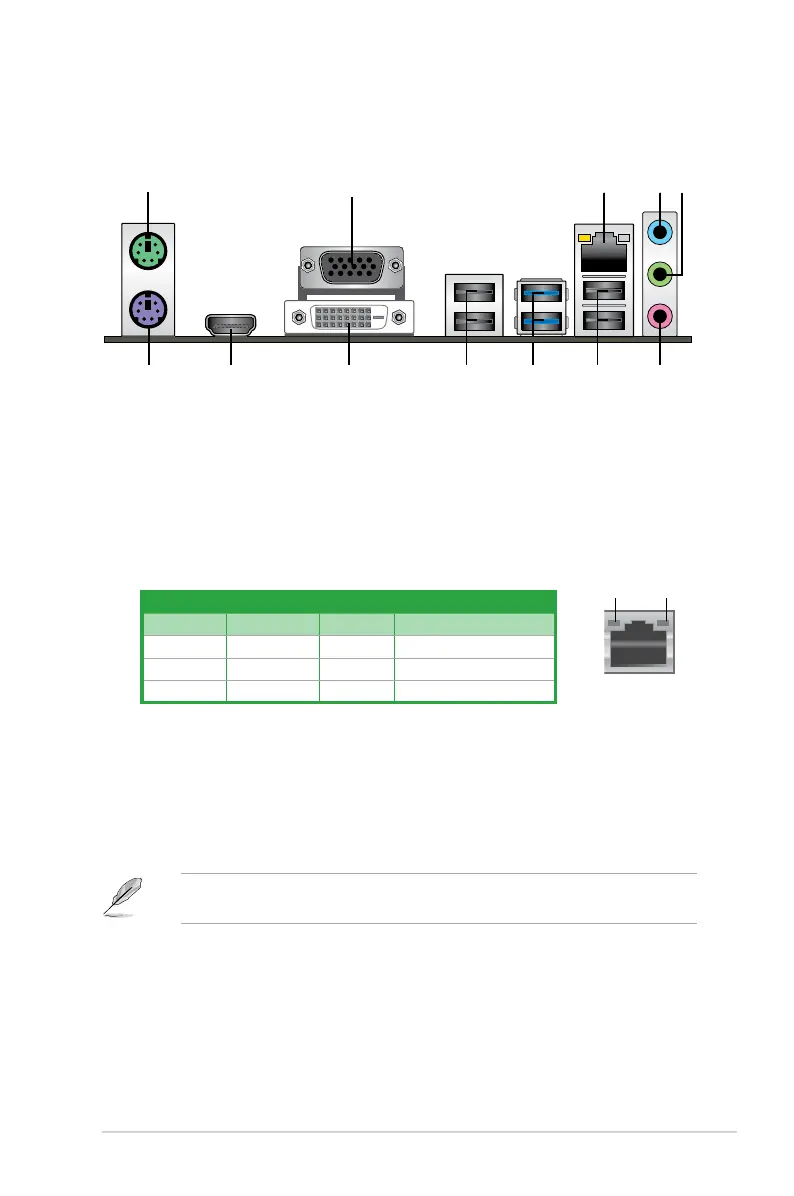

1.9.1 Rear panel connectors
8
4 53
69 7
1
12
2
10
11
1. PS/2 mouse port. This port is for a PS/2 mouse.
2. Video Graphics Adapter (VGA) port.
This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
3. LAN (RJ-45) port.
This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
LAN port LED indications
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
LAN port
SPEED
LED
ACT/LINK
LED
4. Line In port (light blue). This port connects to a tape, CD, DVD player, or other audio
source.
5. Line Out port (lime).
This port connects to a headphone or a speaker. In the 4.1, 5.1,
and 7.1-channel congurations, the function of this port becomes Front Speaker Out.
6. Microphone port (pink).
This port connects to a microphone.
Refer to the audio conguration table on the next page for the function of the audio ports in
2.1, 4.1, 5.1 or 7.1-channel conguration.
