ASUS A7V8X-X Motherboard 1-13

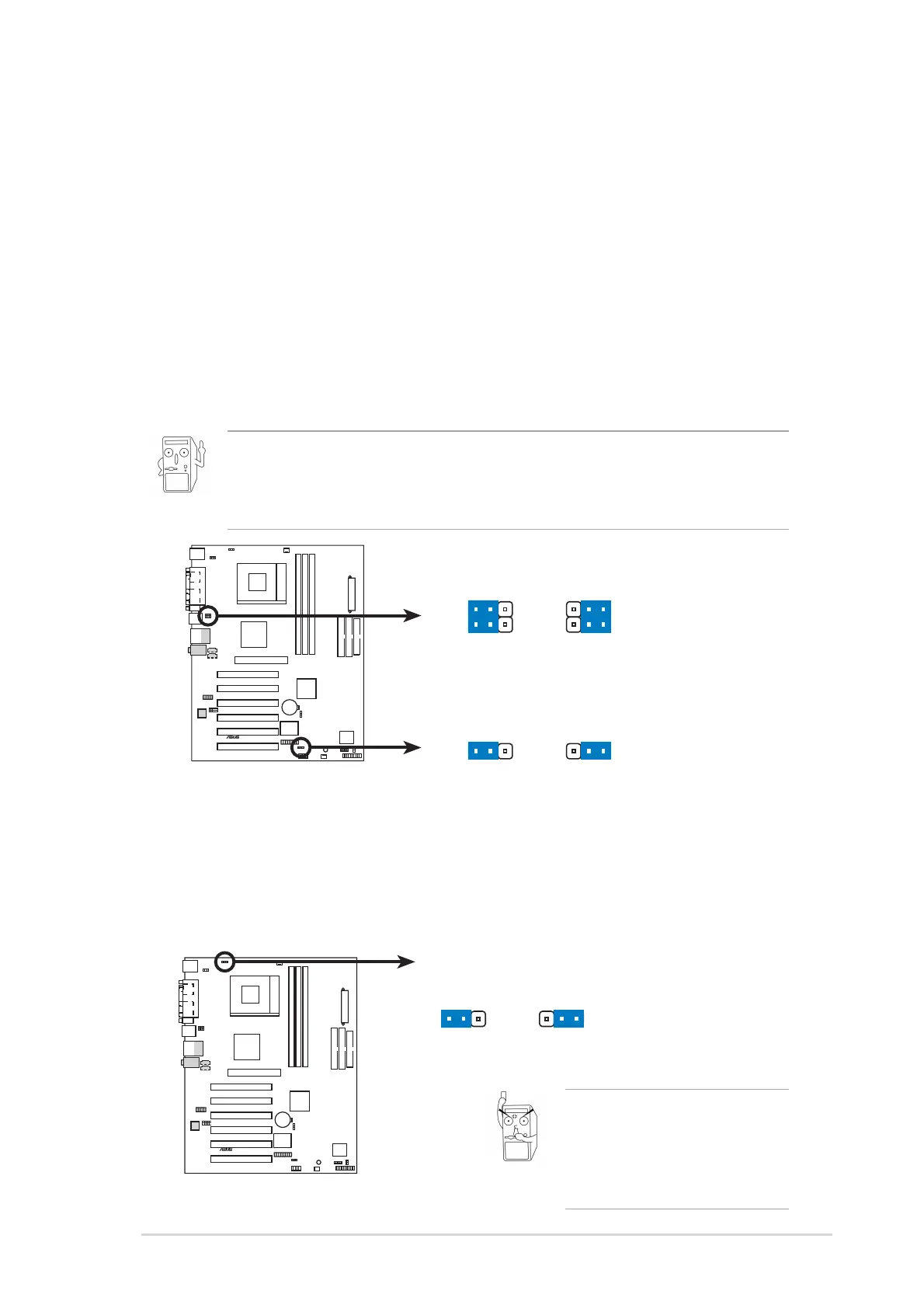

1.11 Jumpers
This section describes and illustrates the jumpers on the motherboard.
1. USB device wake-up (3-pin USBPWR12,USBPWR34,USBPWR56)
Set these jumpers to +5V to wake up the computer from S1 sleep mode
(CPU stopped, DRAM refreshed, system running in low power mode) using
the connected USB devices. Set to +5VSB to wake up from S3 sleep mode
(no power to CPU, DRAM in slow refresh, power supply in reduced power
mode). Both jumpers are set to pins 1-2 (+5V) by default because not all
computers have the appropriate power supply to support this feature.
The USBPWR12 and USBPWR34 jumpers are for the rear USB ports.
USBPWR56 is for the internal USB header that you can connect to the front
USB ports.
This feature requires a power supply that can provide at least 1A on the +5VSB
lead when these jumpers are set to +5VSB. Or, the system does not power up.
The total current consumed must NOT exceed the power supply capability
(+5VSB) whether under normal condition or in sleep mode.
A7V8X-X
®
A7V8X-X USB Device Wake Up
USBPW12
USBPW34
+5V
(Default)
+5VS
B
USBPW56
2
3
12
+5V
(Default)
+5VS
B
2
3
12
2. V
CORE
over-voltage (3-pin OVER_VOLT)
When enabled, this jumper allows CPU V
CORE
ranges of 1.7V to 2.05V.
When this jumper is disabled, V
CORE
setting has a range of +1.5V to +1.85V.
You may adjust the CPU V
CORE
through the BIOS Setup.
A7V8X-X
®
A7V8X-X OVER_VOLT Setting
Enable Disable
(Defaul
t)
OVER_VOLT
2312
Setting to a very high core
voltage may cause permanent
damage to the CPU. It is
recommended that you keep
the default setting (Disable).
