Asus B85M-E R2.0 User Manual

1-2
Chapter 1: Product introduction
B85M-E R2.0
Place this side
towards the rear
of the chassis
1.2 Motherboard overview
Beforeyouinstallthemotherboard,studythecongurationofyourchassistoensurethatthe
motherboardts.
Unplugthepowercordbeforeinstallingorremovingthemotherboard.Failuretodosocan
cause you physical injury and damage to motherboard components.
1.2.1 Placement direction
Wheninstallingthemotherboard,placeitintothechassisinthecorrectorientation.Theedge
with external ports goes to the rear part of the chassis as indicated in the image.

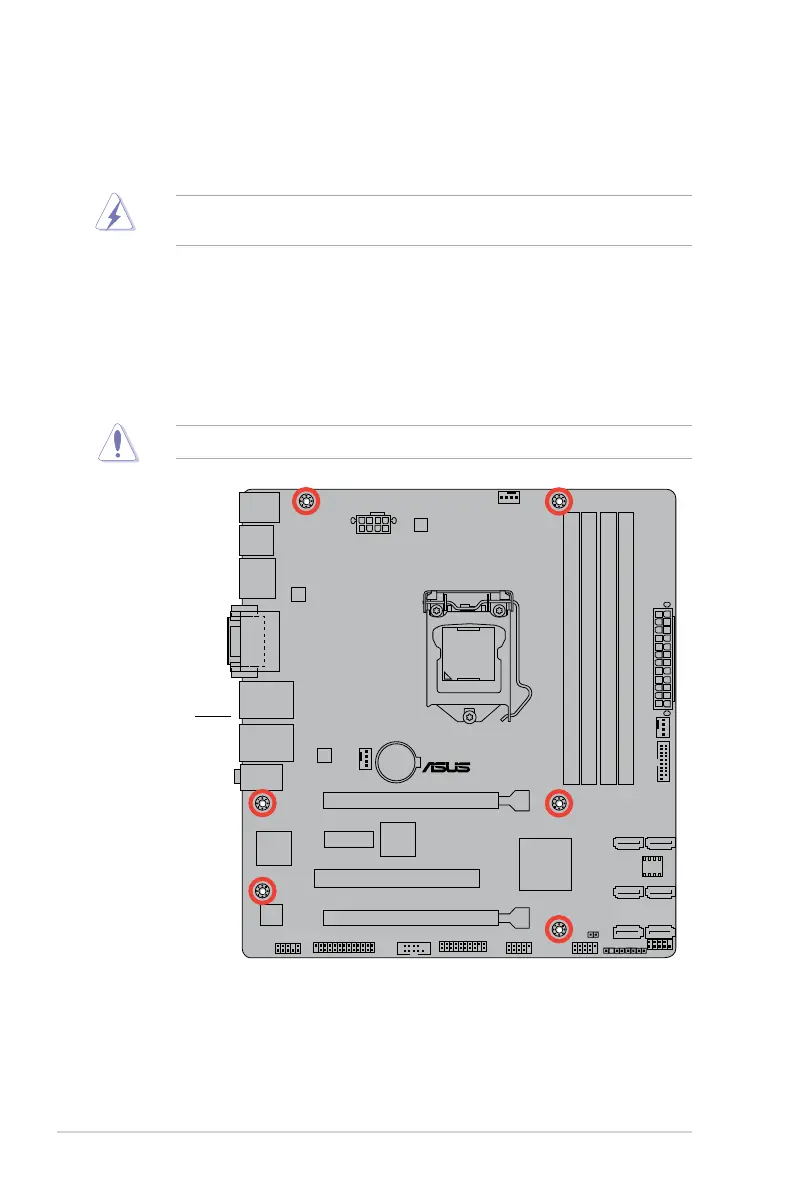

1.2.2 Screw holes
Place six screws into the holes indicated by circles to secure the motherboard to the chassis.
Donotovertightenthescrews!Doingsocandamagethemotherboard.

Asus B85M-E R2.0 Specifications

General

Form Factor	Micro ATX
Chipset	Intel B85
CPU Socket	LGA 1150
Memory Slots	4
Memory Type	DDR3
Maximum Memory	32 GB
PCIe x16 Slots	1
PCIe x1 Slots	2
SATA 6Gb/s	4
SATA 3Gb/s	2
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
RAID Support	RAID 0, 1, 5, 10
USB 3.0 Ports	4 (2 rear, 2 via header)
USB 2.0 Ports	8 (4 at back panel, 4 via internal header)
LAN	Realtek 8111G, 1 x Gigabit LAN Controller
Memory Standard	DDR3 1600/1333/1066 MHz
