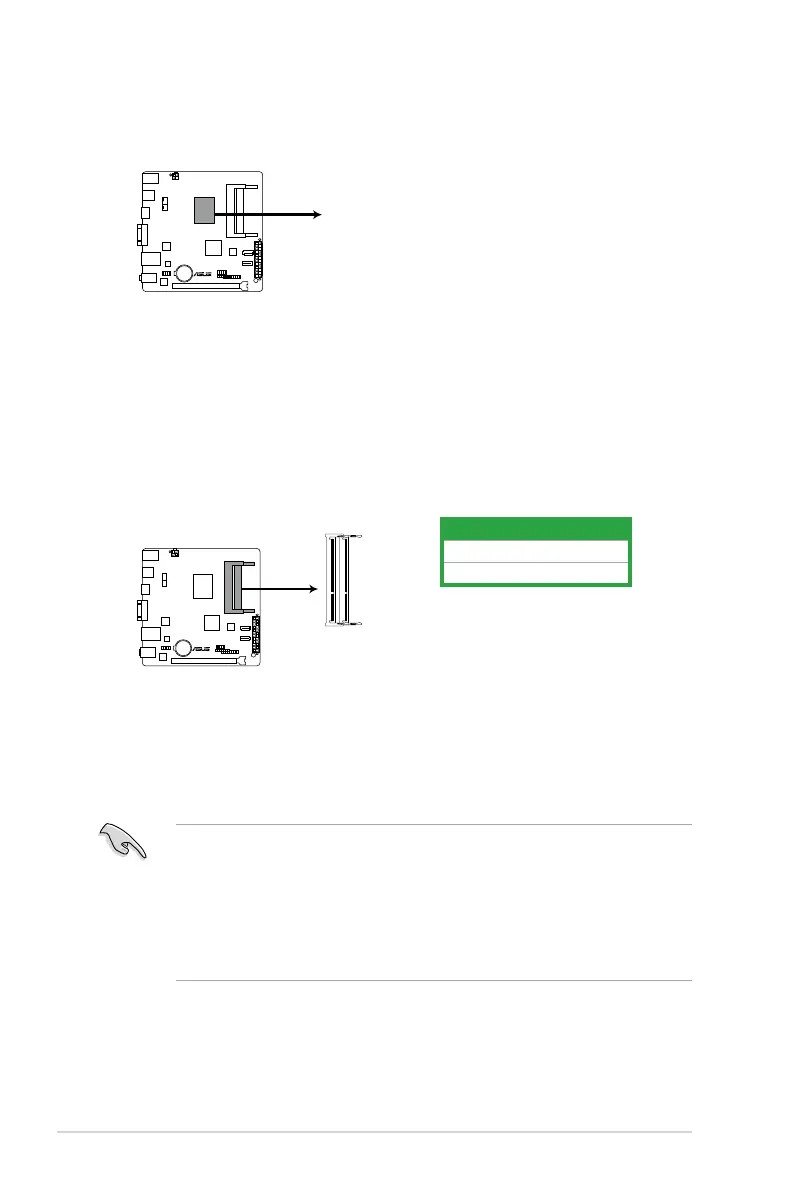

Chapter 1: Product introduction
1.3 Central Processing Unit (CPU)
The motherboard comes with an onboard Intel
®
Celeron™ 847 (BGA1023) processor and a
specially designed CPU heatsink.
C8HM70-I/HDMI CPU Celeron847
Intel
®
Celeron847
C8HM70-I/HDMI
1.4 System memory
1.4.1 Overview
This motherboard comes with two Double Data Rate 3 (DDR3) Small Outline Dual Inline
Memory Modules (SO-DIMM) sockets. The gure illustrates the location of the DDR3 DIMM
sockets:
Channel Sockets
Channel A DIMM_A1
Channel B DIMM_B1
C8HM70-I/HDMI 204-pin DDR3 DIMM sockets
DIMM_B1
DIMM_A1
C8HM70-I/HDMI
1.4.2 Memory congurations
You may install 512MB, 1GB, 2GB, 4GB and 8GB unbuffered non-ECC DDR3 SO-DIMMs
into the DIMM sockets.
• Always install DIMMs with the same CAS latency. For optimum compatibility, it is
recommended that you obtain memory modules from the same vendor.
• Due to the CPU limitation, when you install 4GB or more memory on the motherboard,
the actual usable memory for the OS can be about 3GB or less. For effective use of
memory, we recommend that you use a maximum of 3GB system memory.
• This motherboard does not support DIMMs made up of 256 megabits (Mb) chips or
less.
