Asus C8HM70-I User Manual

1-8
Chapter 1: Product introduction
1.7 Connectors

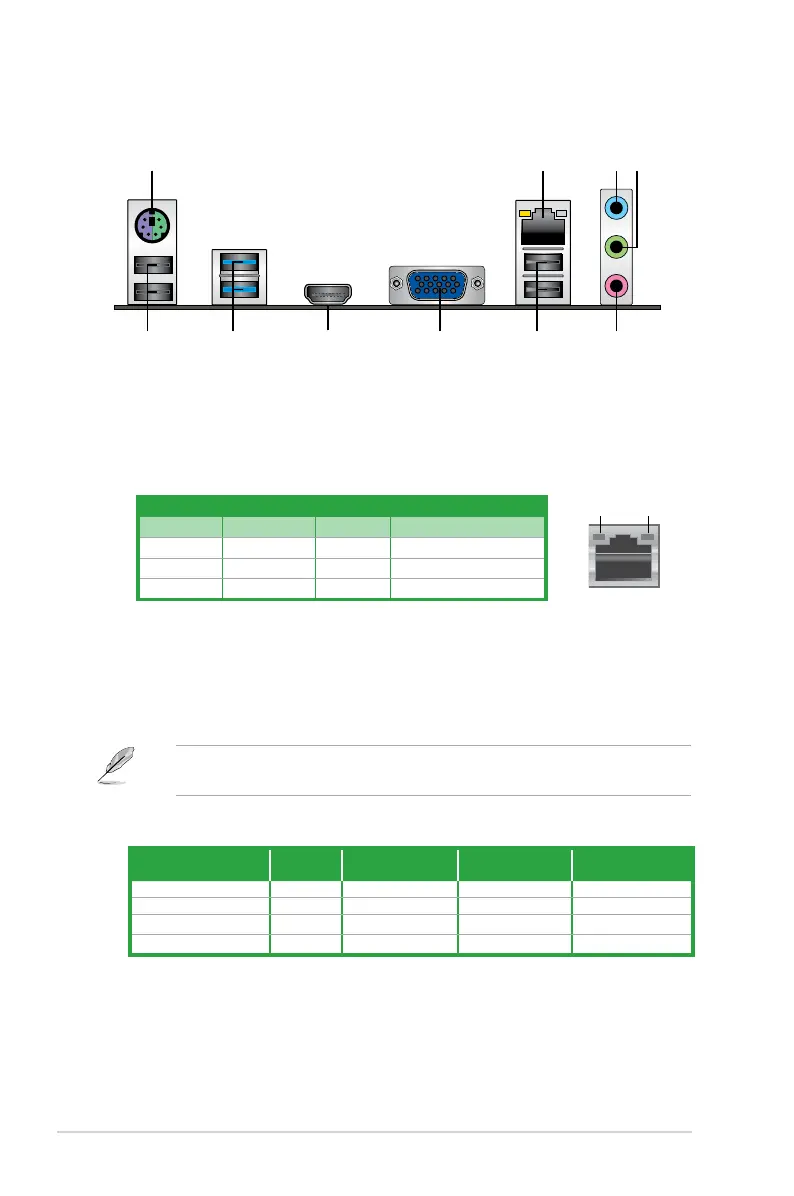

1.7.1 Rear panel connectors
1. PS/2 Keyboard / Mouse Combo port. This port is for a PS/2 keyboard or PS/2
mouse.
2. LAN (RJ-45) port.
This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED indications.
LAN port LED indications
LAN port
Speed
LED
Activity Link
LED
3. Line In port (light blue). This port connects to the tape, CD, DVD player, or other
audio sources.
4. Line Out port (lime).
This port connects to a headphone or a speaker. In the 4, 6, and
8-channel congurations, the function of this port becomes Front Speaker Out.
5. Microphone port (pink).
This port connects to a microphone.
Refer to the audio conguration table below for the function of the audio ports in 2, 4, 6, or
8-channel conguration.
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
3 42
567
1
10 9
8
Audio 2, 4, 6, or 8-channel conguration
Port
Headset
2-channel
4-channel 6-channel 8-channel
Light Blue (Rear panel) Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out
Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink (Rear panel) Mic In Mic In Bass/Center Bass/Center
Lime (Front panel) — — — Side Speaker Out
