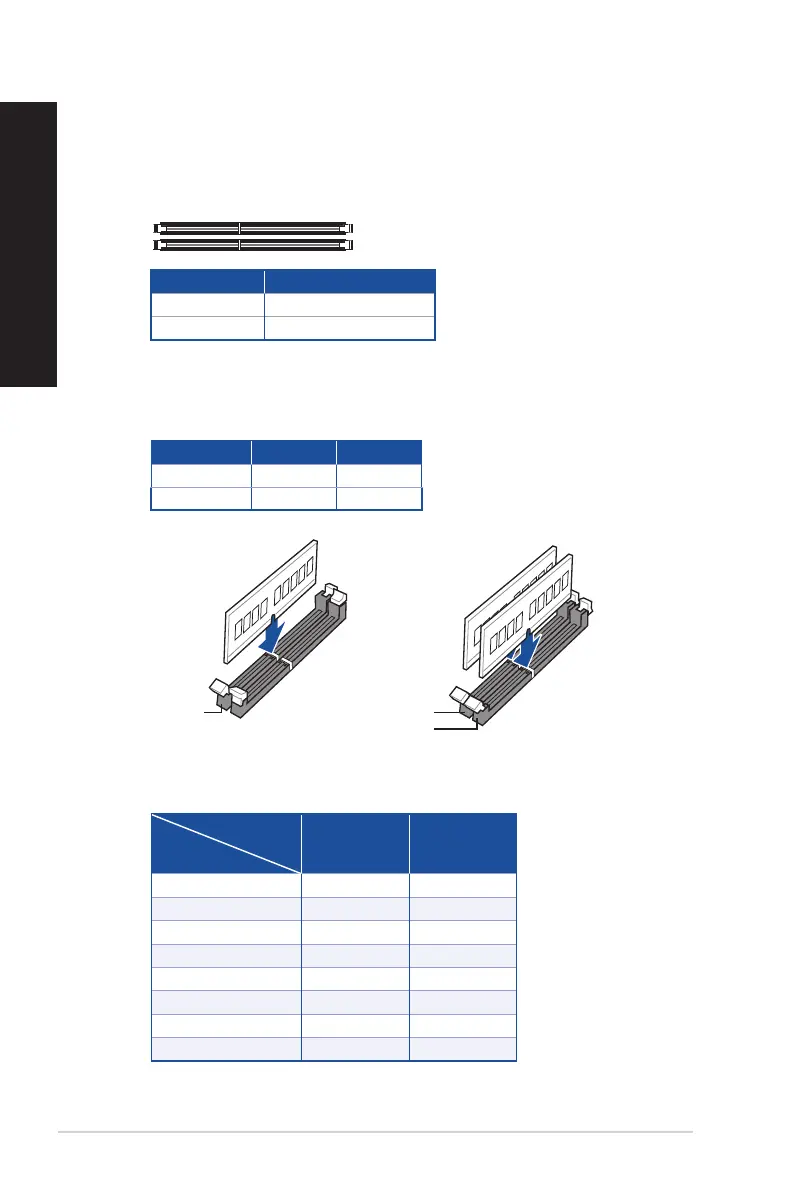

Installing memory in your computer
This desktop PC comes with two Double Data Rate 5 (DDR5) Dual Inline Memory Module (DIMM)
sockets. The gure illustrates the location of the DDR5 DIMM sockets.
DIMM_B2
DIMM_A2
Recommended memory congurations
• Follow the installation sequence below to ensure system stability and avoid possible booting
up failure.
DIMM_A2 DIMM_B2
1 x DIMM √ x
2 x DIMM √ √
•
Install DIMMs with the same capacity from the same manufacturer in the slots of the same
channel.
Total
memory capacity
DIMM_A2 DIMM_B2
4GB 4GB
8GB 8GB
8GB 4GB 4GB
16GB 16GB
16GB 8GB 8GB
32GB 32GB
32GB 16GB 16GB
64GB 32GB 32GB
Single memory
capacity
Channel Sockets
Channel A DIMM_A1 & DIMM_A2
Channel B DIMM_B1 & DIMM_B2
D501SER / D501SERES / D501SERC / M501SER / S501SER
30 Chapter 1: Getting started
