Chapter 6: RAID conguration
6.2.7 Selecting the boot drive from a RAID set
YoumusthavecreatedanewRAIDcongurationbeforeyoucanselectthebootdrivefroma
RAID set. Refer to the
Creating a RAID set: Using New Configuration
section for details.
To select the boot drive from a RAID set:
1. Fromthe
Management Menu
,select
Configure > Select Boot Drive
,andthenpress
<Enter>.
2. Whenprompted,usethearrowkeystoselectthebootablevirtualdrivefromthelist,
thenpress<Enter>.
3. Thevirtualdriveisselectedasbootdrive.Pressanykeytocontinue.

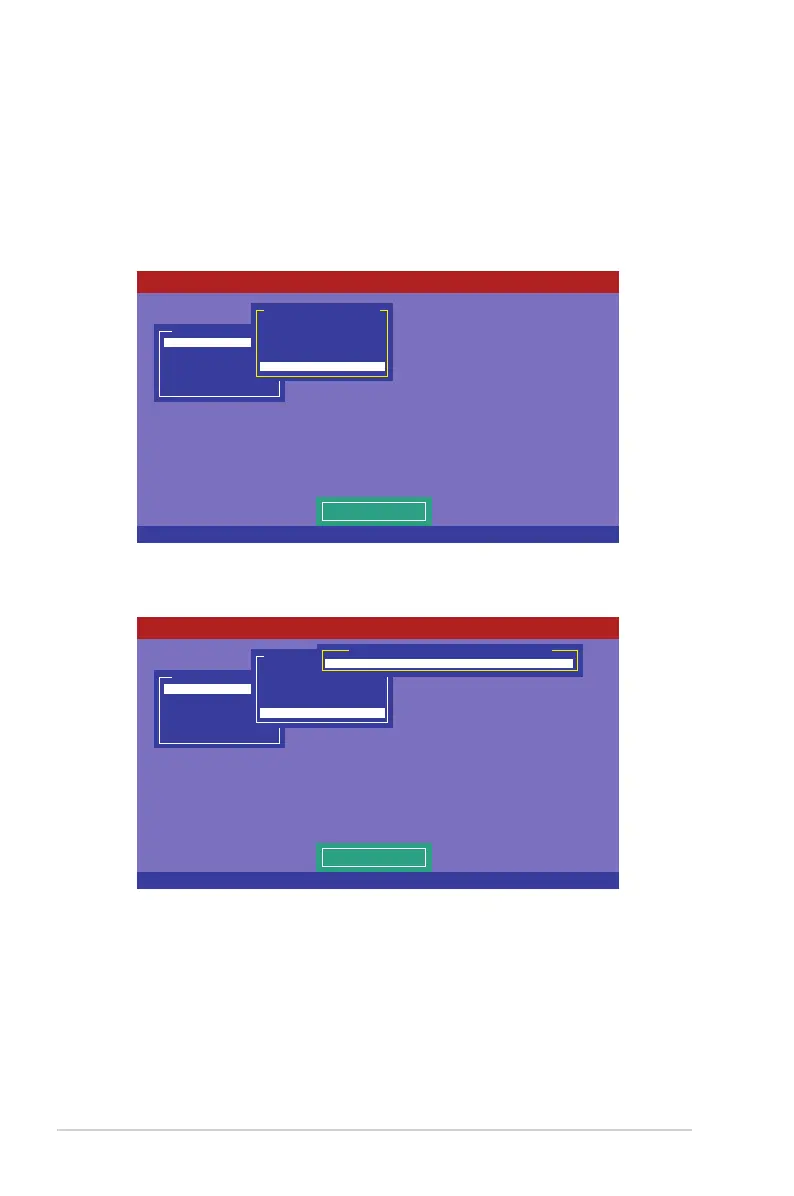

Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option
LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010
BIOS Version A.10.09231523R
Select A Boot VD
Configure
Initialize
Objects
Rebuild
Check Consistency
Management Menu
Easy Configuration
New Configuration
View/Add Configuration
Clear Configuration
Select Boot Drive
Configuration Menu
Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option
LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010
BIOS Version A.10.09231523R
Select A Boot VD
Configure
Initialize
Objects
Rebuild
Check Consistency
Management Menu
Easy Configuration
New Configuration
View/Add Configuration
Clear Configuration
Select Boot Drive
Configuration Menu
Boot Drive 0
Bootable VDs(1): Current Boot VD(0)
