ASUS CM6330, CM6730, CM6830, and M11AA 71
Chapter 6
Using the utilities

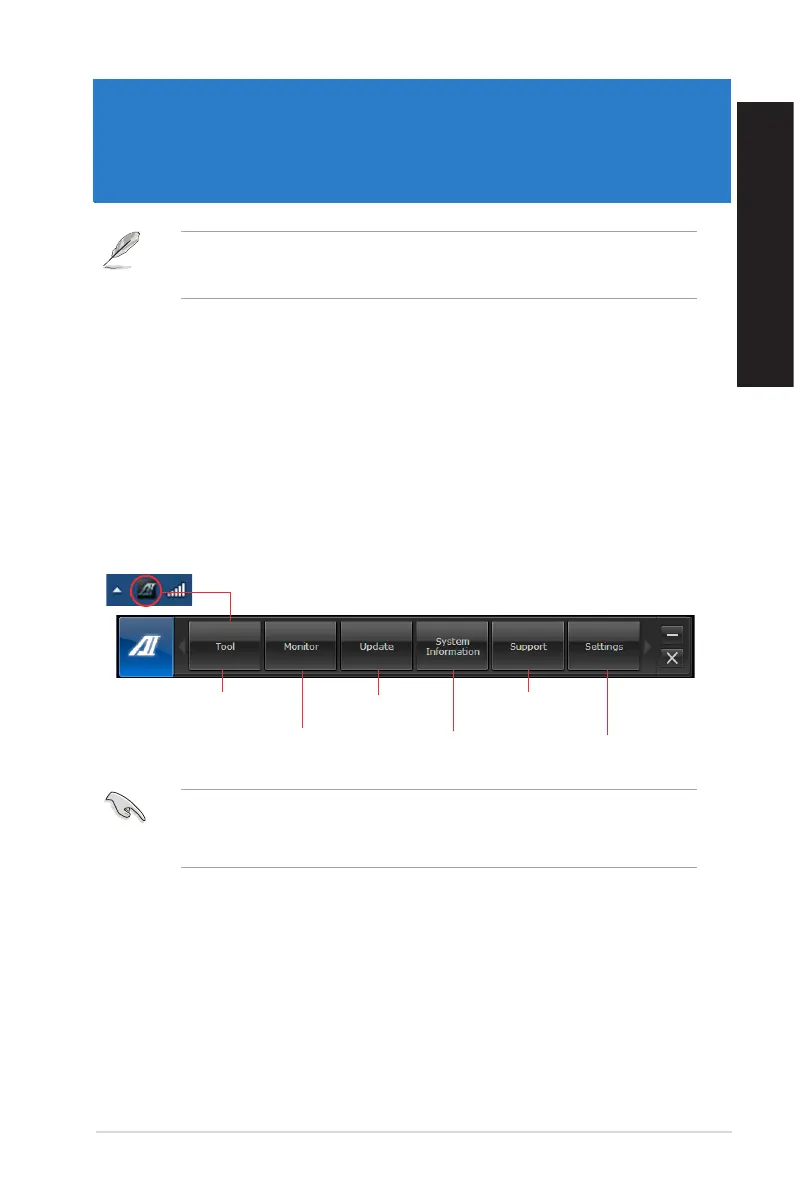

ASUS AI Suite II
ASUS AI Suite II is an all-in-one interface that integrates several ASUS utilities and allows
users to launch and operate these utilities simultaneously.
Using AI Suite II
AI Suite II automatically starts when you enter the Windows
®
operating system. The AI Suite
II icon appears in the Windows
®
notication area. Click the icon to open the AI Suite II main
menu bar.
Click each button to select and launch a utility, to monitor the system, to update the
motherboard BIOS, to display the system information, and to customize the settings of AI
Suite II.
The Support DVD and Recovery DVD may not be included in the package. You may use
the Recovery Partition feature to create the Support DVD and Recovery DVD. For details,
refer to Recovering your system in this chapter.
• The applications in the Tool menu vary with models.
• The screenshots of AI Suite II in this user manual are for reference only. The actual
screenshots vary with models.
Click to select a utility
Click to monitor sensors
or CPU frequency
Click to update the
motherboard BIOS
Click to show the
system information
Click to customize
the interface settings
Click to show the ASUS
support information

Asus Essentio CM6830 Specifications

General

Tcase	72.6 °C
Bus type	DMI
Stepping	D2
Processor cache	8 MB
Processor cores	4
Processor model	i7-2600
System bus rate	5 GT/s
Processor family	Intel® Core™ i7
Processor series	Intel Core i7-2600 Desktop Series
Processor socket	LGA 1155 (Socket H2)
Processor threads	8
Processor codename	Sandy Bridge
Processor frequency	3.4 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor boost frequency	3.8 GHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	95 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	34
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066, 1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
Maximum internal memory supported by processor	32 GB
Audio system	Realtek ALC892
Product type	PC
Motherboard chipset	Intel® H61
Audio output channels	7.1 channels
Memory slots	2x DIMM
Internal memory	4 GB
Memory channels	Dual-channel
Memory clock speed	1333 MHz
Maximum internal memory	8 GB
Memory layout (slots x size)	- GB
HDD size	3.5 \
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Total storage capacity	1000 GB
Networking features	Gigabit Ethernet
Graphics card family	Intel, NVIDIA
On-board graphics card ID	0x102
Discrete graphics card model	NVIDIA® GeForce® GT 530
On-board graphics card model	Intel® HD Graphics 2000
Discrete graphics card memory	2048 GB
Discrete graphics memory type	GDDR3
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1350 MHz
Number of displays supported (on-board graphics)	2
Operating system installed	Windows 7 Home Basic
USB 2.0 ports quantity	6
Firewire (IEEE 1394) ports	0
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Chassis type	-
Product color	Black
Power supply	300 W
Processor code	SR00B
Processor ARK ID	52213
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	420 mm
Width	173 mm
Height	410 mm
Weight	9000 g
