13. Expansion slot bracket.Expansion slot bracket. Remove the expansion slot bracket when installing an
expansion card.
14. ASUS WLAN Card (on selected models only).ASUS WLAN Card (on selected models only). This optional WLAN card allows your
computer to connect to a wireless network.
15. ASUS Graphics Card (on selected models only).ASUS Graphics Card (on selected models only). The display output ports on this
optional ASUS Graphics Card may vary with different models.

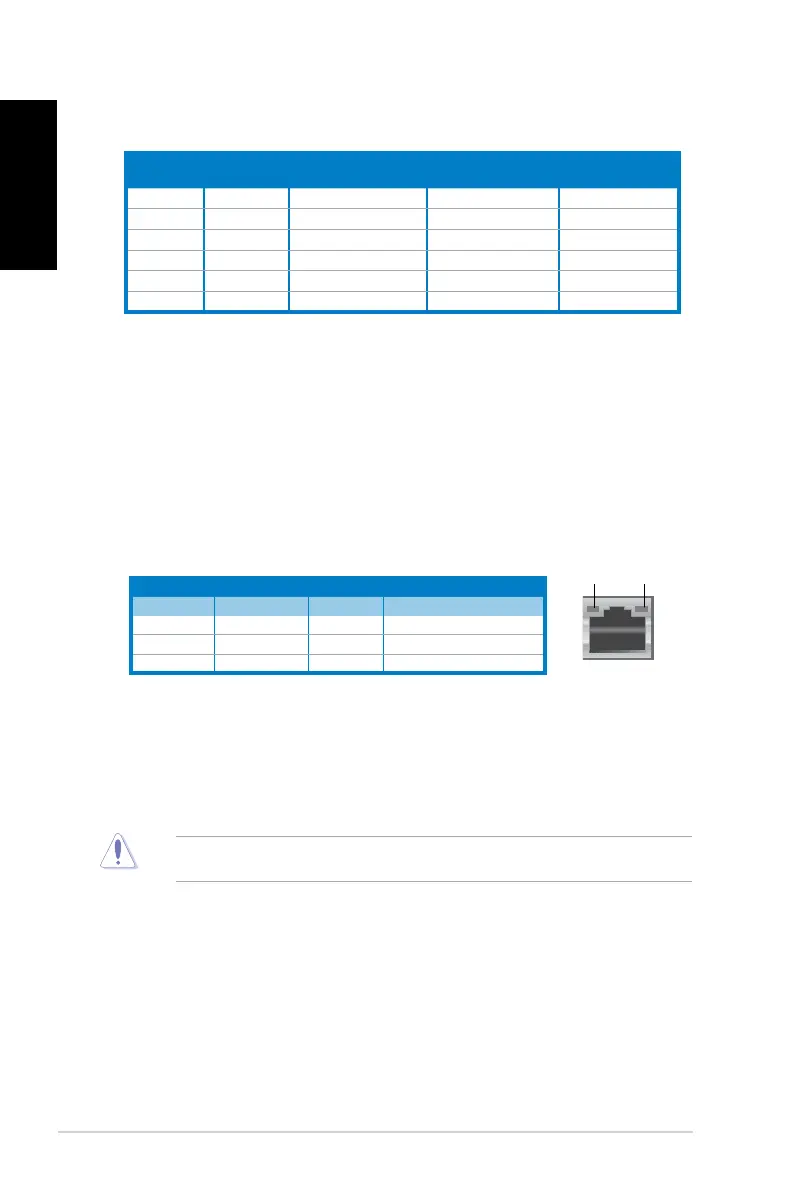

16. LAN (RJ-45) port.LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
LAN port LED indications
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
LAN port
SPEED
LED
ACT/LINK
LED
17. VGA port.VGA port. This port is for VGA-compatible devices such as a VGA monitor.
18. PS/2 Keyboard / Mouse Combo port (purple).PS/2 Keyboard / Mouse Combo port (purple). This port is for a PS/2 keyboard or
mouse.
19. Air vents.Air vents. These vents allow air ventilation.
DO NOT block the air vents on the chassis. Always provide proper ventilation for your
computer.

Port
Headset
2-channel
4-channel 6-channel 8-channel
Light Blue Line In Line In Line In Line In
Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Orange – – Center/Subwoofer Center/Subwoofer
Black – Rear Speaker Out Rear Speaker Out Rear Speaker Out
Gray – – – Side Speaker Out

Asus Essentio CM6870 Specifications

General

Tcase	67.4 °C
Bus type	DMI
Stepping	E1
Tjunction	105 °C
Processor cache	8 MB
Processor cores	4
Processor model	i7-3770
System bus rate	5 GT/s
Processor family	Intel® Core™ i7
Processor series	Intel Core i7-3700 Desktop series
Processor socket	LGA 1155 (Socket H2)
Processor threads	8
Processor codename	Ivy Bridge
Processor frequency	3.4 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.9 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x8, 1x16, 2x4, 2x8
Thermal Design Power (TDP)	77 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	34
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333, 1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	32 GB
Memory slots	4x DIMM
Internal memory	8 GB
Memory channels	Dual-channel
Memory clock speed	1333 MHz
Memory layout (slots x size)	- GB
PCI Express x16 slots	2
Chassis type	-
Product color	Black
HDD size	3.5 \
HDD speed	7200 RPM
HDD capacity	1000 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
HDD interface	SATA
Storage media	HDD+SSD
Optical drive type	Blu-Ray DVD Combo
Card reader integrated	Yes
Total storage capacity	1032 GB
Compatible memory cards	CF, MMC, MiniMMC, MiniSD, MS Micro (M2), Memory Stick (MS), RS-MMC, MS PRO, MicroDrive, SD, MS PRO Duo, MicroSD (TransFlash), SDHC
Audio system	HDA
Product type	PC
Motherboard chipset	Intel HM77 Express
Audio output channels	7.1 channels
Processor ARK ID	65719
Intel TSX-NI version	0.00
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal solution specification	PCG 2011D
Intel Identity Protection Technology version	1.00
On-board graphics card ID	0x162
Discrete graphics card model	NVIDIA® GeForce® GT 640
On-board graphics card model	Intel® HD Graphics 4000
Discrete graphics card memory	3072 GB
Discrete graphics memory type	GDDR3
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
Number of displays supported (on-board graphics)	3
Power supply	350 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz
Trial software	Anti-Virus, MS Office
Bundled software	Adobe Acrobat Reader AI-SUITE II AI Manager My Logo2 Easy Update Q-fan Vibe AI Charger WebStorage Music Maker
Operating system installed	Windows 8
Wi-Fi standards	802.11g, 802.11b, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 1000, 100 Mbit/s
USB 2.0 ports quantity	6
Cables included	AC

Weight and Dimensions

Depth	420 mm
Width	173 mm
Height	410 mm
Weight	9000 g
Package depth	550 mm
Package width	242 mm
Package height	510 mm
