ASUS CM6870 47
Chapter 6
Using the utilities
ASUS AI Suite II
ASUS AI Suite II is an all-in-one interface that integrates several ASUS utilities and allows
users to launch and operate these utilities simultaneously.
The Support DVD and Recovery DVD may not be included in the package. You may use
the Recovery Partition feature to create the Support DVD and Recovery DVD. For details,
refer to Recovering your system in this chapter.

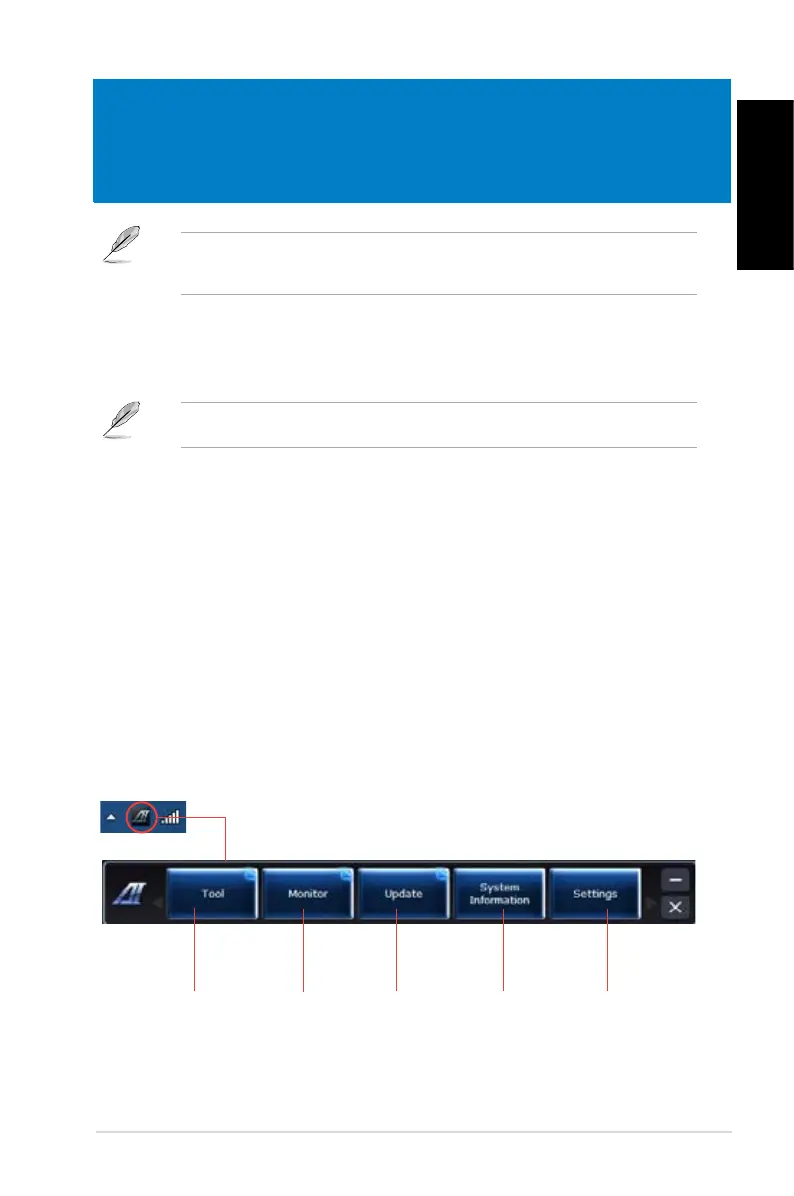

Click to select a
utility
Click to monitor
sensors or CPU
frequency
Click to update the
motherboard BIOS
Click to show
the system
information
Click to customize
the interface
settings
Installing AI Suite II
To install AI Suite II:
1. Place the support DVD in the optical drive. The Drivers installation tab appears if
Autorun is enabled.
2. Click the Utilities tab, then click ASUS AI Suite II.
3. Follow the onscreen instructions to complete the installation.
Using AI Suite II
AI Suite II automatically starts when you enter the Windows
®
operating system. The AI Suite
II icon appears in the Windows
®
notication area. Click the icon to open the AI Suite II main
menu bar.
Click each button to select and launch a utility, to monitor the system, to update the
motherboard BIOS, to display the system information, and to customize the settings of AI
Suite II.
This utility is pre-installed on some models. For models without an operating system, follow
the steps below to install this utility.

Asus Essentio CM6870 Specifications

General

Tcase	67.4 °C
Bus type	DMI
Stepping	E1
Tjunction	105 °C
Processor cache	8 MB
Processor cores	4
Processor model	i7-3770
System bus rate	5 GT/s
Processor family	Intel® Core™ i7
Processor series	Intel Core i7-3700 Desktop series
Processor socket	LGA 1155 (Socket H2)
Processor threads	8
Processor codename	Ivy Bridge
Processor frequency	3.4 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.9 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x8, 1x16, 2x4, 2x8
Thermal Design Power (TDP)	77 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	34
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333, 1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	32 GB
Memory slots	4x DIMM
Internal memory	8 GB
Memory channels	Dual-channel
Memory clock speed	1333 MHz
Memory layout (slots x size)	- GB
PCI Express x16 slots	2
Chassis type	-
Product color	Black
HDD size	3.5 \
HDD speed	7200 RPM
HDD capacity	1000 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
HDD interface	SATA
Storage media	HDD+SSD
Optical drive type	Blu-Ray DVD Combo
Card reader integrated	Yes
Total storage capacity	1032 GB
Compatible memory cards	CF, MMC, MiniMMC, MiniSD, MS Micro (M2), Memory Stick (MS), RS-MMC, MS PRO, MicroDrive, SD, MS PRO Duo, MicroSD (TransFlash), SDHC
Audio system	HDA
Product type	PC
Motherboard chipset	Intel HM77 Express
Audio output channels	7.1 channels
Processor ARK ID	65719
Intel TSX-NI version	0.00
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal solution specification	PCG 2011D
Intel Identity Protection Technology version	1.00
On-board graphics card ID	0x162
Discrete graphics card model	NVIDIA® GeForce® GT 640
On-board graphics card model	Intel® HD Graphics 4000
Discrete graphics card memory	3072 GB
Discrete graphics memory type	GDDR3
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
Number of displays supported (on-board graphics)	3
Power supply	350 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz
Trial software	Anti-Virus, MS Office
Bundled software	Adobe Acrobat Reader AI-SUITE II AI Manager My Logo2 Easy Update Q-fan Vibe AI Charger WebStorage Music Maker
Operating system installed	Windows 8
Wi-Fi standards	802.11g, 802.11b, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 1000, 100 Mbit/s
USB 2.0 ports quantity	6
Cables included	AC

Weight and Dimensions

Depth	420 mm
Width	173 mm
Height	410 mm
Weight	9000 g
Package depth	550 mm
Package width	242 mm
Package height	510 mm
