2-6
Chapter 2: BIOS Information

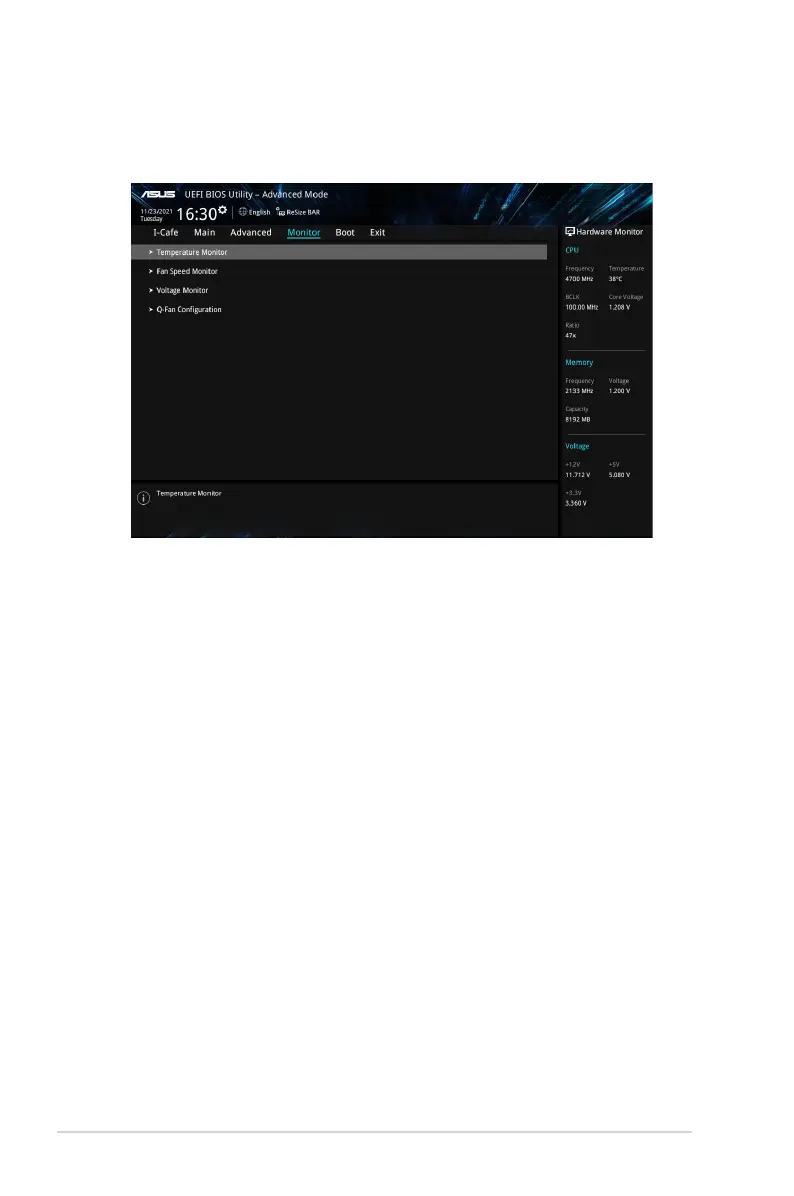

2.5 Monitor menu
The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
Temperature Monitor
The onboard hardware monitor automatically detects and displays the CPU, CPU package
and motherboard temperatures. Select [Ignore] if you do not wish to display the detected
temperatures.
Fan Speed Monitor
The onboard hardware monitor automatically detects and displays the CPU and chassis fan
speeds in rotations per minute (RPM). If the fan is not connected to the motherboard, the
eld shows N/A. Select [Ignore] if you do not wish to display the detected speed.
Voltage Monitor
The onboard hardware monitor automatically detects the voltage output through the onboard
voltage regulators. Select [Ignore] if you do not want to detect this item.
Q-Fan Conguration
The subitems in this menu allows you to congure the Q-Fan features.
To Next Page
