Product introduction
1
Motherboard overview
• Unplugthepowercordfromthewallsocketbeforetouchinganycomponent.
• Beforehandlingcomponents,useagroundedwriststraportouchasafelygrounded
objectorametalobject,suchasthepowersupplycase,toavoiddamagingthemdue
tostaticelectricity.
• Beforeyouinstallorremoveanycomponent,ensurethattheATXpowersupplyis
switchedofforthepowercordisdetachedfromthepowersupply.Failuretodoso
maycauseseveredamagetothemotherboard,peripherals,orcomponents.
• Unplugthepowercordbeforeinstallingorremovingthemotherboard.Failuretodoso
cancauseyouphysicalinjuryanddamagetomotherboardcomponents.
Place this
side towards
the rear of the
chassis

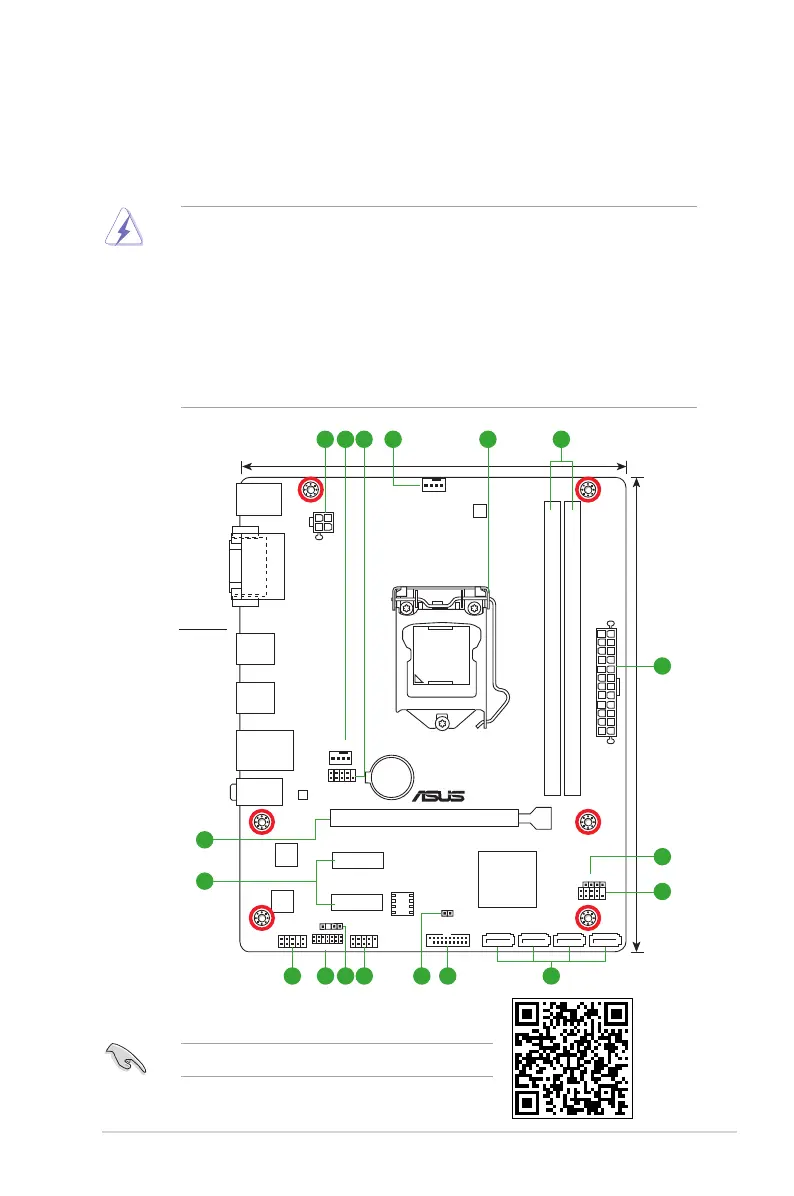

H110M-K
PCIEX16_1
PCIEX1_1
PCIEX1_2
SPEAKER
F_PANEL
CLRTC
SPDIF_OUT
USB910
TPM
USB3_12
AAFP
COM
EATXPWR
CPU_FAN
CHA_FAN
BATTERY
Super
I/O
ALC
887
RTL
8111H
DIGI
+VRM
LGA1151
Intel
®
H110
DDR4 DIMM_A1 (64bit, 288-pin module) DDR4 DIMM_A2 (64bit, 288-pin module)
SATA6G_2SATA6G_1 SATA6G_3 SATA6G_4
128Mb
BIOS
22.6cm(8.9in)
AUDIO
LAN_USB78
USB_56
USB3_34
KBMS
DVI VGA
18.3cm(7.2in)
ATX12V
321 542
1
811 910
6
7
14
15
1213
16
ScantheQRcodetogetthedetailedpindenitions.

Asus H110M-K Specifications

General

Form Factor	Micro ATX
Chipset	Intel H110
Socket	LGA 1151
Memory Slots	2
Maximum Memory	32 GB
Memory Type	DDR4
PCIe x16 Slots	1
PCIe x1 Slots	2
SATA Ports	4
USB 3.0 Ports	2
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
USB 2.0 Ports	4
LAN	Realtek RTL8111H Gigabit LAN
Video Outputs	VGA, DVI-D
