Asus H110M-PLUS D3 User Manual

1-20
Chapter 1: Product introduction
• SystempowerLED(2-pin+PWR_LED-)
This2-pinconnectorisforthesystempowerLED.ConnectthechassispowerLED
cabletothisconnector.ThesystempowerLEDlightsupwhenyouturnonthesystem
power,andblinkswhenthesystemisinsleepmode.
• HarddiskdriveactivityLED(2-pin+HDD_LED-)
This2-pinconnectorisfortheHDDActivityLED.ConnecttheHDDActivityLEDcable
tothisconnector.TheHDDLEDlightsuporasheswhendataisreadfromorwritten
totheHDD.
• Systemwarningspeaker(4-pinSPEAKER)
This4-pinconnectorisforthechassis-mountedsystemwarningspeaker.Thespeaker
allows you to hear system beeps and warnings.
• ATXpowerbutton/soft-offbutton(2-pinPWR_SW)
This connector is for the system power button. Pressing the power button turns the
system on or puts the system in sleep or soft-off mode depending on the operating
system settings. Pressing the power switch for more than four seconds while the
systemisONturnsthesystemOFF.
• Resetbutton(2-pinRESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.

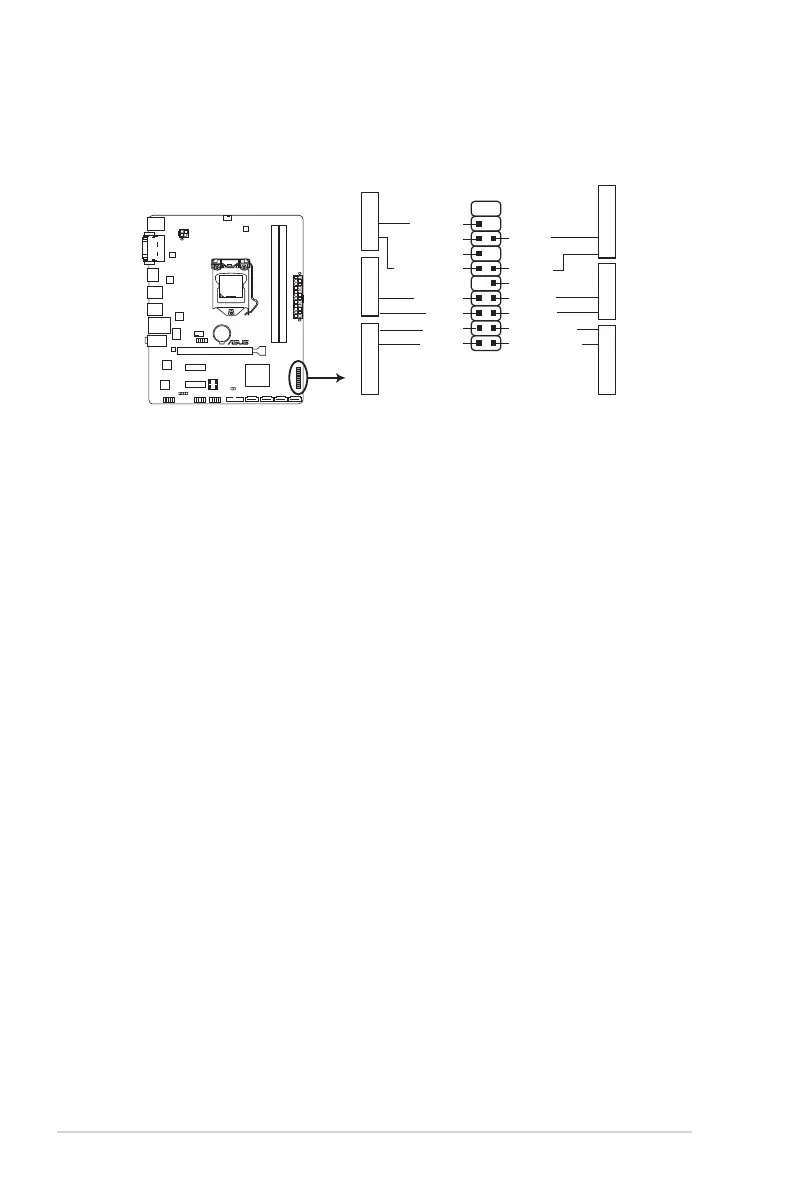

9. System panel connector (20-5 pin PANEL)
Thisconnectorsupportsseveralchassis-mountedfunctions.
H110M-PLUS D3
H110M-PLUS D3 System panel connector
Speaker
Ground
Ground
+5V_SPKO
Ground
PWR
PLED-
PLED+
PLED-
PLED+
NC
RESET
Ground
HDD_LED-
HDD_LED+
PIN 1
+PWR_LED-
+PWR_LED-
SPEAKER
PANEL
+HDD_LED-
PWR_SW
RESET
* Requires an ATX power supply

Asus H110M-PLUS D3 Specifications

General

Form Factor	Micro ATX
Socket	LGA 1151
Chipset	Intel H110
Memory Slots	2
Max Memory	32GB
Memory Type	DDR3
Storage Interface	4 x SATA 6Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Memory Speed	1600 MHz
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
USB Ports (Rear)	4 x USB 3.0, 2 x USB 2.0
LAN	Realtek RTL8111H
Video Outputs	HDMI, VGA
USB Ports (Front)	2 x USB 3.0
