Asus M2N-SLI User Manual

ASUS M2N-SLI Deluxe 2-15

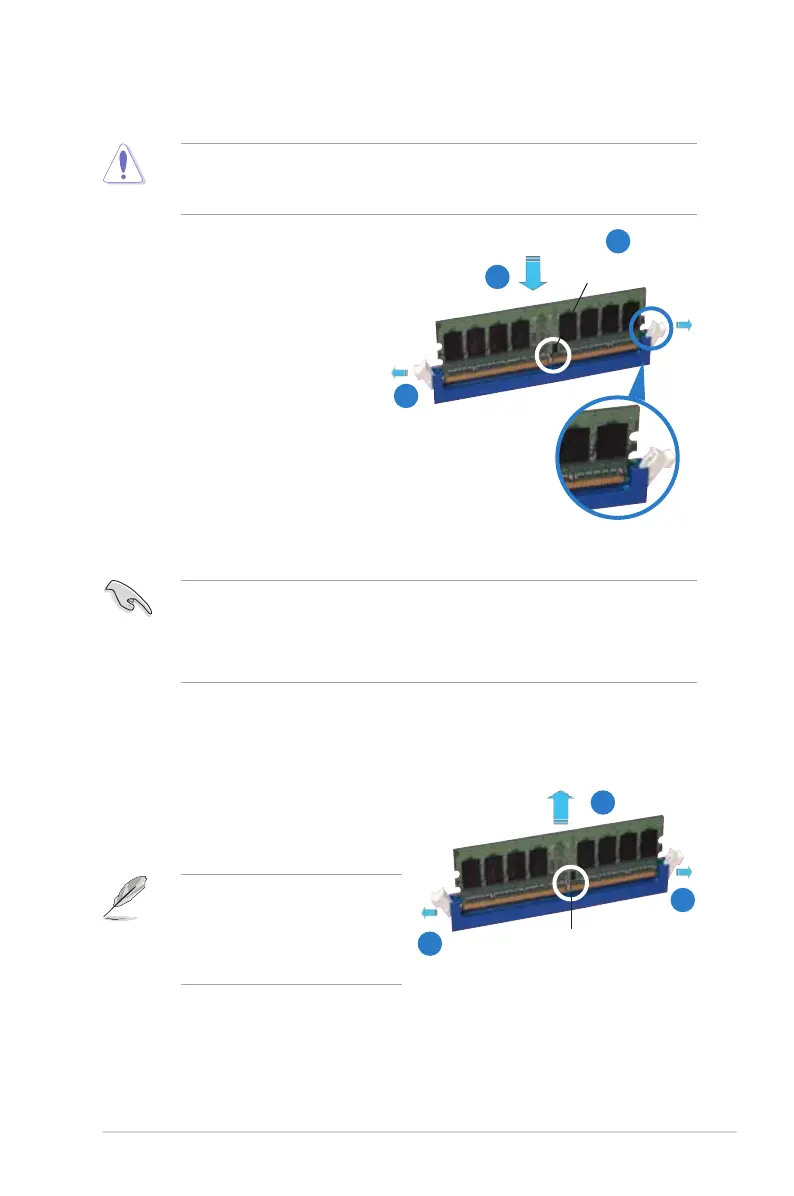

2.4.3 Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other
system components. Failure to do so can cause severe damage to both the
motherboard and the components.
To install a DIMM:
1. Unlock a DIMM socket by
pressing the retaining clips
outward.
2. Align a DIMM on the socket
such that the notch on the DIMM
matches the break on the socket.
3. Firmly insert the DIMM into the
socket until the retaining clips
snap back in place and the
DIMM is properly seated.
2.4.4 Removing a DIMM
To remove a DIMM:
1. Simultaneously press the retaining
clips outward to unlock the DIMM.
2. Remove the DIMM from the socket.
• A DDR2 DIMM is keyed with a notch so that it ts in only one direction. Do
not force a DIMM into a socket to avoid damaging the DIMM.
• The DDR2 DIMM sockets do not support DDR DIMMs. DO not install DDR
DIMMs to the DDR2 DIMM sockets.
Support the DIMM lightly with
your ngers when pressing the
retaining clips. The DIMM might
get damaged when it ips out
with extra force.
1
2
1
DDR2 DIMM notch
Unlocked retaining clip
DDR2 DIMM notch
1
2
3

Asus M2N-SLI Specifications

General

Chipset	NVIDIA nForce 560 SLI
CPU Socket	Socket AM2
Memory Type	DDR2
Max Memory	8GB
Memory Standard	DDR2 800/667/533
SLI Support	Yes
Form Factor	ATX
PCI Express x16	2
PCI Express x1	2
PCI Slots	3
SATA	4 x SATA 3Gb/s
Audio Chipset	Realtek ALC883
LAN Chipset	Marvell 88E1116
Max. LAN Speed	10/100/1000Mbps
PS/2	2
CPU Type	Athlon 64 / Athlon 64 FX / Athlon 64 X2 / Sempron
Memory Slots	4
SATA RAID	0/1/0+1/5
Audio Channels	8
USB 1.1/2.0	4 x USB 2.0
