1.10 Connectors
1.10.1 Rear panel connectors

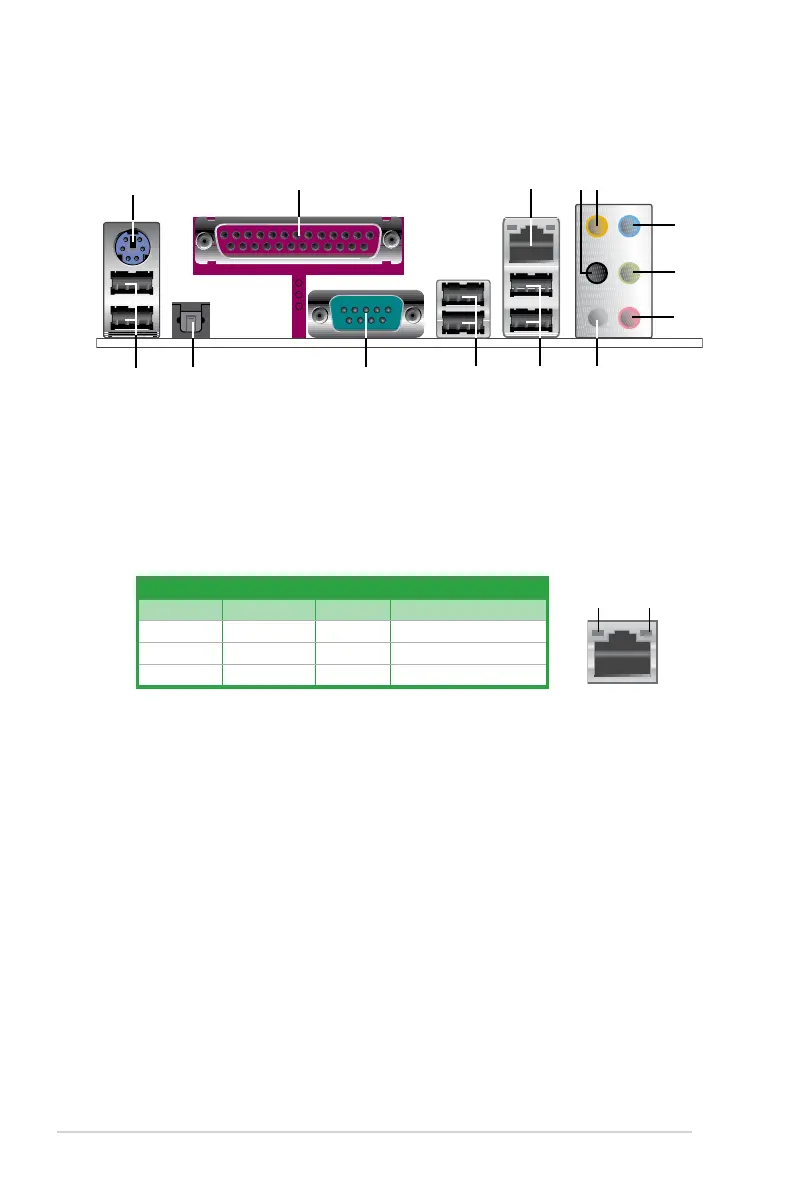

1. PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
2. LPT port.
This 25-pin port connects a parallel printer, a scanner, or other
devices.
3. LAN (RJ-45) port.
This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub.
LAN port LED indications
LAN port
SPEED
LED
ACT/LINK
LED
4. Rear Speaker Out port (black). This port connects the rear speakers in a
4-channel, 6-channel, or 8-channel audio conguration.
5. Center/Subwoofer port (orange).
This port connects the center/subwoofer
speakers.
6. Line In port (light blue).
This port connects the tape, CD, CD player, or
other audio sources.
7. Line Out port (lime).
This port connects a headphone or a speaker. In
4-channel, 6-channel, and 8-channel conguration, the function of this port
becomes Front Speaker Out.
8. Microphone port (pink).
This port connects a microphone.
9. Side Speaker Out port (gray).
This port connects the side speakers in an
8-channel audio conguration.
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
