Asus M4A78LT-M LX User Manual

5. When the CPU is in place, push down the socket
lever to secure the CPU. The lever clicks on the side
tab to indicate that it is locked.
6. Install a CPU heatsink and fan following the
instructions that comes with the heatsink package.
You can also refer to section 1.6.2 Installing
heatsink and fan for instructions.
7. Connect the CPU fan cable to the CPU_FAN connector on the motherboard.
DO NOT forget to connect the CPU fan connector! Hardware monitoring errors can occur if
you fail to plug this connector.

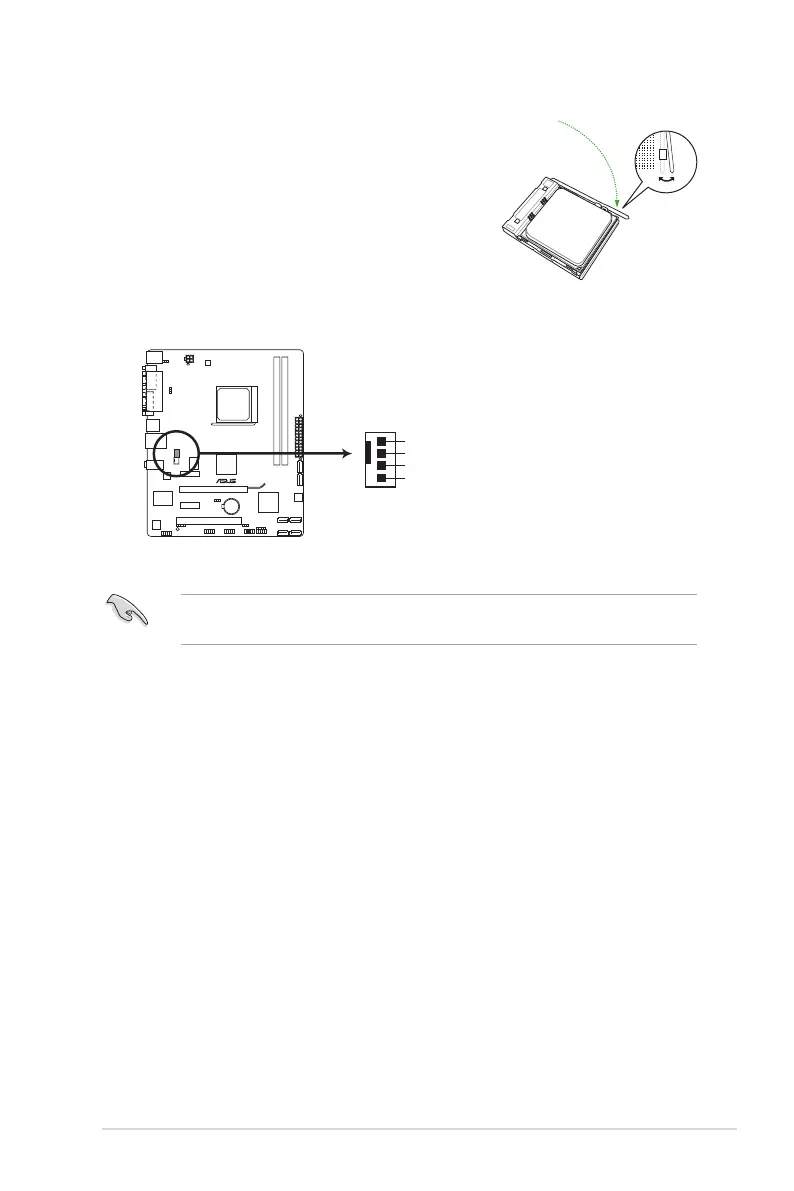

M4A78LT-M LX
M4A78LT-M LX CPU fan connector
CPU_FAN
GND
CPU FAN PWR
CPU FAN IN
CPU FAN PWM
ASUS M4A78LT-M LX 1-9

Asus M4A78LT-M LX Specifications

General

ECC	Yes
Memory channels	Dual-channel
Number of memory slots	2
Maximum internal memory	8 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Processor socket	Socket AM3
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6
USB 2.0 connectors	3
Number of SATA connectors	6
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	4
Audio chip	Realtek ALC887
Component for	PC
Power source type	ATX
Motherboard chipset	AMD 760G
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Motherboard southbridge	AMD SB710
Compatible operating systems	DOS Windows XP Windows XP 64bit Windows Vista 32bit Wnindows Vista 64bit Windows 7 Windows 7 64bit
Graphics card	Radeon 3000
Maximum graphics card memory	1024 MB
Parallel processing technology support	Hybrid CrossFireX
RAID levels	0, 1, 10, JBOD
Controller interface type	SATA 3.0 Gb/s
Cables included	SATA
Bundled software	ASUS PC Probe II ASUS Update
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	203 mm
Width	244 mm
