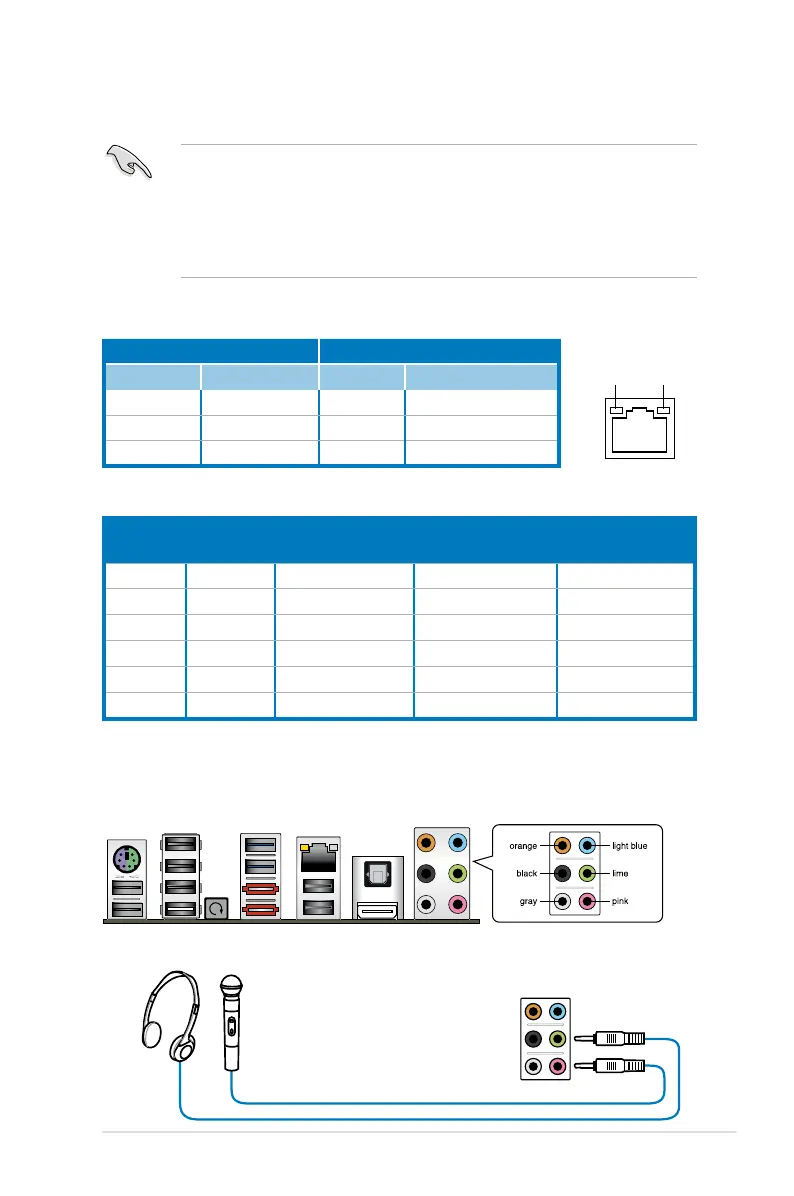

Asus MAXIMUS IV GENE-Z User Manual


Port H e a d s e t
2-channel
4-channel 6-channel 8-channel
Light Blue Line In Line In Line In Line In
Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Orange – – Center/Subwoofer Center/Subwoofer
Black – Rear Speaker Out Rear Speaker Out Rear Speaker Out
Gray – – – Side Speaker Out
* LAN port LED indications
SPEED
LED
ACT/LINK
LED
LAN port
Activity Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
• Due to USB 3.0 controller limitation, USB 3.0 devices can only be used
under Windows
®
OS environment and after the USB 3.0 driver installation.
• USB 3.0 devices can only be used as data storage only.
• We strongly recommend that you connect USB 3.0 devices to USB 3.0
ports for faster and better performance for your USB 3.0 devices.
2.3.11 Audio I/O connections
Audio I/O ports
Connect to Headphone and Mic
ASUS Maximus IV GENE-Z 2-49

Asus MAXIMUS IV GENE-Z Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Number of memory slots	4
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1200, 1300, 1333, 1600, 1800, 1866, 2133, 2200 MHz
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
USB 2.0 connectors	2
Number of EATX power connectors	1
Number of Parallel ATA connectors	0
Headphone outputs	6
USB 2.0 ports quantity	8
Component for	PC
Power source type	ATX
Motherboard chipset	Intel Z68
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows XP, Vista, 7 32/64-bit
PCI Express slots version	2.0
Maximum graphics card memory	1759 MB
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
RAID levels	0, 1, 5, 10
Networking features	10/100/1000 Mbit/sec
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Width	- mm
