Chapter 2: Hardware Information

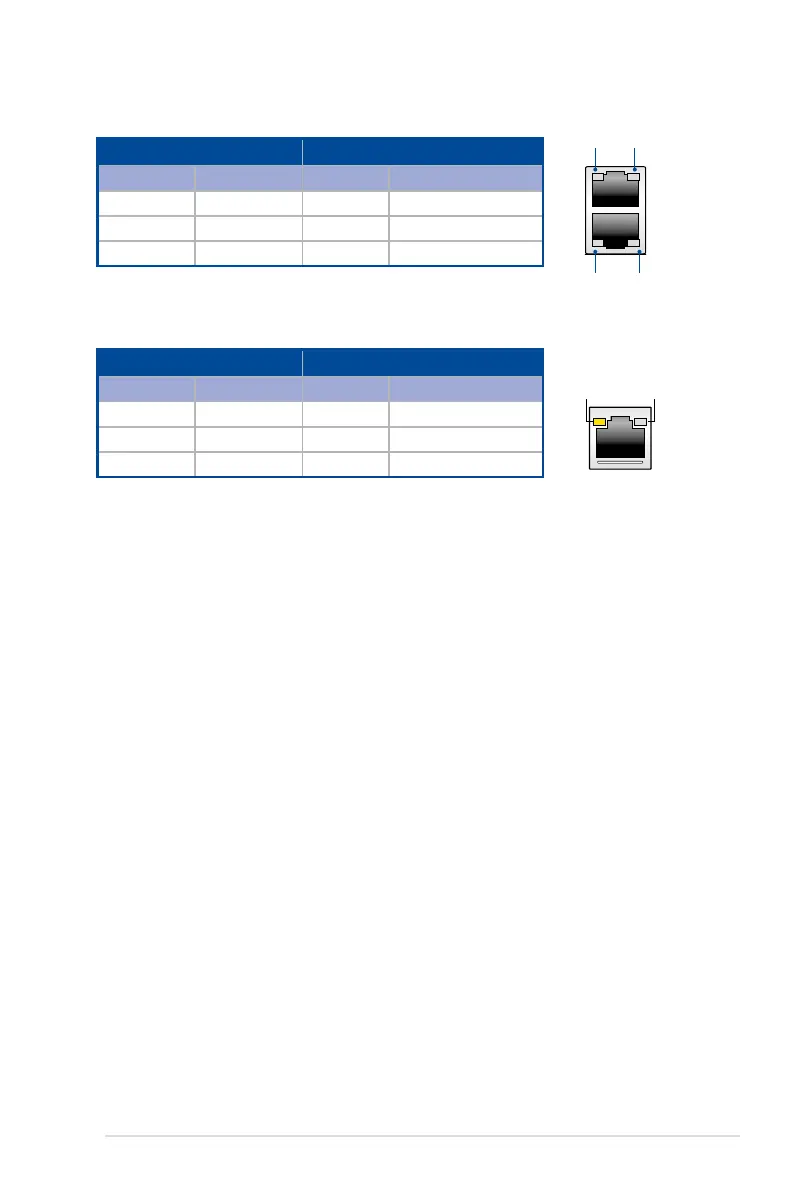

LAN port LED indications
Dedicated Management LAN port (DM_LAN1) LED indications
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbpsconnection
ORANGE Linked ORANGE 100Mbpsconnection
BLINKING Data activity GREEN 1Gbpsconnection
ACT/LINK
LED
SPEED
LED
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbpsconnection
ORANGE Linked ORANGE 100Mbpsconnection
BLINKING Data activity GREEN 1Gbpsconnection
