2-22
Chapter 2: Hardware Information
2.8 Connectors

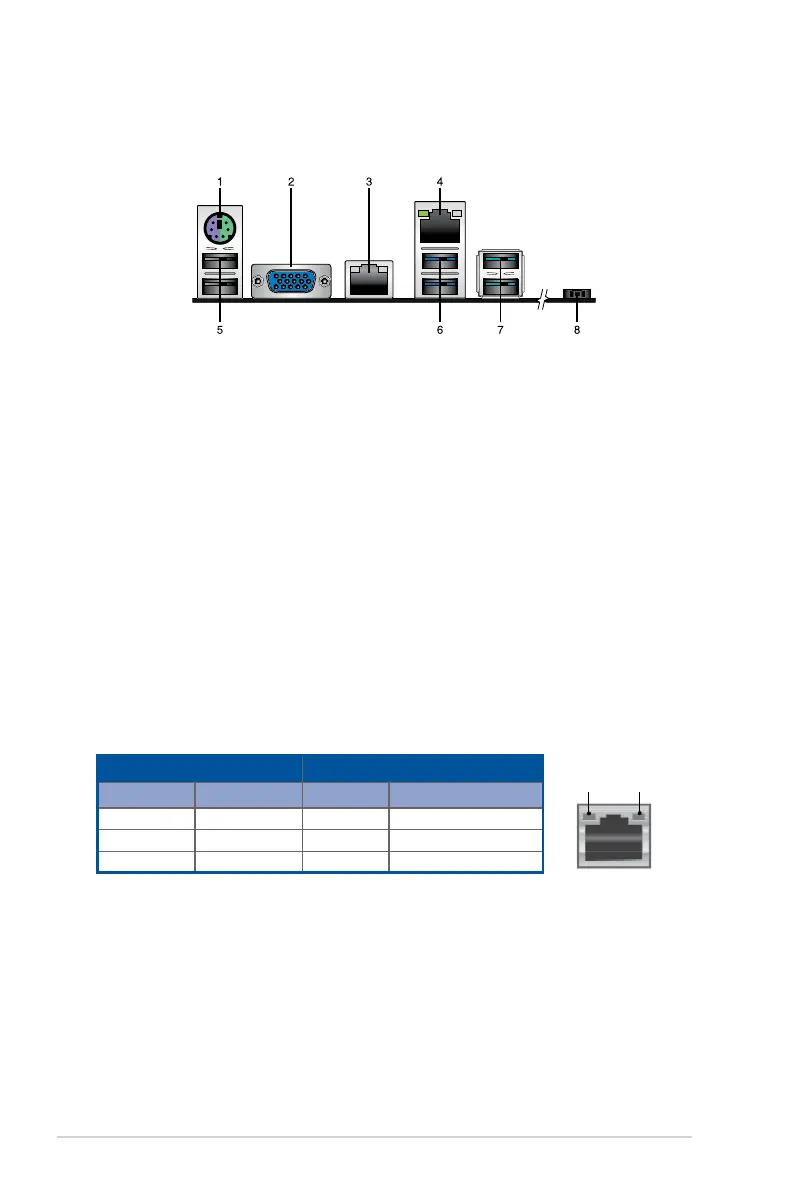

2.8.1 Rear panel connectors
1. PS/2 keyboard/mouse port (purple/green).
ThisportisforaPS/2keyboardor
mouse.
2. Video Graphics Adapter port.
ThisportisforaVGAmonitororotherVGA-compatible
devices.
3. RJ-45 port for LAN 1.
ThisportallowsGigabitconnectiontoaLocalAreaNetwork(LAN)
throughanetworkhub.RefertothetablebelowfortheLANportLEDindications.
4. RJ-45 port for LAN 2.
ThisportallowsGigabitconnectiontoaLocalAreaNetwork(LAN)
throughanetworkhub.RefertothetablebelowfortheLANportLEDindications.
5.
USB 2.0 ports 10 and 11.
Thesetwo4-pinUniversalSerialBus(USB)portsare
availableforconnectingUSB2.0devices.
6. USB 3.0 ports 5 and 6.
Thesetwo4-pinUSBportsareavailableforconnectingUSB3.0
devices.
7. USB 3.1 ports 1 and 2.
Thesetwo4-pinUSBportsareavailableforconnectingUSB3.1
devices.
8. Power-on Button.
Press this button to turn on the system.
LAN port LED indications
LAN port
SPEED
LED
ACT/LINK
LED
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbpsconnection
GREEN Linked ORANGE 100Mbpsconnection
BLINKING Data activity GREEN 1Gbpsconnection
