Asus P4C800 - Jumper Settings

ASUS P4C800 motherboard user guide 2-19
2.7 Jumpers
1. Keyboard power (3-pin KBPWR)
This jumper allows you to enable or disable the keyboard wake-up
feature. Set this jumper to pins 2-3 (+5VSB) if you wish to wake up the
computer when you press a key on the keyboard (the default is the
Space Bar). This feature requires an ATX power supply that can supply
at least 1A on the +5VSB lead, and a corresponding setting in the
BIOS (see section 4.5.1 Power Up Control).

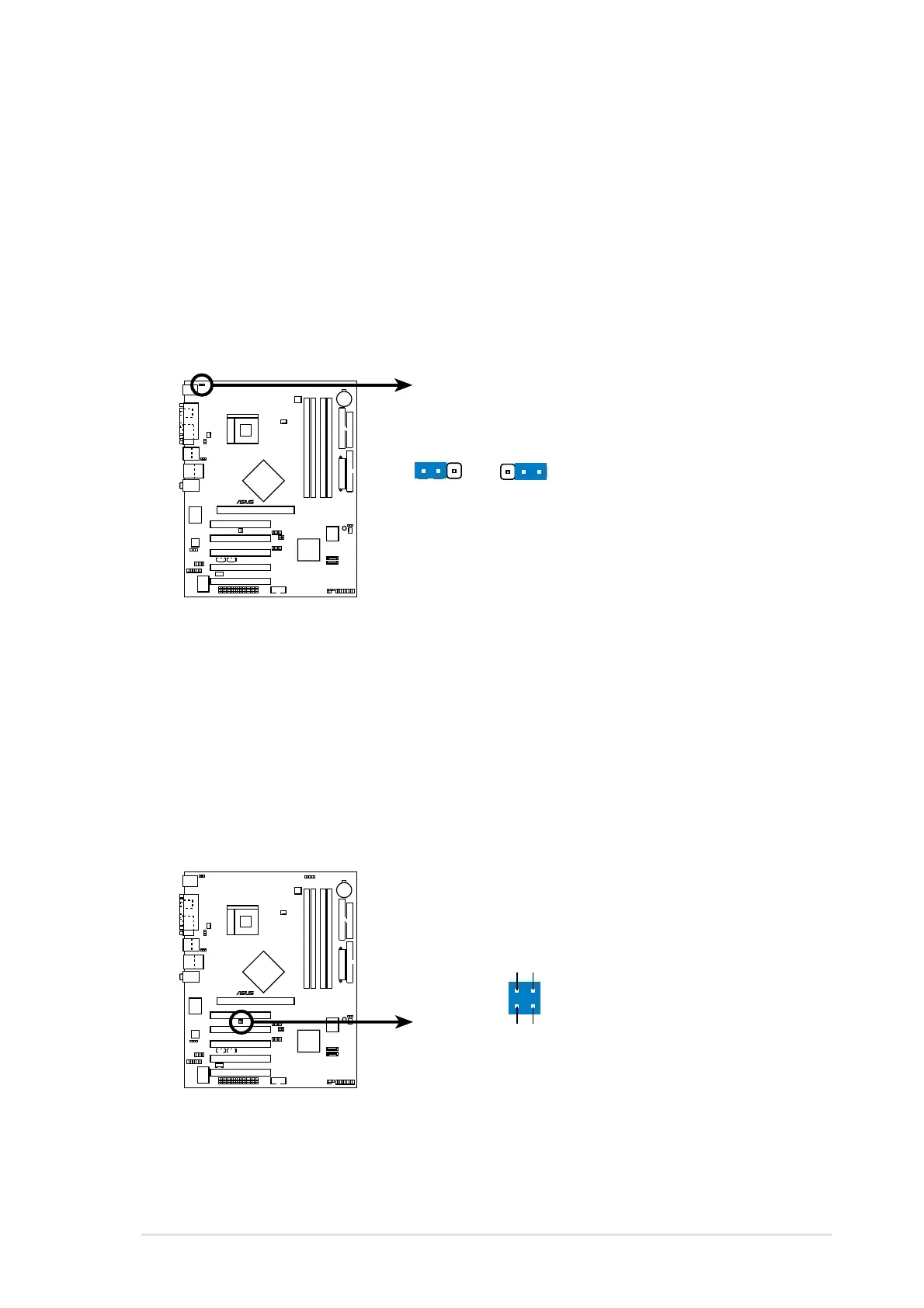

P4C800
®
P4C800 Keyboard Power Setting
(Default)
+5V +5VSB
KBPWR
2312
2. SMB2.0 (two 2-pin SMB20)
These jumpers allow you to enable or disable the SMBus 2.0 feature
supported on the motherboard. By default, these jumpers are shorted
(jumper caps on) to disable the feature. If you wish to install PCI
devices that comply with SMBus 2.0 specification, remove the jumper
caps to enable the SMBus 2.0 feature.
P4C800
®
P4C800 SMBus 2.0 Setting
SMB20
SMBDATA_ICH
1
SMBCLK_ICH
SMBDATA_PCI SMBCLK_PCI
