2-30 Chapter 2: Hardware information
7. USB headers (10-1 pin USB_56, USB_78)
If the USB ports on the rear panel are inadequate, two USB headers
are available for additional USB ports. The USB headers comply with
USB 2.0 specification that supports up to 480 Mbps connection speed.
This speed advantage over the conventional 12 Mbps on USB 1.1
allows faster Internet connection, interactive gaming, and simultaneous
running of high-speed peripherals.
You must install the driver before you can use the USB 2.0 capability.
NEVER connect a 1394 cable to any of the USB (blue) connectors.
Doing so will damage the motherboard!
P4P800 SE
®

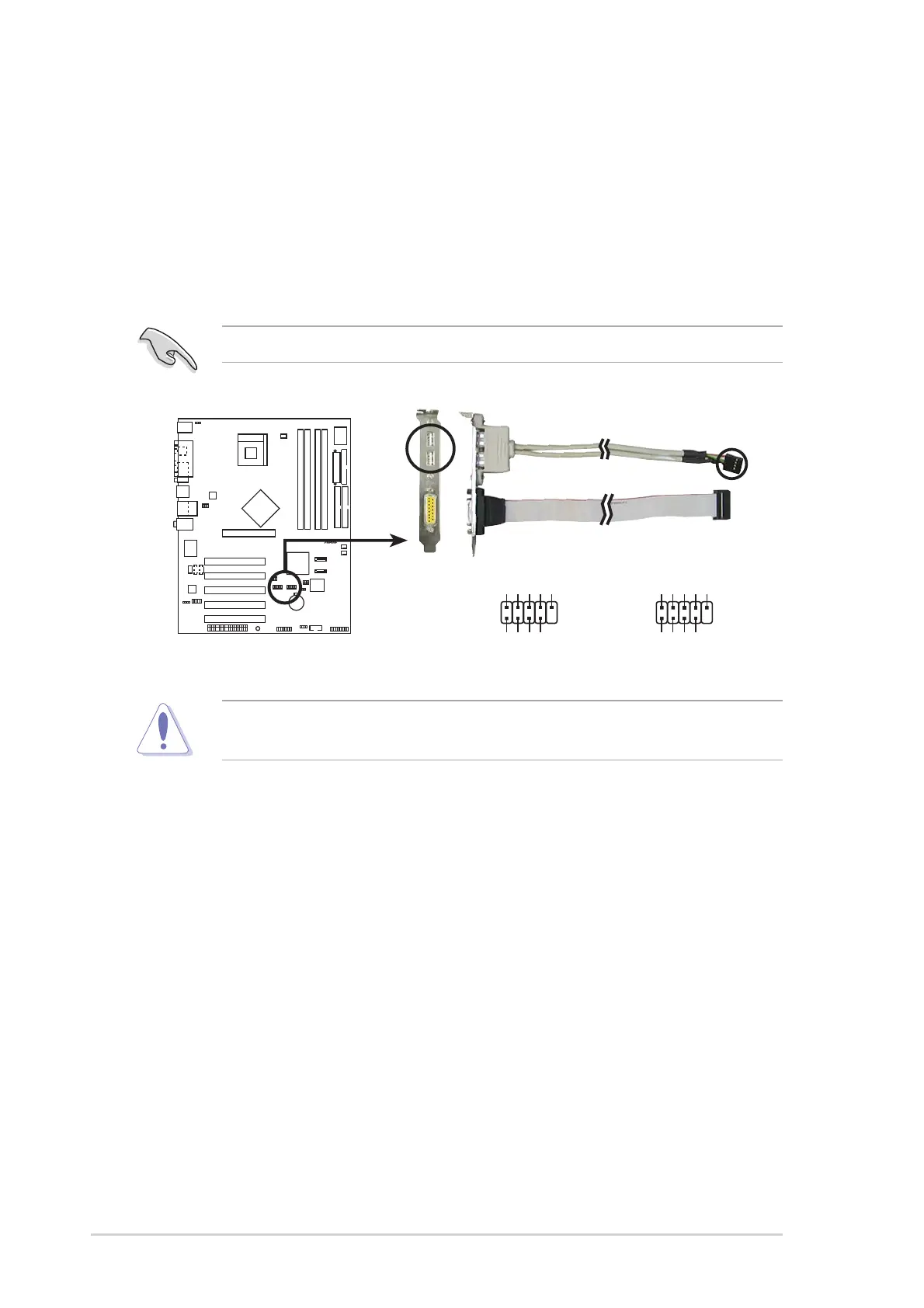

P4P800 SE USB 2.0 Header
USB56
USB+5V USB_P6- USB_P6+ GND NC
USB+5V
USB_P5-
USB_P5+
GND
1
USB78
USB+5V USB_P8- USB_P8+ GND NC
USB+5V
USB_P7-
USB_P7+
GND
1

Asus P4P800 SE Specifications

General

I/O ports	1 x Parallel 1 x Serial 1 x S/PDIF Output 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x Audio I/O 1 x RJ45 4 x USB 2.0/1.1
Controller interface type	UltraDMA 100/66/33, Serial ATA, RAID 0, 1
Motherboard form factor	ATX
Networking features	Marvell 88E8001 Gigabit Lan Controller 10/100/1000 BASE-T
Bundled software	Drivers ASUS PC Probe ASUS AI Booster Trend Micro PC-cillin anti-virus software (OEM version) ASUS LiveUpdate Utility
Processor socket	Socket 478
Processor manufacturer	Intel
