Asus P5B-VM User Manual

1-34 Chapter 1: Product introduction

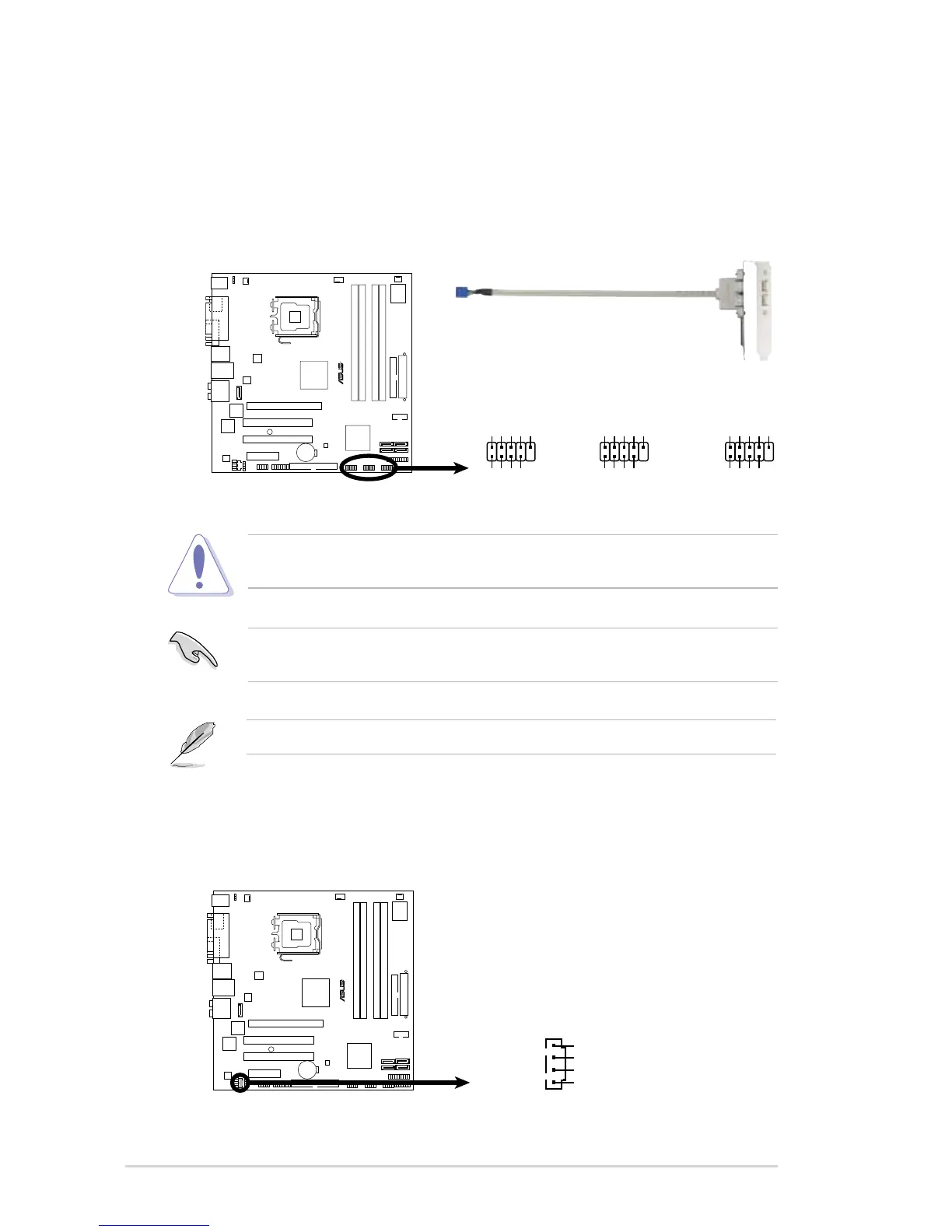

6. USB connectors (10-1 pin USB56, USB 78, USB910)
These connectors are for USB 2.0 ports. Connect the USB module cable
to any of these connectors, then install the module to a slot opening at the
back of the system chassis. These USB connectors comply with USB 2.0
specication that supports up to 480 Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
You can connect the USB cable to ASUS Q-Connector (USB, blue) rst, and
then install the Q-Connector (USB) to the USB connector onboard.
7. Optical drive audio connector (4-pin CD)
These connectors allow you to receive stereo audio input from sound sources
such as a CD-ROM, TV tuner, or MPEG card.
R
P5B-VM
P5B-VM Internal Audio Connector
CD
(black)
Right Audio Channel
Left Audio Channel
Ground
Ground
R
P5B-VM
P5B-VM USB 2.0 Connectors
USB78
USB56
USB910
USB+5V USB_P6- USB_P6+ GND NC
USB+5V
USB_P5-
USB_P5+
GND
1
USB+5V USB_P8- USB_P8+ GND NC
USB+5V
USB_P7-
USB_P7+
GND
1
USB+5V USB_P10- USB_P10+ GND NC
USB+5V
USB_P9-
USB_P9+
GND
1
The USB module is purchased separately.

Asus P5B-VM Specifications

General

ECC	No
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Maximum number of SMP processors	1
USB 2.0 connectors	3
S/PDIF out connector	Yes
Number of SATA connectors	5
Special features	- ASUS AI Gear - ASUS AI Nap - ASUS Advanced Q-Fan - ASUS Q-Connector - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS C.P.R. - ASUS MyLogo 2
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE, RPL
Controller interface type	JMicron JMB363 PATA & SATA
PS/2 ports quantity	2
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	ADI AD1988
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows
Bundled software	ASUS PC Probe II ASUS Update Anti-Virus
Networking features	Gigabit Ethernet
BIOS memory size	64 Mbit
RAID levels	0, 1, JBOD
Parallel processing technology support	Not supported

Weight and Dimensions

Width	245 mm
