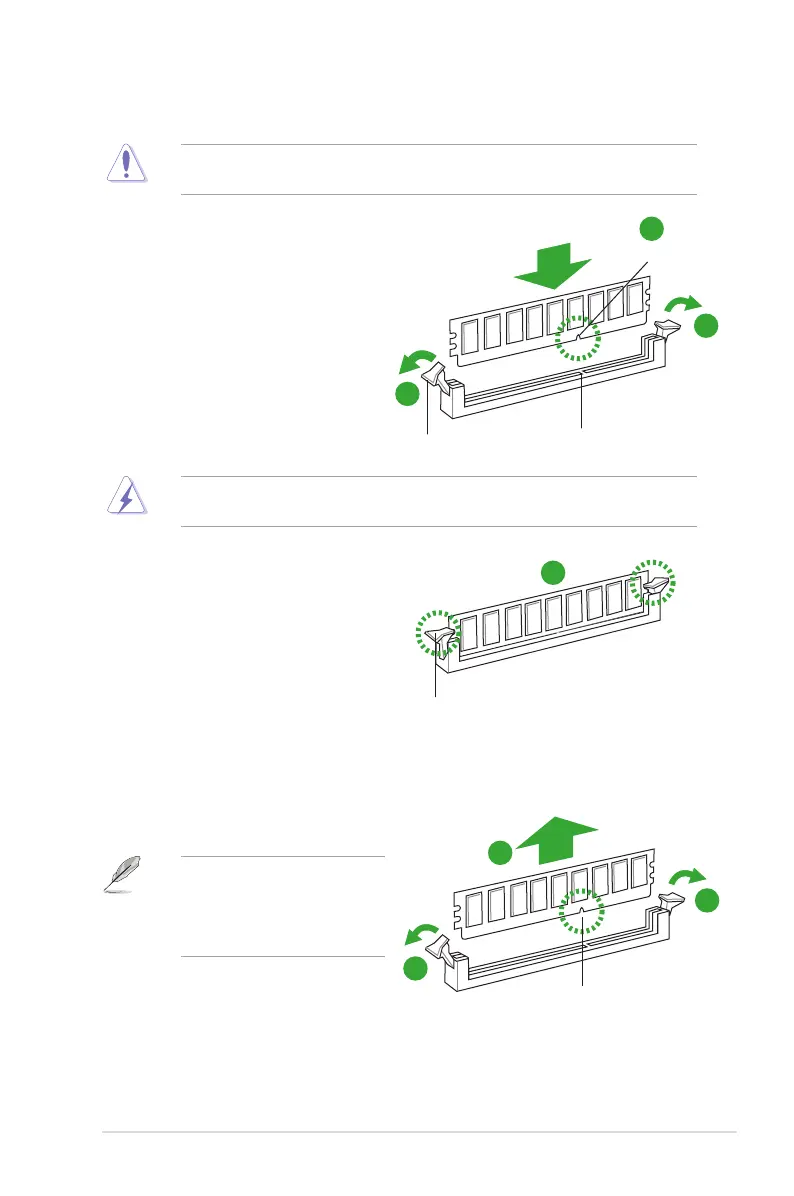

1.7.3 Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other system components.
Failure to do so can cause severe damage to both the motherboard and the components.
To install a DIMM:
1. Press the retaining clips outward to
unlock a DIMM socket.
2. Align a DIMM on the socket such that
the notch on the DIMM matches the
DIMM slot key on the socket.
A DIMM is keyed with a notch so that it ts in only one direction. DO NOT force a DIMM into
a socket in the wrong direction to avoid damaging the DIMM.
3. Firmly insert the DIMM into the socket
until the retaining clips snap back in place
and the DIMM is properly seated.
Locked Retaining Clip
3
1.7.4 Removing a DIMM
To remove a DIMM:
1. Simultaneously press the retaining clips
outward to unlock the DIMM.
2. Remove the DIMM from the socket.
Support the DIMM lightly with
your ngers when pressing the
retaining clips. The DIMM might
get damaged when it ips out with
extra force.
DIMM notch
1
1
2
Unlocked retaining clip
1
DIMM notch
2
1
DIMM slot key

Asus P5G41C-M LX Specifications

General

Form Factor	Micro ATX
Chipset	Intel G41
CPU Socket	LGA 775
Memory Type	DDR3 / DDR2
Memory Slots	2
Maximum Memory	8 GB
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 1 x PCI
Storage Interface	4 x SATA 3Gb/s
Integrated Graphics	Intel GMA X4500
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Video Outputs	1 x VGA
LAN	Realtek Gigabit LAN
USB Ports	8 x USB 2.0 (4 at back panel, 4 at mid-board)
