1-28 Chapter 1: Product introduction

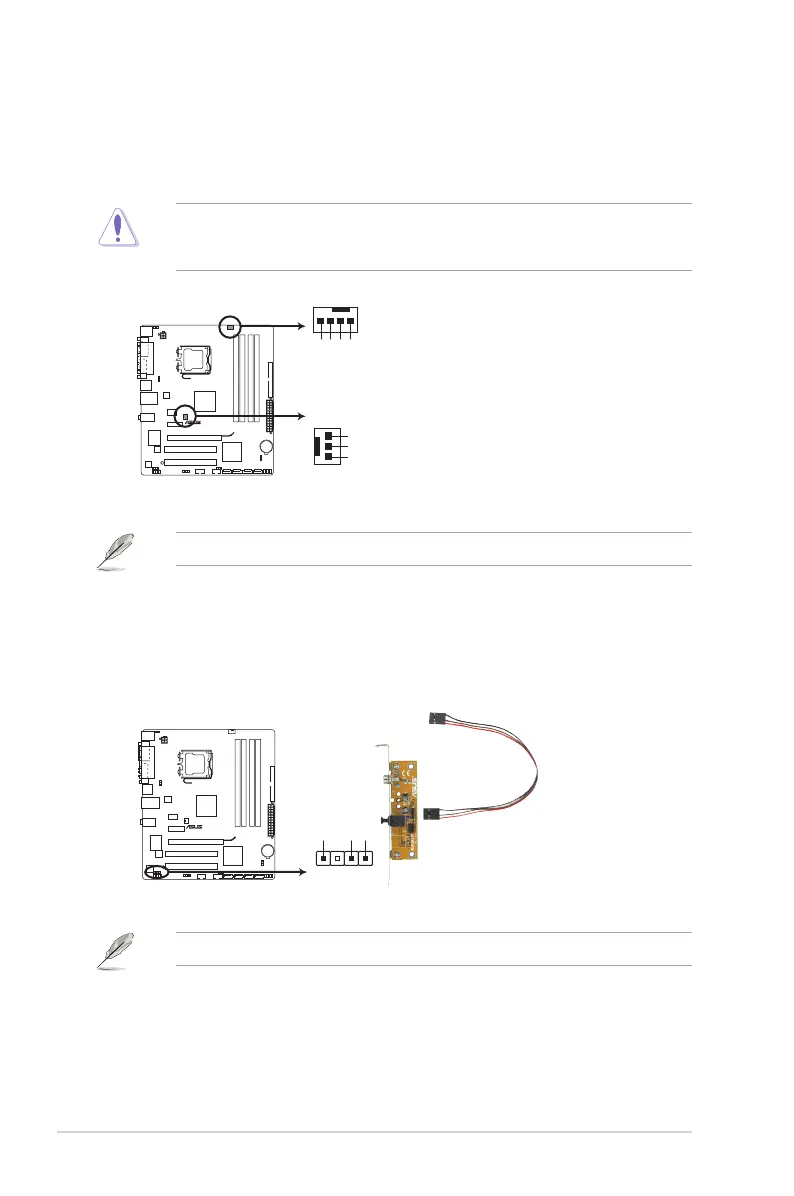

6. CPU and chassis fan connectors (4-pin CPU_FAN, 3-pin CHA_FAN)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors. Insufcient air ow inside the
system may damage the motherboard components. These are not jumpers! Do not place
jumper caps on the fan connectors!
Only the 4-pin CPU fan supports the ASUS Q-FAN feature.
7. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port. Connect
the S/PDIF Out module cable to this connector, then install the module to a slot
opening at the back of the system chassis.
The S/PDIF module is purchased separately.
CPU_FAN
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
GND
+12V
Rotation
CHA_FAN
P5G41C-M LX
P5G41C-M LX fan connectors
P5G41C-M LX
P5G41C-M LX Digital audio connector
SPDIF_OUT
+5V SPDIFOUT GND

Asus P5G41C-M LX Specifications

General

Form Factor	Micro ATX
Chipset	Intel G41
CPU Socket	LGA 775
Memory Type	DDR3 / DDR2
Memory Slots	2
Maximum Memory	8 GB
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 1 x PCI
Storage Interface	4 x SATA 3Gb/s
Integrated Graphics	Intel GMA X4500
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Video Outputs	1 x VGA
LAN	Realtek Gigabit LAN
USB Ports	8 x USB 2.0 (4 at back panel, 4 at mid-board)
