Asus P5G41T-M LX User Manual

1-6 Chapter 1: Product introduction

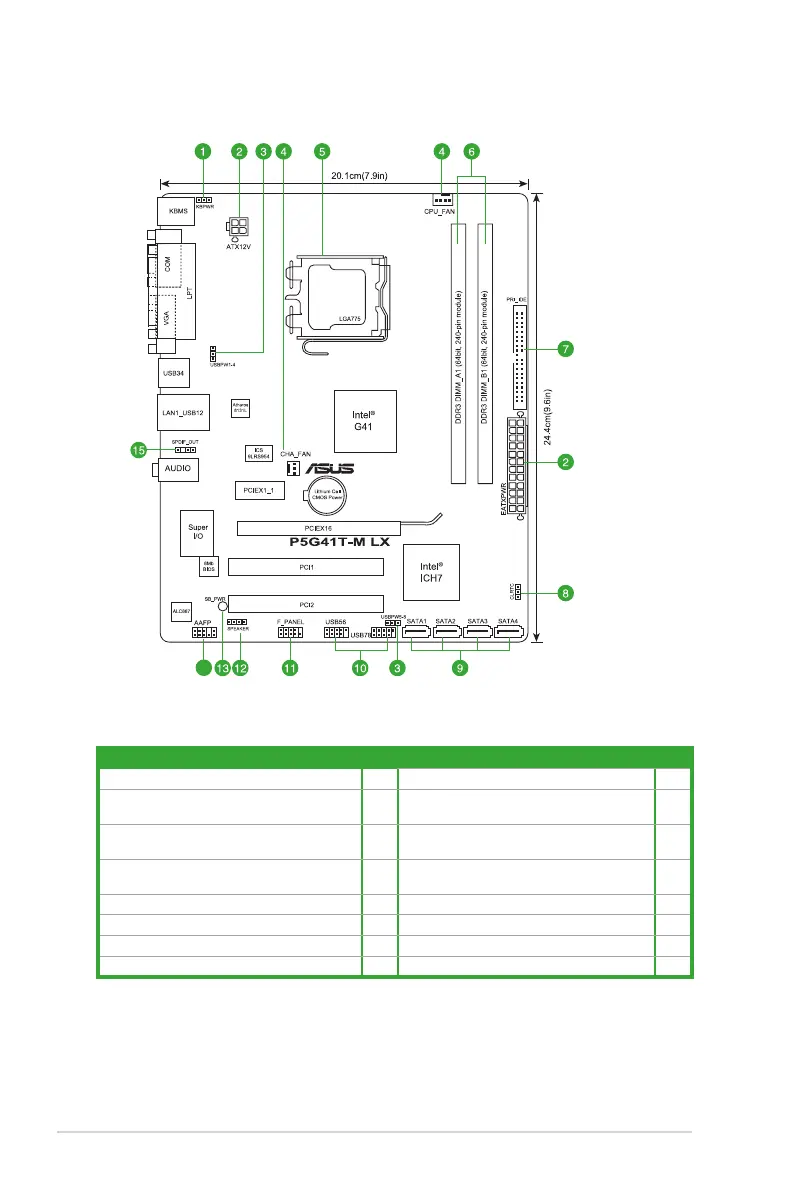

1.5.3 Motherboard layout
14
1.5.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. Keyboard power (3-pin KBPWR) 1-19 9. Serial ATA connectors (7-pin SATA1-4) 1-24
2. ATX power connectors (24-pin EATXPWR,
4-pin ATX12V)
1-23 10. USB connectors (10-1 pin USB56, USB78) 1-24
3. USB device wake-up (3-pin USBPW1-4, 3-pin
USBPW5-8)
1-19 11. System panel connector (10-1 pin F_PANEL) 1-26
4. CPU and chassis fan connectors
(4-pin CPU_FAN, 3-pin CHA_FAN)
1-25 12. Speaker connector (4-pin SPEAKER) 1-26
5. Intel LGA775 CPU socket 1-7 13. Onboard LED (SB_PWR) 1-4
6. DDR3 DIMM slots 1-12 14. Front panel audio connector (10-1 pin AAFP) 1-21
7. IDE connector (40-1 pin PRI_IDE) 1-22 15. Digital audio connector (4-1 pin SPDIF_OUT) 1-25
8. Clear RTC RAM (3-pin CLRTC) 1-18

Asus P5G41T-M LX Specifications

General

Non-ECC	Yes
Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Number of SATA connectors	4
Number of EATX power connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC887
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Graphics card	GMA X4500
Maximum graphics card memory	1024 MB
Controller interface type	SATA 3 Gb/s
Controller 2nd interface type	UltraDMA 100/66/33
Networking features	Gigabit Ethernet
ACPI version	2.0
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	201 mm
Width	244 mm
