1.10 Connectors

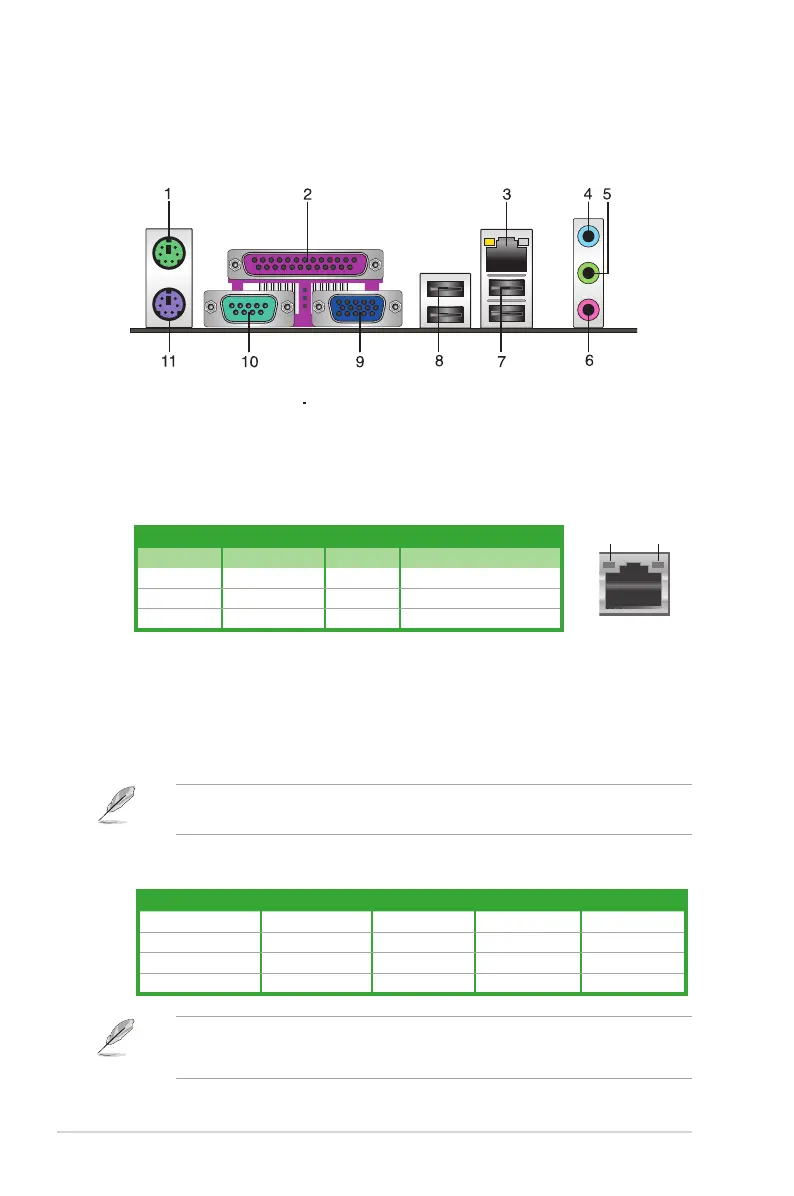

1.10.1 Rear panel connectors
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or other devices.
3. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED indications.
LAN port LED indications
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
4. Line In port (light blue). This port connects to the tape, CD, DVD player, or other
audio sources.
5. Line Out port (lime). This port connects to a headphone or a speaker. In the 4, 6, and
8-channel congurations, the function of this port becomes Front Speaker Out.
6. Microphone port (pink). This port connects to a microphone.
LAN port
SPEED
LED
ACT/LINK
LED
Refer to the audio conguration table below for the function of the audio ports in a 2, 4, 6,
or 8-channel conguration.
Audio 2, 4, 6, or 8-channel conguration
Port Headset 2-channel 4-channel 6-channel 8-channel
Light Blue (Rear panel) Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out
Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink (Rear panel) Mic In Mic In Bass/Center Bass/Center
Lime (Front panel) – – – Side Speaker Out
To congure an 8-channel audio output:
Use the chassis with HD audio module in the front panel to support 8-channel audio output.

Asus P5G41T-M LX Specifications

General

Non-ECC	Yes
Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Number of SATA connectors	4
Number of EATX power connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC887
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Graphics card	GMA X4500
Maximum graphics card memory	1024 MB
Controller interface type	SATA 3 Gb/s
Controller 2nd interface type	UltraDMA 100/66/33
Networking features	Gigabit Ethernet
ACPI version	2.0
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	201 mm
Width	244 mm
