2-28 Chapter 2: Hardware information

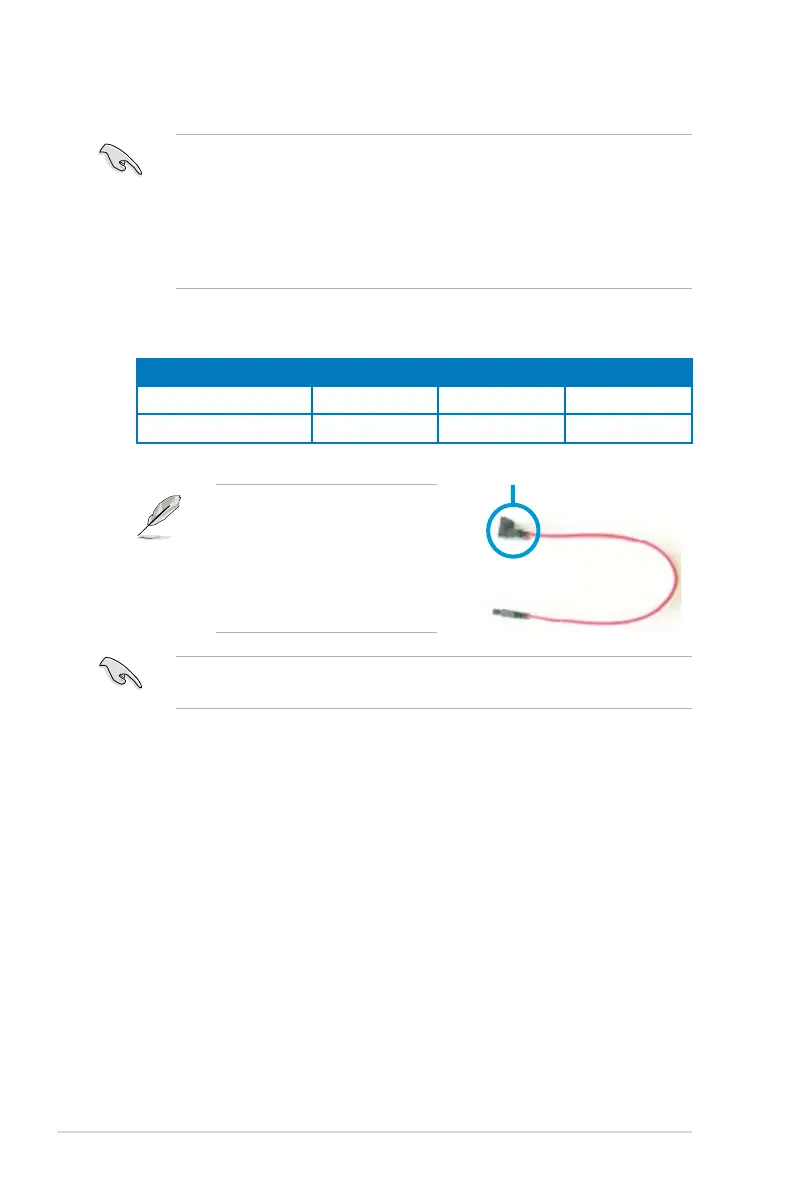

Connect the right-angle side
of SATA signal cable to SATA
device. Or you may connect the
right-angle side of SATA cable to
the onboard SATA port to avoid
mechanical conict with huge
graphics cards.
right angle side
•
You must install the Windows
®
XP Service Pack 1 or later version before
using Serial ATA hard disk drives. The Serial ATA RAID feature (RAID 0,
RAID 1, RAID 5, and RAID 10) is available only if you are using Windows
®
XP or later version.
•
When using the connectors in Standard IDE mode, connect the primary
(boot) hard disk drive to the SATA1/2/5 connector. Refer to the table below
for the recommended SATA hard disk drive connections.
Serial ATA hard disk drive connection
Connector Color Setting Use
SATA1/2/5/6 Red Master Boot disk
SATA3/4 Black Slave Data Disk
When using hot-plug and NCQ, set the Congure SATA as in the BIOS to
[AHCI]. See section 4.3.6 SATA Conguration for details.
