Asus P5K-VM User Manual

ASUS P5K-VM 1-9

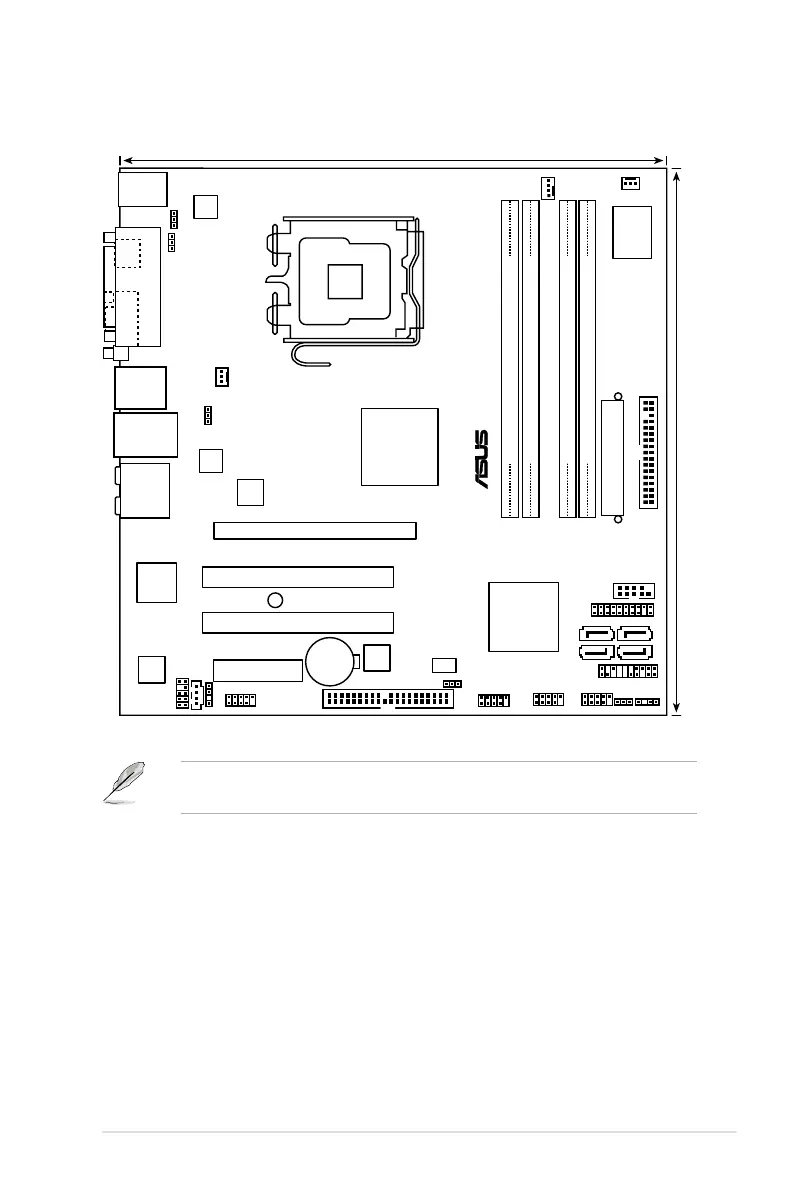

1.5.3 Motherboard layout
VGA
PANEL
P5K-VM
®
AAFP
CHASSIS
24.4cm (9.6in)
24.4cm (9.6in)
CPU_FAN
DDR2 DIMM_B1 (64 bit,240-pin module) DDR2 DIMM_A1 (64 bit,240-pin module) DDR2 DIMM_A2 (64 bit,240-pin module)
DDR2 DIMM_B2 (64 bit,240-pin module)
Super
I/O
CD
PCIEX4_1
CLRTC
Intel
®
ICH9
EATXPWR
CR2032 3V
Lithium Cell
CMOS Power
Intel
®
MCH
G33
PCI1
PCIEX16_1
CHA_FAN1
SPDIF_OUT
LGA775
IE1394_2
BIOS
SATA1
ATX12V
ALC883
PWR_FAN
PCI2
F_USB34
KB_USB56
LAN1_USB12
VIA
VT6308S
PRI_EIDE
KBPWR
USB78
SB_PWR
COM1
USBPW1-4
USBPW9-12
AUDIO
USB910USB1112
ASM4131
88E8056
USBPW5-8
SATA2
SATA4
SATA3
FLOPPY
PARALLEL PORT
SPDIF
JMicron
JMB368
Refer to 1.10 Connectors for more information about rear panel connectors
and internal connectors.

Asus P5K-VM Specifications

General

ECC	No
Non-ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Maximum number of SMP processors	1
USB 2.0 connectors	6
Special features	ASUS AI Lifestyle Features: - AP Trigger. - ASUS AI Gear2. - ASUS AI Nap. - ASUS Q-Fan. ASUS Crystal Sound: - ASUS Noise Filter. ASUS EZ DIY: - ASUS Q-Connector. - ASUS CrashFree BIOS 3. - ASUS EZ Flash 2.
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Controller interface type	Serial ATA
Controller 2nd interface type	UltraDMA 100/66/33
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC883
Power source type	ATX
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II ASUS Update
Graphics card	GMA 3100
Maximum graphics card memory	256 MB
LAN controller	Marvell 88E8056
Networking features	Gigabit Ethernet
BIOS memory size	64 Mbit

Weight and Dimensions

Width	244 mm
