1.6.3 Uninstalling the CPU heatsink and fan

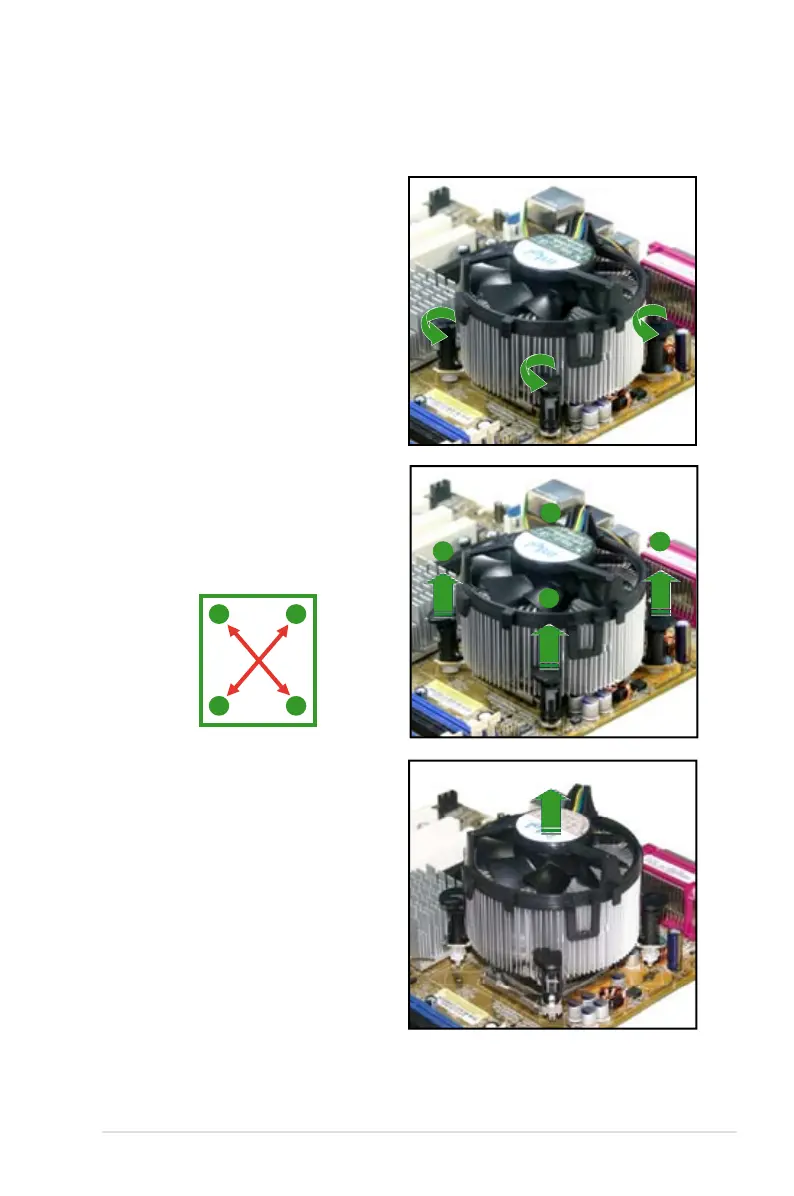

To uninstall the CPU heatsink and fan:
1. Disconnect the CPU fan cable from
the connector on the motherboard.
2. Rotate each fastener
counterclockwise.
3. Pull up two fasteners at a time in
a diagonal sequence to disengage
the heatsink and fan assembly
from the motherboard.
B
B
A
A
A
A
B
B
4. Carefully remove the heatsink
and fan assembly from the
motherboard.

Asus P5K-VM Specifications

General

ECC	No
Non-ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Maximum number of SMP processors	1
USB 2.0 connectors	6
Special features	ASUS AI Lifestyle Features: - AP Trigger. - ASUS AI Gear2. - ASUS AI Nap. - ASUS Q-Fan. ASUS Crystal Sound: - ASUS Noise Filter. ASUS EZ DIY: - ASUS Q-Connector. - ASUS CrashFree BIOS 3. - ASUS EZ Flash 2.
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Controller interface type	Serial ATA
Controller 2nd interface type	UltraDMA 100/66/33
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC883
Power source type	ATX
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II ASUS Update
Graphics card	GMA 3100
Maximum graphics card memory	256 MB
LAN controller	Marvell 88E8056
Networking features	Gigabit Ethernet
BIOS memory size	64 Mbit

Weight and Dimensions

Width	244 mm
