• For a fully congured system, we recommend that you use a power supply
unit (PSU) that complies with ATX 12 V Specication 2.0 (or later version)
and provides a minimum power of 400 W.
• Do not forget to connect the 4-pin EATX12V power plug; otherwise, the
system will not boot.
• Use of a PSU with a higher power output is recommended when
conguring a system with more power-consuming devices. The system
may become unstable or may not boot up if the power is inadequate.
• The ATX 12 V Specication 2.0-compliant (400W) PSU has been tested
to support the motherboard power requirements with the following
conguration:
CPU: Intel
®
Pentium
®
Extreme 3.73GHz
Memory: 512 MB DDR2 (x4)
Graphics card: ASUS EAX1900XT
Parallel ATA device: IDE hard disk drive
Serial ATA device: SATA hard disk drive (x2)
Optical drive: DVD-RW
• If you want to use two high-end PCI Express x16 cards, use a PSU with
500W to 600W power or above to ensure the system stability.
12. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)
These connectors are for ATX power supply plugs. The power supply plugs
are designed to t these connectors in only one orientation. Find the proper
orientation and push down rmly until the connectors completely t.
P5K-VM
®

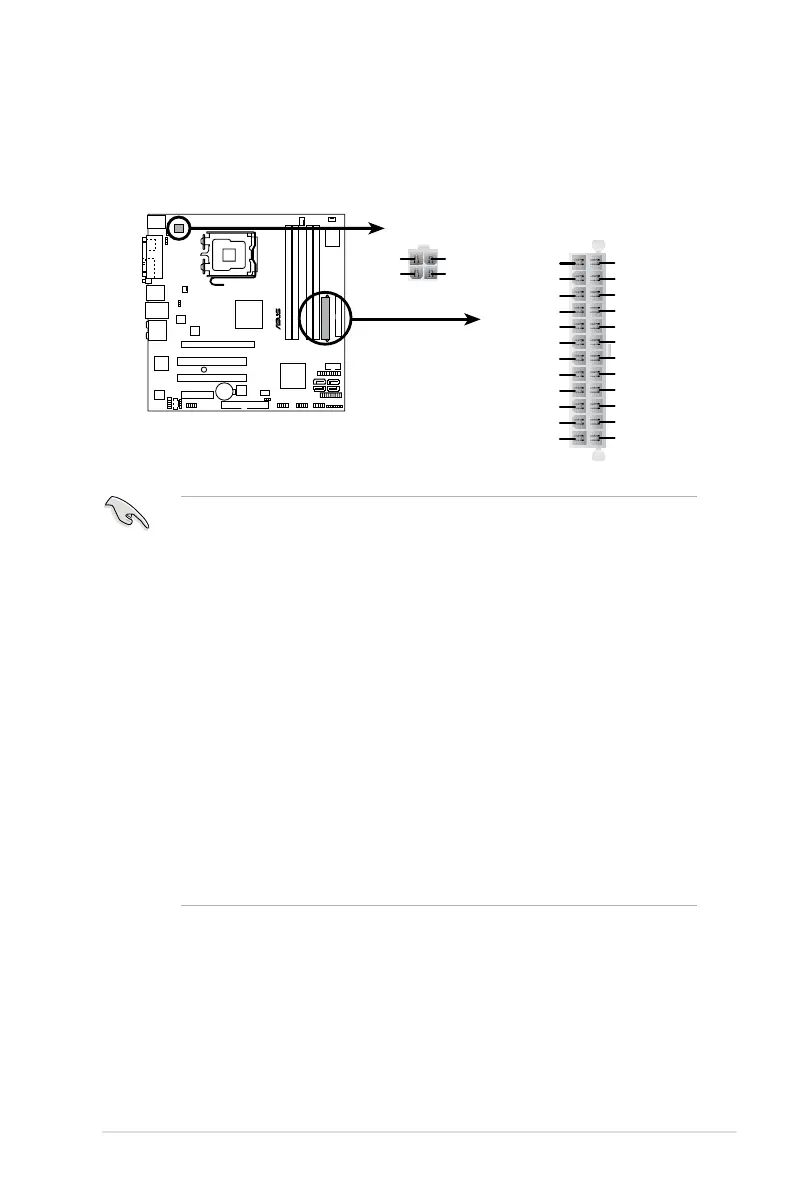

P5K-VM ATX power connectors
EATXPWR
+3 Volts
+3 Volts
Ground
+5 Volts
+5 Volts
Ground
Ground
Power OK
+5V Standby
+12 Volts
-5 Volts
+5 Volts
+3 Volts
-12 Volts
Ground
Ground
Ground
PSON#
Ground
+5 Volts
+12 Volts
+3 Volts
+5 Volts
Ground
ATX12V
+12V DC
GND
+12V DC
GND

Asus P5K-VM Specifications

General

ECC	No
Non-ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Maximum number of SMP processors	1
USB 2.0 connectors	6
Special features	ASUS AI Lifestyle Features: - AP Trigger. - ASUS AI Gear2. - ASUS AI Nap. - ASUS Q-Fan. ASUS Crystal Sound: - ASUS Noise Filter. ASUS EZ DIY: - ASUS Q-Connector. - ASUS CrashFree BIOS 3. - ASUS EZ Flash 2.
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Controller interface type	Serial ATA
Controller 2nd interface type	UltraDMA 100/66/33
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC883
Power source type	ATX
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II ASUS Update
Graphics card	GMA 3100
Maximum graphics card memory	256 MB
LAN controller	Marvell 88E8056
Networking features	Gigabit Ethernet
BIOS memory size	64 Mbit

Weight and Dimensions

Width	244 mm
