ASUS P5LP-LE (Lithium-UL8E)ASUS P5LP-LE (Lithium-UL8E)
ASUS P5LP-LE (Lithium-UL8E)ASUS P5LP-LE (Lithium-UL8E)
ASUS P5LP-LE (Lithium-UL8E)
3.3.
3.3.
3.
ATX power connectors (24-pin ATXPWR, 4-pin ATX12V)ATX power connectors (24-pin ATXPWR, 4-pin ATX12V)
ATX power connectors (24-pin ATXPWR, 4-pin ATX12V)ATX power connectors (24-pin ATXPWR, 4-pin ATX12V)
ATX power connectors (24-pin ATXPWR, 4-pin ATX12V)
These connectors are for ATX power supply plugs. The power supply
plugs are designed to fit these connectors in only one orientation.
Find the proper orientation and push down firmly until the connectors
completely fit.
• Do not forget to connect the 4-pin ATX +12 V power plug;
otherwise, the system will not boot up.
• Make sure that your ATX 12V power supply can provide 8A on the
+12V lead and at least 1A on the +5-volt standby lead (+5VSB).
The minimum recommended wattage is 230W, or 300W for a fully
configured system. The system can become unstable and might
experience difficulty powering up if the power supply is inadequate.
• You must install a PSU with a higher power rating if you intend to
install additional devices.
P5LP-LE

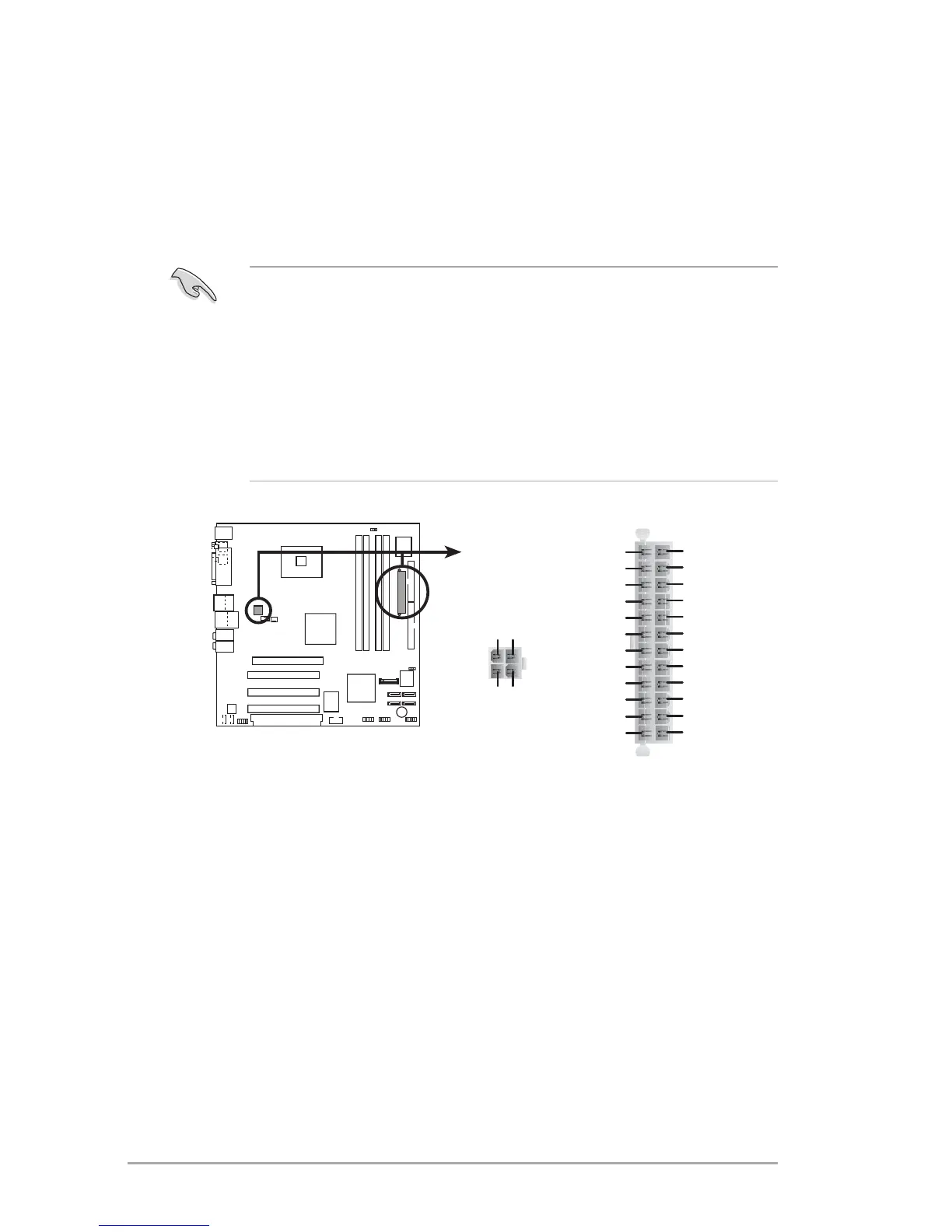

P5LP-LE ATX power connectors
ATXPWR
ATX12V
+12V DCGND
+12V DCGND
+3 Volts
+3 Volts
Ground
+5 Volts
+5 Volts
Ground
Ground
Power OK
+5V Standby
+12 Volts
-5 Volts
+5 Volts
+3 Volts
-12 Volts
Ground
Ground
Ground
PSON#
Ground
+5 Volts
+12 Volts
+3 Volts
+5 Volts
Ground
