1-20 Chapter 1: Product introduction
1.10 Connectors

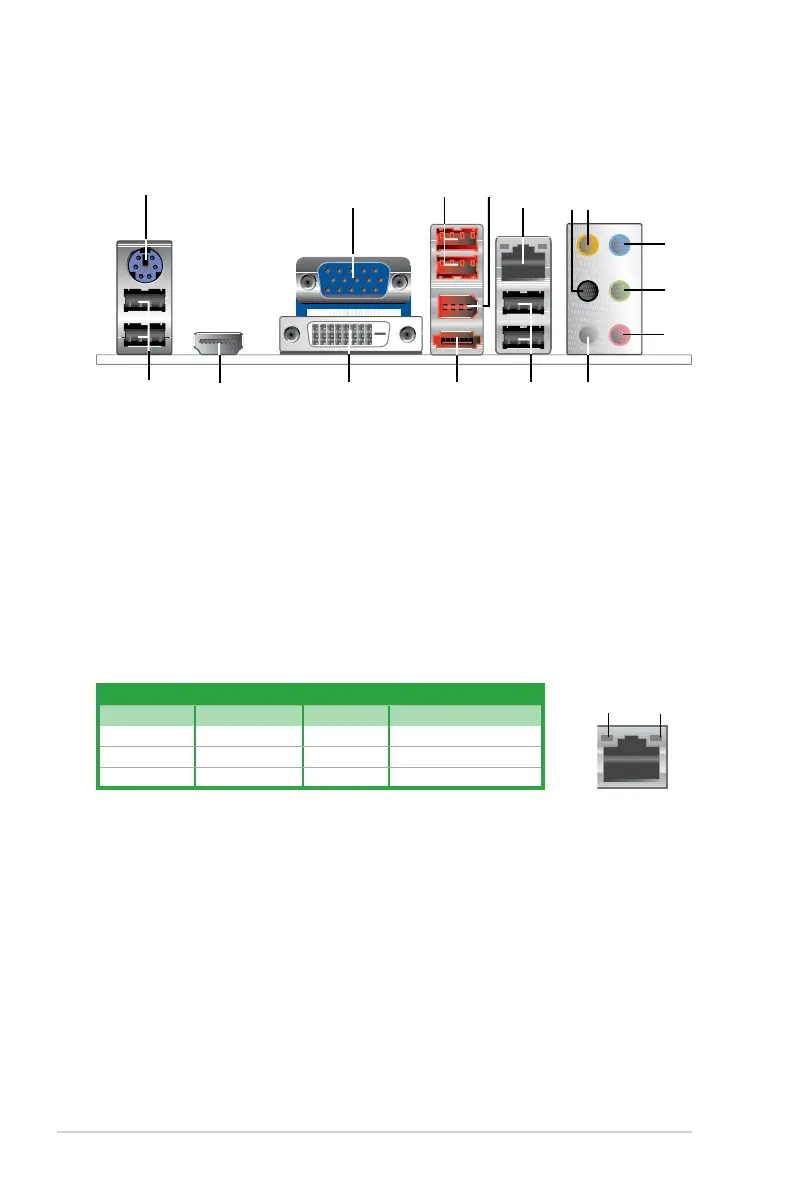

1.10.1 Rear panel connectors
1. PS/2 mouse / keyboard port (green). This port is for a PS/2 mouse / keyboard.
2. Video Graphics Adapter (VGA) port
. This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
3. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
4. IEEE1394a port.
This 6-pin IEEE 1394a port provides high-speed connectivity for
audio/video devices, storage peripherals, PCs, or portable devices.
5. LAN (RJ-45) port. Supported by Marvell Gigabit LAN controller, this port allows Gigabit
connection to a Local Area Network (LAN) through a network hub. Refer to the table
below for the LAN port LED indications.
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
LAN port LED indications
SPEED
LED
ACT/LINK
LED
LAN port
6. Rear Speaker Out port (black).
This port connects the rear speakers in a 4-channel,
6-channel, or 8-channel audio conguration..
7. Center / Subwoofer port (orange).
This port connects the center / subwoofer
speakers.
8. Line In port (light blue)
. This port connects the tape, CD, DVD player, or other audio
sources.
9. Line Out port (lime).
This port connects a headphone or a speaker. In 4-channel, 6-
channel, and 8-channel conguration, the function of this port becomes Front Speaker
Out.
10. Microphone port (pink).
This port connects a microphone.
