1.7 System memory
1.7.11.7.1
1.7.11.7.1
1.7.1
OverviewOverview
OverviewOverview
Overview
The motherboard comes with four 184-pin Double Data Rate (DDR) Dual
Inline Memory Modules (DIMM) sockets.

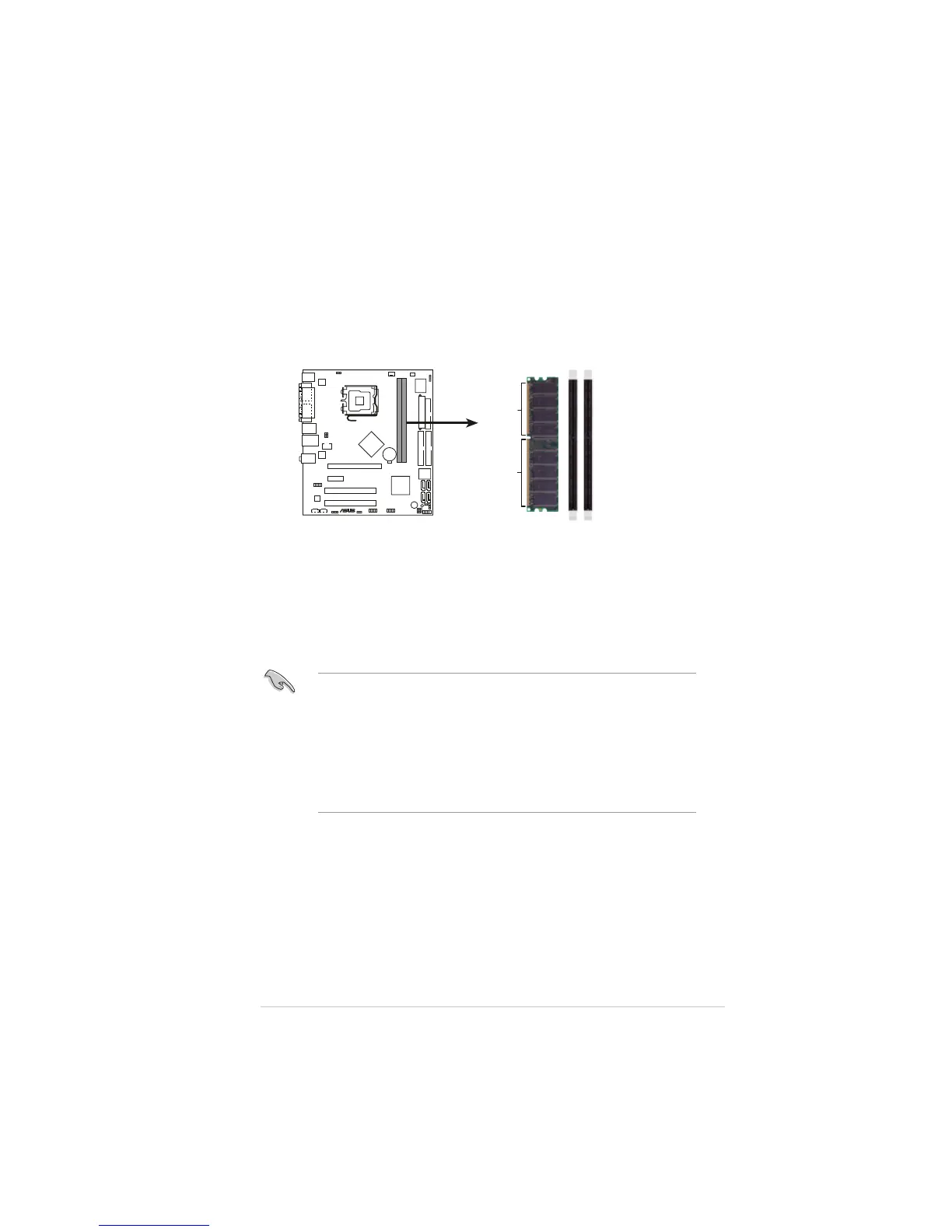

The following figure illustrates the location of the sockets:
®
P5RD1-VM
P5RD1-VM 184-pin DDR DIMM sockets
80 Pins104 Pins
DIMM2
DIMM1
1.7.21.7.2
1.7.21.7.2
1.7.2
Memory configurationsMemory configurations
Memory configurationsMemory configurations
Memory configurations
You may install 32MB, 64MB, 128 MB, 256 MB, 512 MB, and 1 GB
unbuffered ECC/non-ECC DDR DIMMs into the DIMM sockets using the
memory configurations in this section.
• Installing DDR DIMMs other than the recommended configurations
may cause memory sizing error or system boot failure. Use any of
the recommended configurations on the next page.
• Always install DIMMs with the same CAS latency. For optimum
compatibility, it is recommended that you obtain memory modules
from the same vendor.
• Due to chipset limitation, this motherboard does not support DIMM
modules with less than or equal to 64 Mbit memory chips.
