ASUS P7P55D PRO 2-27
Chapter 2
2.8 Connectors
2.8.1 Rear panel connectors

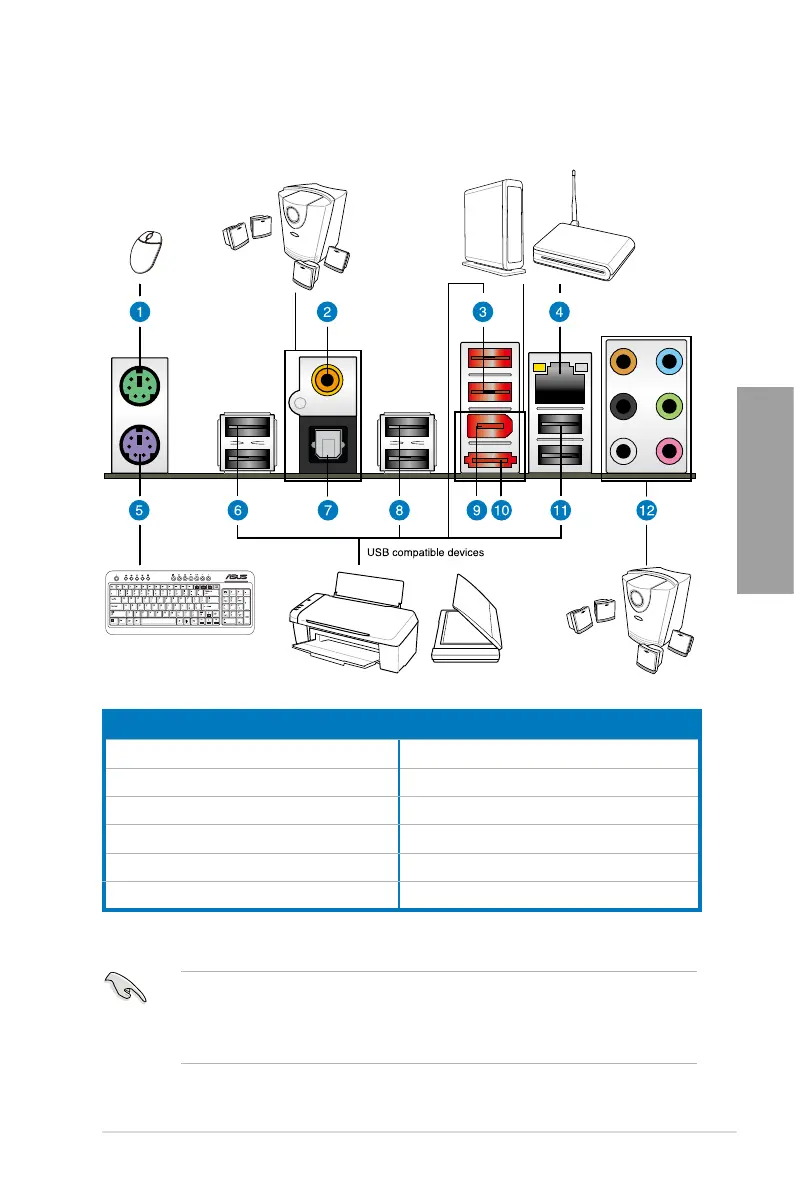

Rear panel connectors
1. PS/2 mouse port (green) 7. Optical S/PDIF Out port
2. Coaxial S/PDIF Out port 8. USB 2.0 ports 3 and 4
3. USB 2.0 ports 5 and 6 9. IEEE 1394a port
4. LAN (RJ-45) port* 10. External SATA port
5. PS/2 keyboard port (purple) 11. USB 2.0 ports 1 and 2
6. USB 2.0 ports 7 and 8 12. Audio I/O ports**
*and **: Refer to the tables on the next page for LAN port and audio port denitions.
• DO NOT insert a different connector to the external SATA port.
• To enable external SATA device hot-plugging, set the
J-Micron eSATA/PATA
Controller
item in the BIOS setting to [AHCI Mode], and then reboot the system. Refer
to
section 3.6.3 Onboard Device Conguration
for details.
