1-7Chapter 1: Product introduction
1.3.2 Installing the CPU heatsink and fan
The Intel
®
LGA1155 processor requires a specially designed heatsink and fan assembly to
ensure optimum thermal condition and performance.
Apply the Thermal Interface Material
to the CPU heatsink and CPU
before you install the heatsink and
fan if necessary.

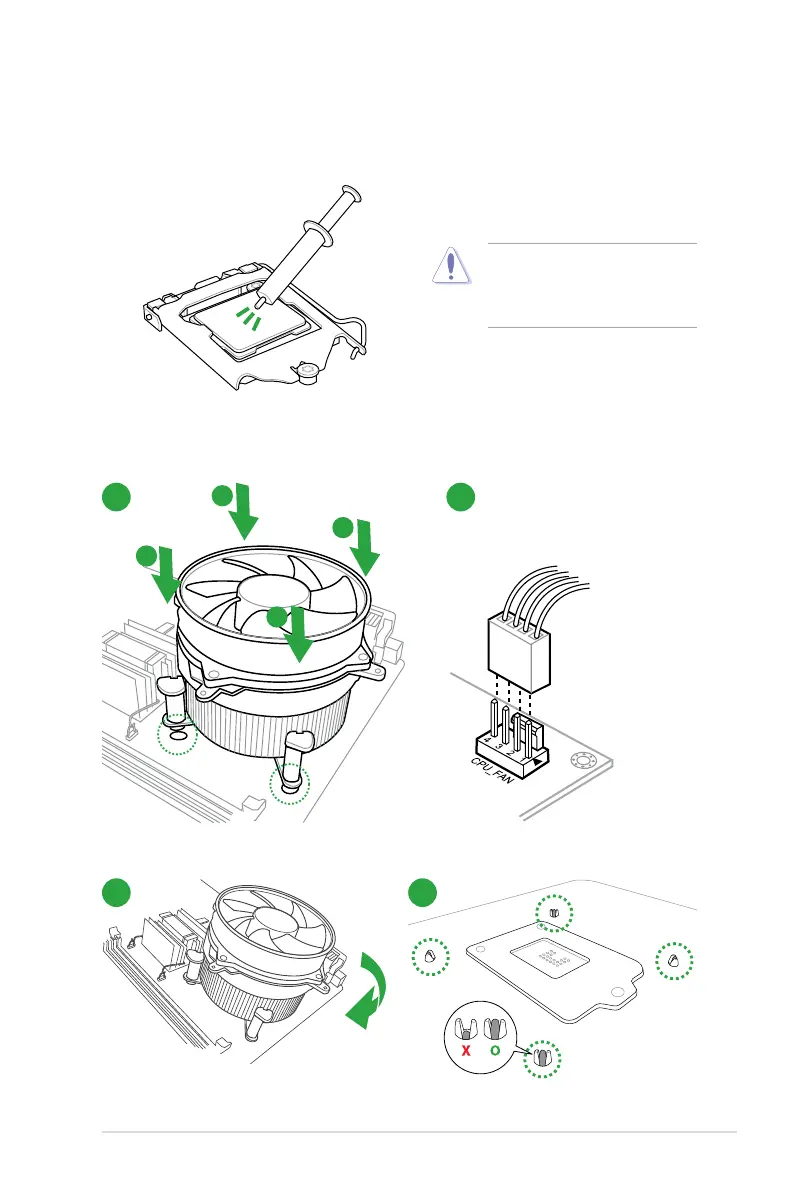

To install the CPU heatsink and fan assembly
2
B
A
A
B
3
1
4
