Asus P8H61-I LX R2.0 User Manual

ASUS P8H61-I LX R2.01-22
9. System panel connector (10-1 pin PANEL)
This connector supports several chassis-mounted functions.
• System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
• Hard disk drive activity LED (2-pin +HDLED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or ashes when data is read from or written to
the HDD.
• Power/Soft-off button (2-pin PWRBTN)
This 2-pin connector is for the system power button.
• Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.
P8H61-I LX R2.0

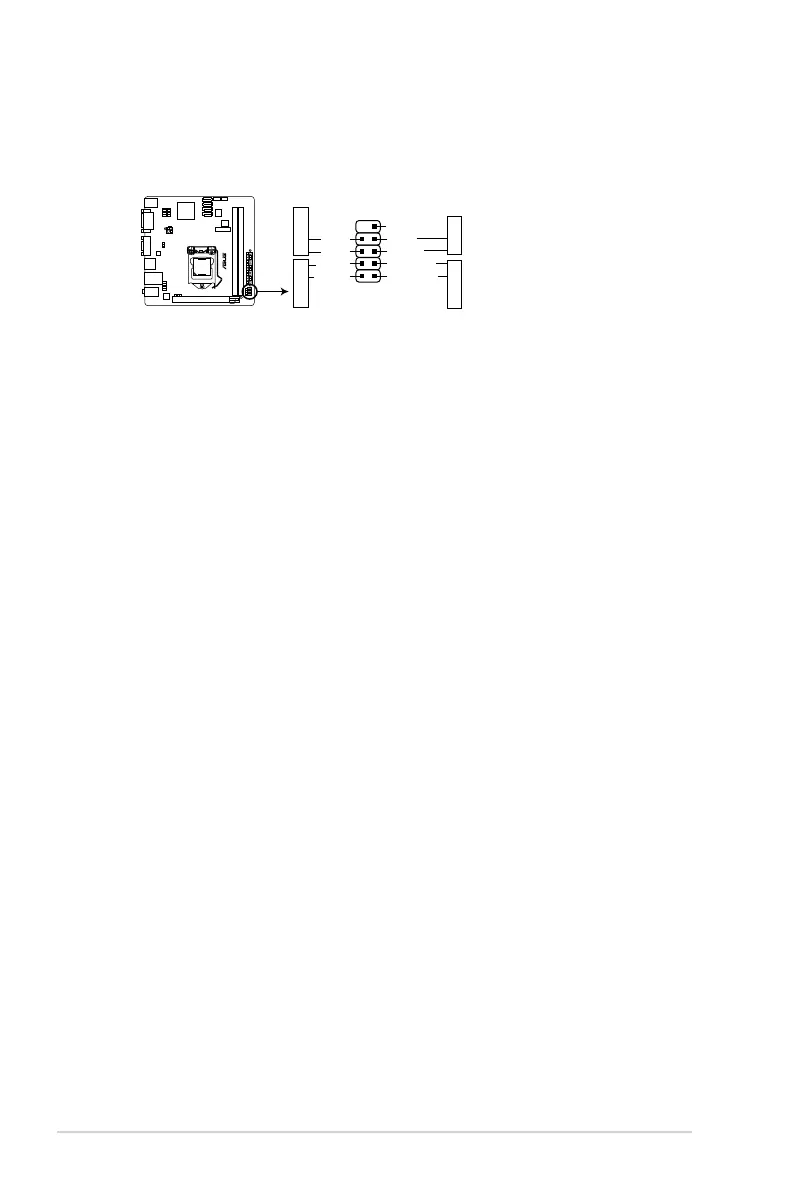

P8H61-I LX R2.0 System panel connector
PIN 1
PWR BTN
GND
PWR
PLED-
PLED+
Reset
Ground
HD_LED-
HD_LED+
F_PANEL
PWR LED
+HD_LED RESET

Asus P8H61-I LX R2.0 Specifications

General

Form Factor	Mini ITX
Chipset	Intel H61
CPU Socket	LGA 1155
Memory Slots	2
Memory Type	DDR3
Maximum Memory	16 GB
PCIe x16 Slots	1
SATA Ports	4 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Video Outputs	1 x DVI, 1 x HDMI
LAN	Realtek 8111E Gigabit LAN Controller
USB Ports	8 x USB 2.0
