1.4 Central Processing Unit (CPU)
The motherboard comes with a surface mount LGA1155 socket designed for the Intel
®
2nd/3rd Generation Core™ i7 / Core™ i5 / Core™ i3, Pentium
®
, and Celeron
®
processors.
Unplug all power cables before installing the CPU.
• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and
the socket contacts are not bent. Contact your retailer immediately if the PnP cap
is missing, or if you see any damage to the PnP cap/socket contacts/motherboard
components. ASUS will shoulder the cost of repair only if the damage is shipment/
transit-related.
• Keep the cap after installing the motherboard. ASUS will process Return Merchandise
Authorization (RMA) requests only if the motherboard comes with the cap on the
LGA1155 socket.
• The product warranty does not cover damage to the socket contacts resulting from
incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP
cap.

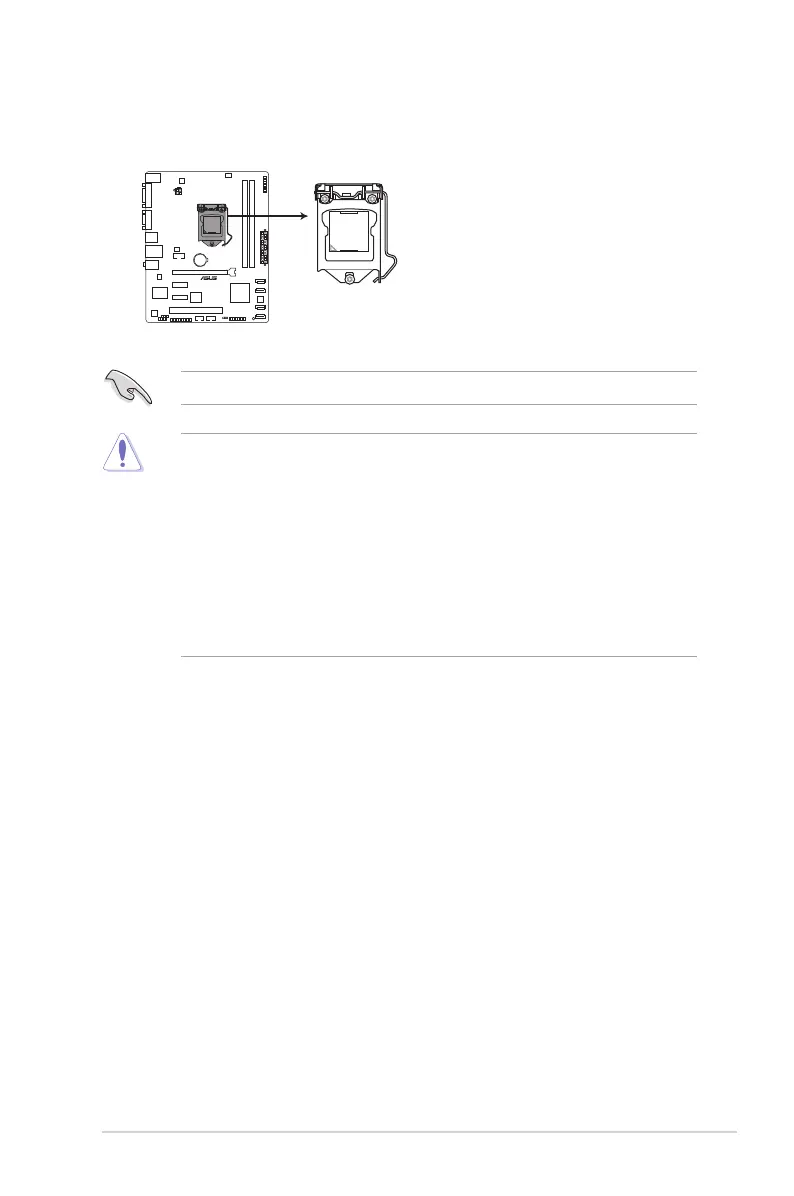

P8H61-M LE R2.0
P8H61-M LE R2.0 CPU socket LGA1155

Asus P8H61-M LE/CSM R2.0 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
CPU Socket	LGA 1155
Maximum Memory	16GB
Memory Type	DDR3
PCIe x16 Slots	1
PCIe x1 Slots	2
PCI Slots	1
SATA Ports	4 x SATA 3Gb/s
USB Ports (Rear)	4 x USB 2.0
Audio Chipset	Realtek ALC887
RAID Support	No
Memory Slots	2
Memory Standard	DDR3 1333/1066 MHz
USB Ports	10
USB Ports (Front)	6 x USB 2.0
Video Outputs	D-Sub
Audio	8-Channel
LAN	Realtek 8111E, 1 x Gigabit LAN Controller
