ASUS P8H61-M LE R2.0
1-31

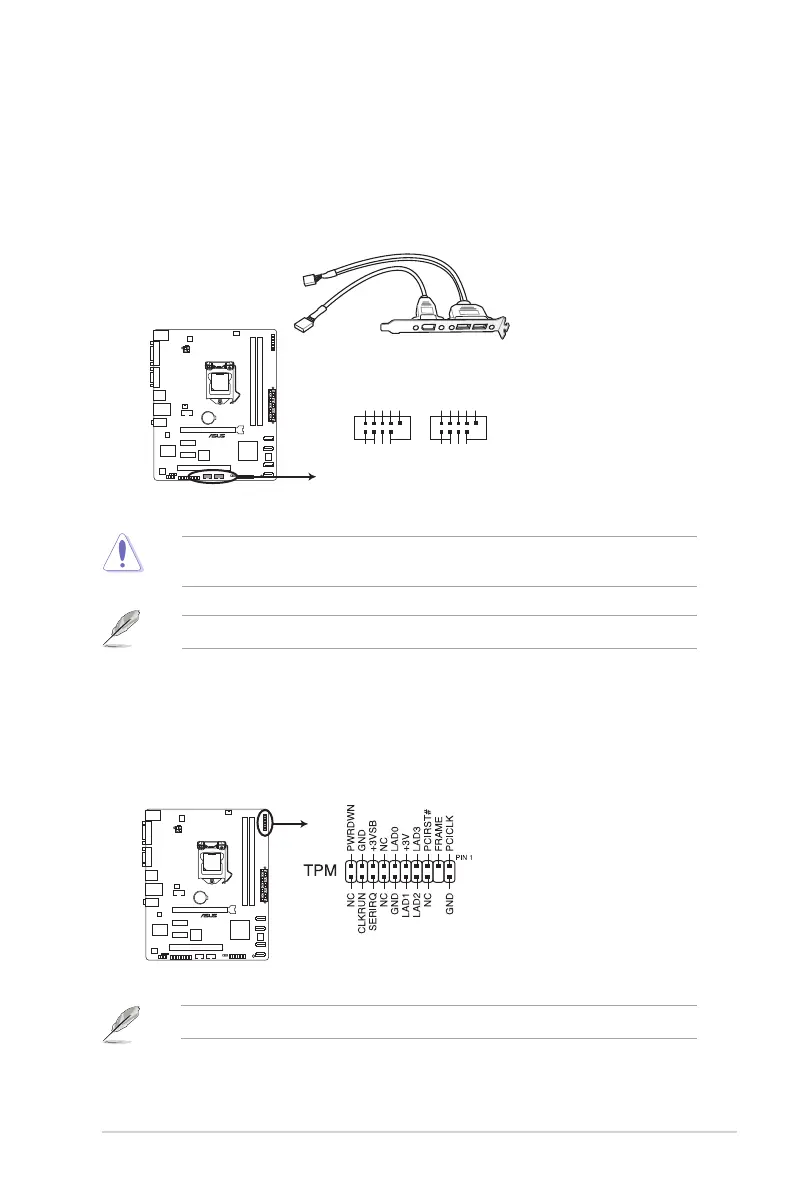

8. USB connectors (10-1 pin USB78, USB910)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specication that supports up to
480 Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB module cable is purchased separately.
P8H61-M LE R2.0
USB+5V USB_P8- USB_P8+ GND NC
USB+5V
USB_P7-
USB_P7+
GND
USB78
PIN 1
USB+5V USB_P10- USB_P10+ GND NC
USB+5V
USB_P9-
USB_P9+
GND
USB910
PIN 1
P8H61-M LE R2.0 USB2.0 connectors
9. TPM connector (20-1 pin TPM) [Optional]
This connector supports a Trusted Platform Module (TPM) system, which securely
store keys, digital certicates, passwords and data. A TPM system also helps enhance
network security, protect digital identities, and ensures platform integrity.
TPM module is purchased separately.
P8H61-M LE R2.0
P8H61-M LE R2.0 TPM connector

Asus P8H61-M LE/CSM R2.0 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
CPU Socket	LGA 1155
Maximum Memory	16GB
Memory Type	DDR3
PCIe x16 Slots	1
PCIe x1 Slots	2
PCI Slots	1
SATA Ports	4 x SATA 3Gb/s
USB Ports (Rear)	4 x USB 2.0
Audio Chipset	Realtek ALC887
RAID Support	No
Memory Slots	2
Memory Standard	DDR3 1333/1066 MHz
USB Ports	10
USB Ports (Front)	6 x USB 2.0
Video Outputs	D-Sub
Audio	8-Channel
LAN	Realtek 8111E, 1 x Gigabit LAN Controller
