Asus P8H61-M LX PLUS R2.0 User Manual

1-13Chapter 1: Product introduction
1.6.2 Installing the CPU heatsink and fan
The Intel
®
LGA1155 processor requires a specially designed heatsink and fan assembly to
ensure optimum thermal condition and performance.
• When you buy a boxed Intel
®
processor, the package includes the CPU fan and
heatsink assembly. If you buy a CPU separately, ensure that you use only Intel
®
-certied
multi-directional heatsink and fan.
• Your Intel
®
LGA1155 heatsink and fan assembly comes in a push-pin design and
requires no tool to install.
• Use a LGA1155-compatible CPU heatsink and fan assembly only. The LGA1155 socket
is incompatible with the LGA775 and LGA1366 sockets in size and dimension.
Ensure that you have installed the motherboard to the chassis before you install the CPU
fan and heatsink assembly.
The type of CPU heatsink and fan assembly may differ, but the installation steps and
functions should remain the same. The illustration above is for reference only.

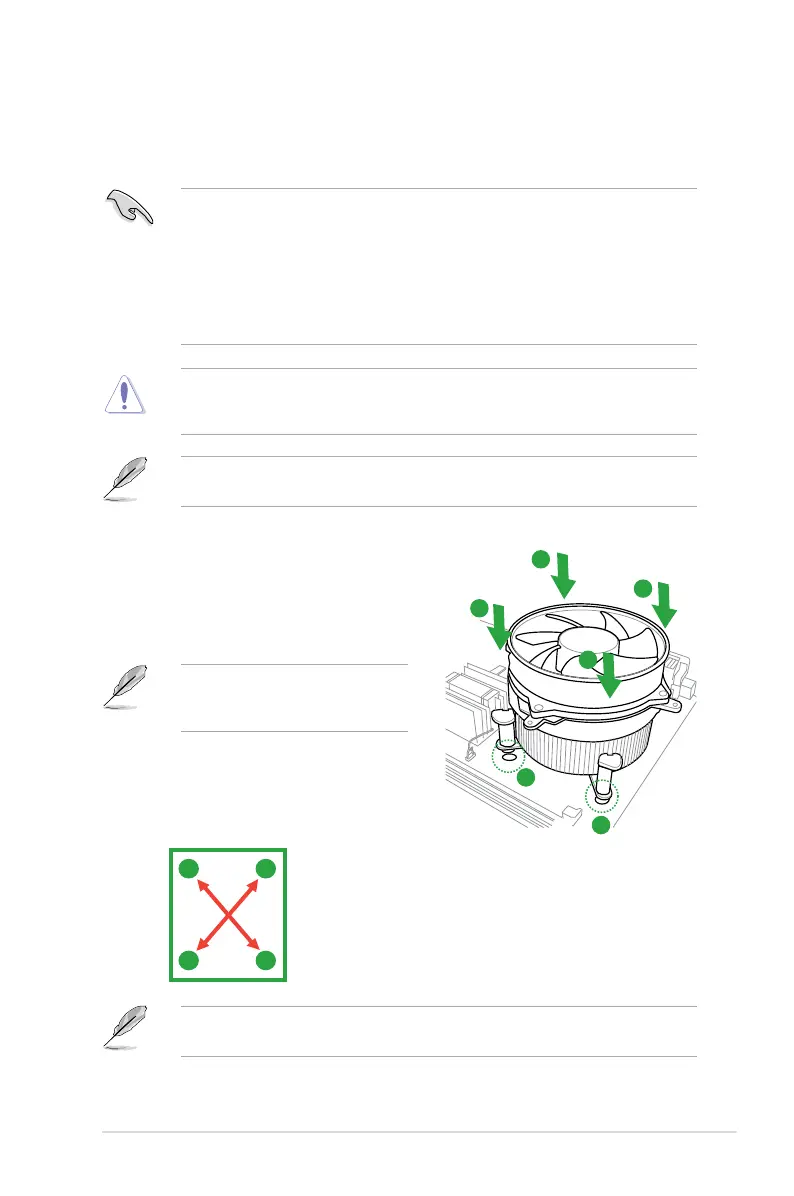

To install the CPU heatsink and fan:
1. Place the heatsink on top of the installed
CPU, ensuring that the four fasteners
match the holes on the motherboard.
A
A
B
B
1
1
A
B
B
A
2. Push down two fasteners at a time in a
diagonal sequence to secure the heatsink
and fan assembly in place.
Orient the heatsink and fan assembly
such that the CPU fan cable is closest
to the CPU fan connector.
If you purchased a separate CPU heatsink and fan assembly, ensure that you have
properly applied Thermal Interface Material to the CPU heatsink or CPU before you install
the heatsink and fan assembly.

Asus P8H61-M LX PLUS R2.0 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Number of SATA II connectors	4
Number of Parallel ATA connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II
Maximum resolution	2048 x 1536 pixels
PCI Express x1 slots	3
PCI Express slots version	2.0, 3.0
Networking features	Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	183 mm
Width	244 mm
