ASUS P8H61-M LX2 R2.0 1-26

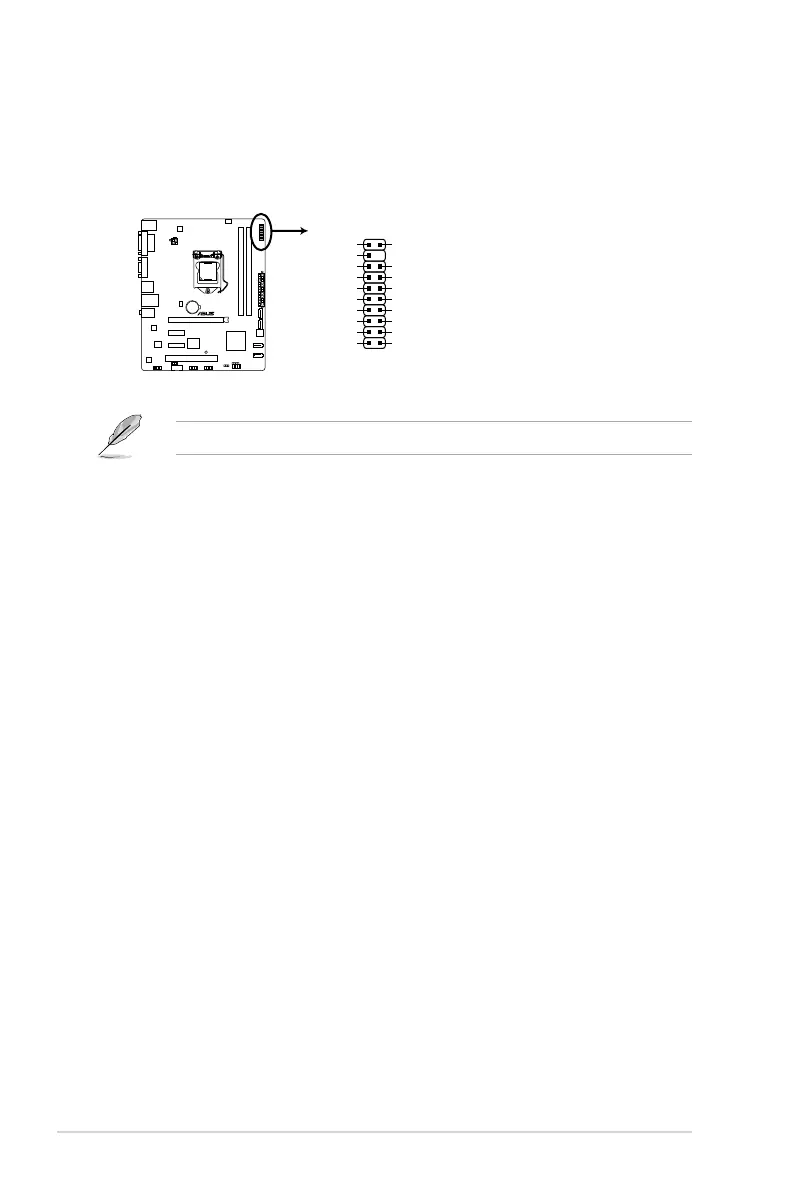

10. TPM connector (20-1 pin TPM)
This connector supports a Trusted Platform Module (TPM) system, which can securely
store keys, digital certicates, passwords, and data. A TPM system also helps enhance
network security, protects digital identities, and ensures platform integrity.
The TPM module is purchased separately!
P8H61-M LX2 R2.0
P8H61-M LX2 R2.0 TPM Connector
PIN 1
TPM
PCICLK
FRAME
PCIRST#
LAD3
+3V
LAD0
SMBSCL
+3VSB
GND
SB_SUS_STAT
GND
PWROWN
LAD2
LAD1
GND
SMBSDA
SERIRQ
GPIO
RESET
