2-24 ASUS P8H61-M LX2 R2.0

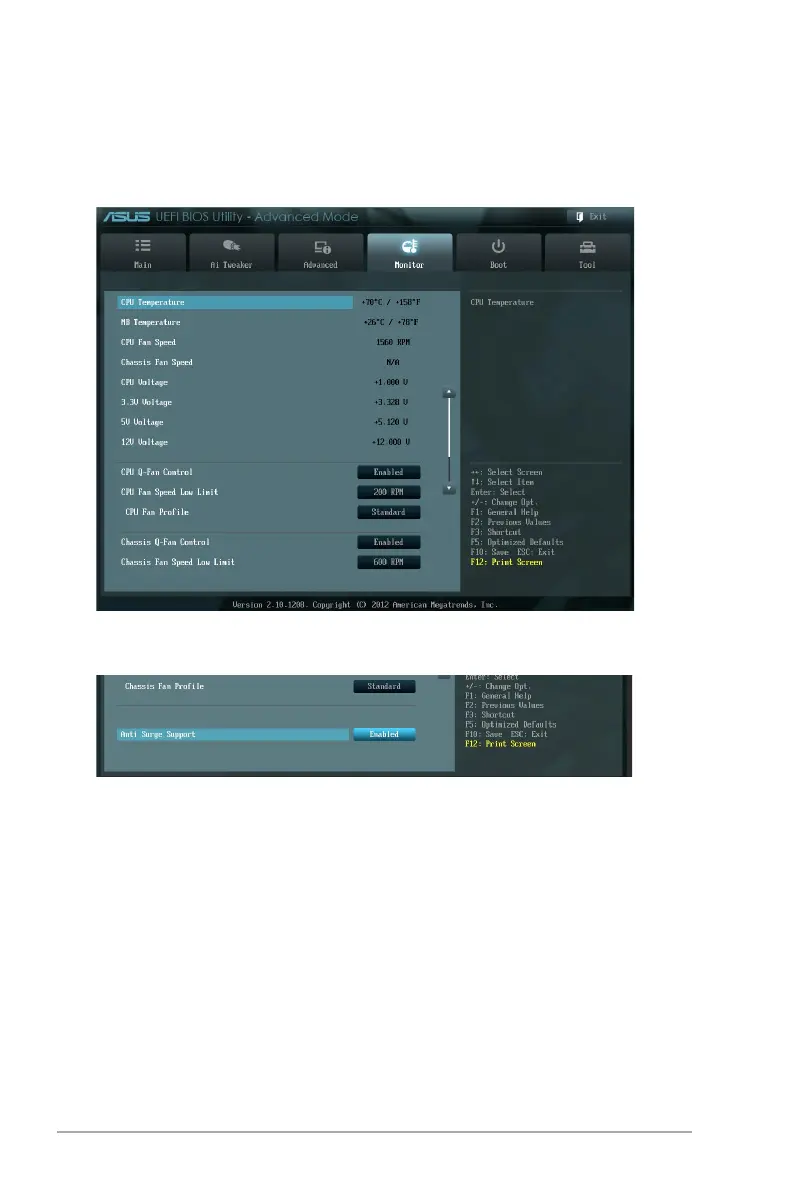

2.6 Monitor menu
The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
Scroll down to display the following items:
2.6.1 CPU Temperature / MB Temperature [xxx�C/xxx�F][xxx�C/xxx�F]
The onboard hardware monitor automatically detects and displays the CPU and motherboard
temperatures. Select Ignore if you do not wish to display the detected temperatures.
2.6.2 CPU / Chassis Fan Speed [xxxx RPM] or [Ignore] / [N/A]
The onboard hardware monitor automatically detects and displays the CPU and chassis fan
speeds in rotations per minute (RPM). If the fan is not connected to the motherboard, the eld
shows N/A. Select Ignore if you do not wish to display the detected speed.

Asus P8H61-M LX2 R2.0 Specifications

General

Non-ECC	Yes
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2000, 2133, 2200 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	4
Number of EATX power connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	6
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II
Parallel processing technology support	-
Cables included	SATA
LAN controller	Realtek RTL8111F
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	198.2 mm
Width	244 mm
