Asus P8H61-M PLUS2 User Manual

1-5Chapter 1: Product introduction

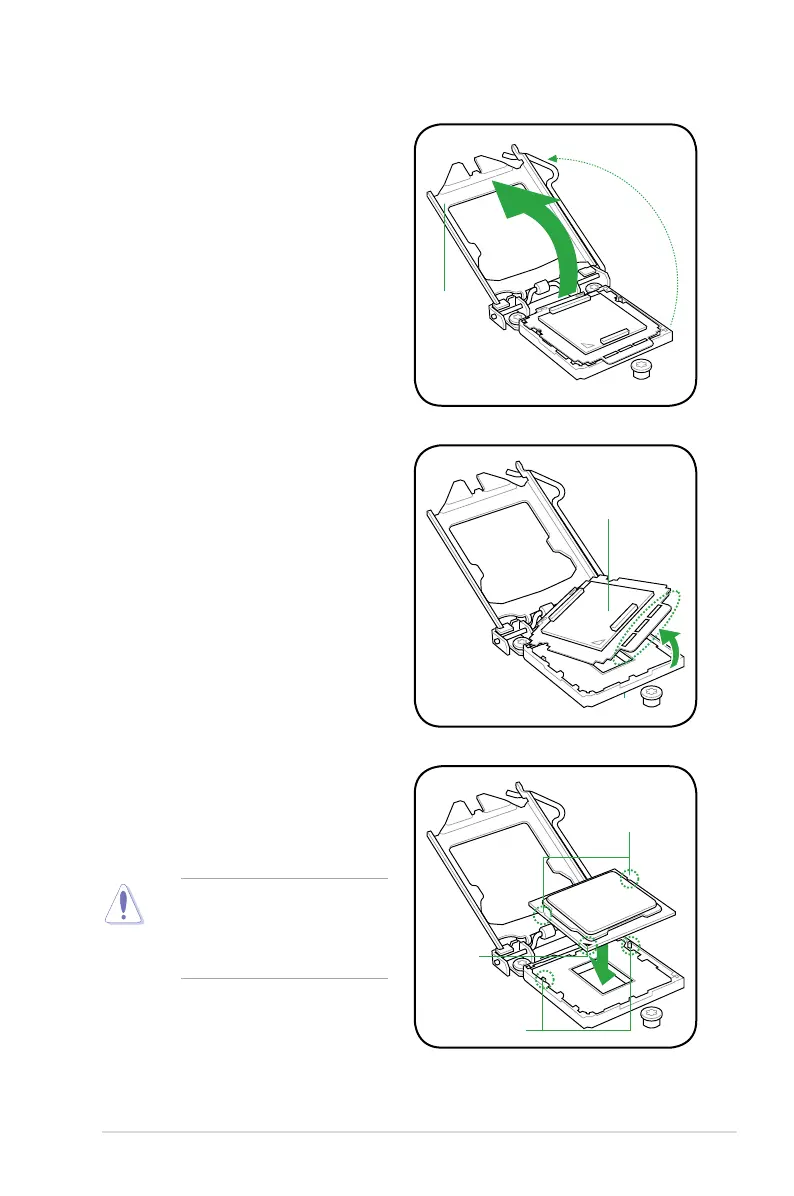

3. Lift the load lever in the direction of the
arrow until the load plate is completely
lifted.
Load plate
4. Remove the PnP cap from the CPU
socket by lifting the tab only.
The CPU ts in only one correct
orientation. DO NOT force the CPU
into the socket to prevent bending
the connectors on the socket and
damaging the CPU!
Gold
triangle
mark
Alignment keys
CPU notches
5. Position the CPU over the socket,
ensuring that the gold triangle is on the
bottom-left corner of the socket, and
then t the socket alignment keys into
the CPU notches.
PnP cap

Asus P8H61-M PLUS2 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Slots	2 x DIMM
Maximum Memory	16 GB
Memory Type	DDR3
Storage Interface	4 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
LAN	Realtek 8111E , 1 x Gigabit LAN Controller(s)
RAID Support	No
Expansion Slots	2 x PCIe 2.0 x1
USB Ports	8 x USB 2.0
Video Outputs	1 x DVI
